Summary of Contents for Antec NSK 4480

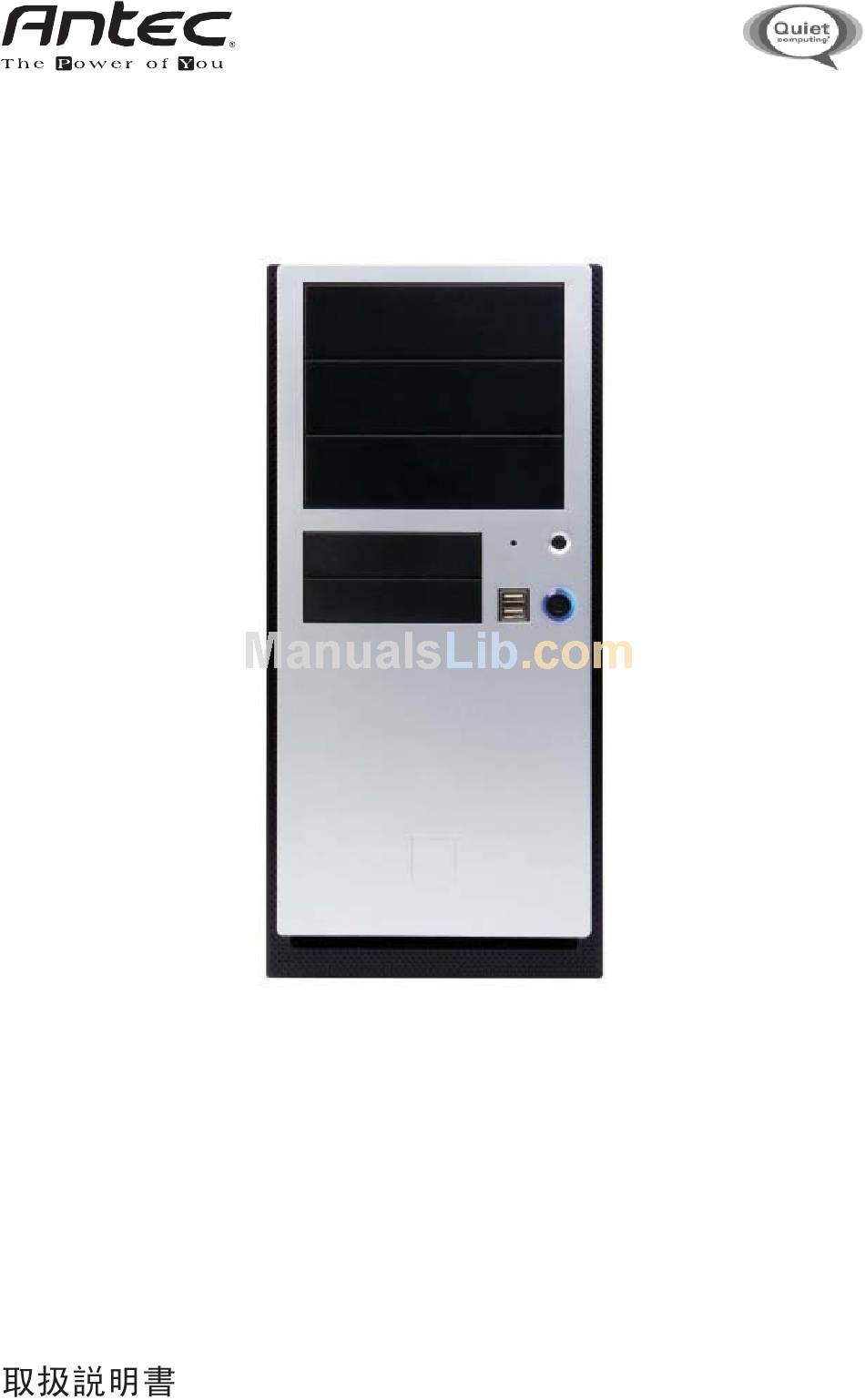

- Page 1 New Solution Series NSK 4000 / 4480 / 4480B User’s Manual Manuel de l’utilisateur Anwenderhandbuch Manuale per l’operatore Manual del usuario...
- Page 2 Disclaimer This manual is intended only as a guide for Antec’s Computer Enclosures. For more comprehensive instructions on installing the motherboard and peripherals, please refer to the user’s manuals that come with those components.
- Page 3 Although care has been taken to prevent sharp edges in your Antec case, we strongly recommend taking your time and the appropriate care when working with it. Hurried or careless motion and use of excessive force, particularly when you are working in areas you cannot see clearly, are but a few examples of activity that should be avoided.
- Page 4 Note: Please check the motherboard manual for the USB header pin layout and make sure it matches the table below. If it does not match this Intel® standard, please visit Antec’s web store at http://www.antec.com/StoreFront.bok and search for part number 30095 to order a USB Internal Adapter Cable. This adapter will allow you to connect the front USB to your motherboard on a pin-by-pin basis.
- Page 5 5.25” Device Installation There are three external 5.25” drive bays. Looking from the rear of the case you can see metal grilles covering the 5.25” drive bays. Carefully push a screwdriver through the metal grille and gently push the plastic drive bay cover outwards until it comes off. Using your hands, twist the metal plate back and forth until it breaks off.
- Page 6 High if you choose to connect the fan to a fan control device or to the Fan-Only connector found on some of Antec’s power supplies. A fan-control device regulates the fan speed by varying the voltage to it.
- Page 7 Run Cool, Run Reliably, Run with 80 PLUS® Energy Efficient® More than 80% efficient at 20%, 50% & 100% load www.80PLUS.org System Integrators / VAR’s for more information on 80 PLUS® financial and marketing advantages in North America go to www.antec.com/us/80Plus.html.
-
Page 8: Customer Support
1-800-22ANTEC customersupport@antec.com Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2007 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China.
