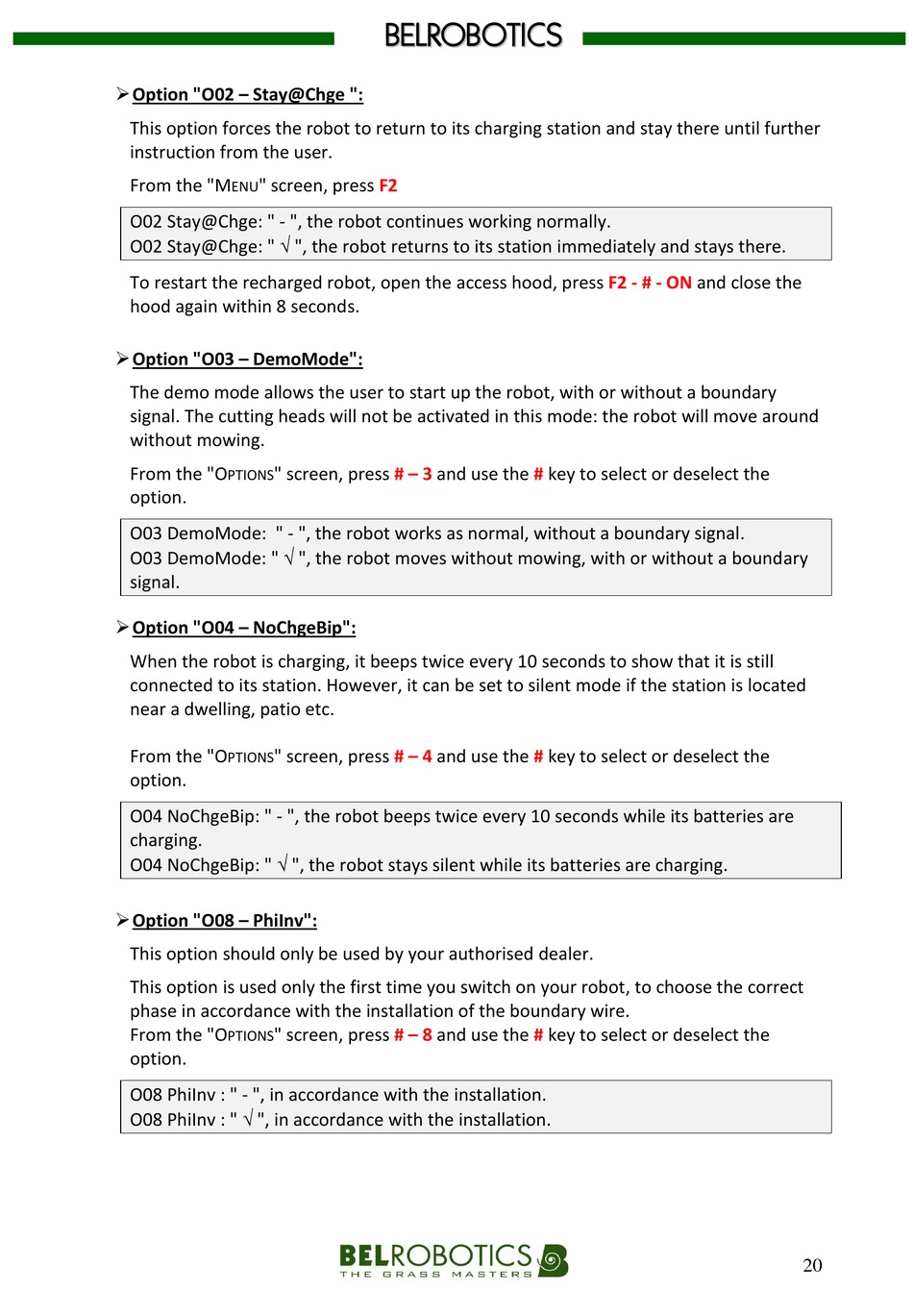

Belrobotics ParcMow Instruction Manual page 20

 Option "O02 – Stay@Chge ":
This option forces the robot to return to its charging station and stay there until further
instruction from the user.
From the "M " screen, press
ENU
O02 Stay@Chge: " - ", the robot continues working normally.
O02 Stay@Chge: " ", the robot returns to its station immediately and stays there.
To restart the recharged robot, open the access hood, press
hood again within 8 seconds.
 Option "O03 – DemoMode":
The demo mode allows the user to start up the robot, with or without a boundary
signal. The cutting heads will not be activated in this mode: the robot will move around
without mowing.
From the "O " screen, press
PTIONS
option.
O03 DemoMode: " - ", the robot works as normal, without a boundary signal.
O03 DemoMode: " ", the robot moves without mowing, with or without a boundary
signal.
 Option "O04 – NoChgeBip":
When the robot is charging, it beeps twice every 10 seconds to show that it is still
connected to its station. However, it can be set to silent mode if the station is located
near a dwelling, patio etc.
From the "O " screen, press
PTIONS
option.
O04 NoChgeBip: " - ", the robot beeps twice every 10 seconds while its batteries are
charging.
O04 NoChgeBip: " ", the robot stays silent while its batteries are charging.
 Option "O08 – PhiInv":
This option should only be used by your authorised dealer.
This option is used only the first time you switch on your robot, to choose the correct
phase in accordance with the installation of the boundary wire.
From the "O " screen, press
PTIONS
option.
O08 PhiInv : " - ", in accordance with the installation.
O08 PhiInv : " ", in accordance with the installation.
B E L R O B O T I C S
B E L R O B O T I C S
F2
# – 3 and use the # key to select or deselect the
# – 4 and use the # key to select or deselect the
# – 8 and use the # key to select or deselect the
F2 - # - ON and close the
20
