Integrated Use & Care

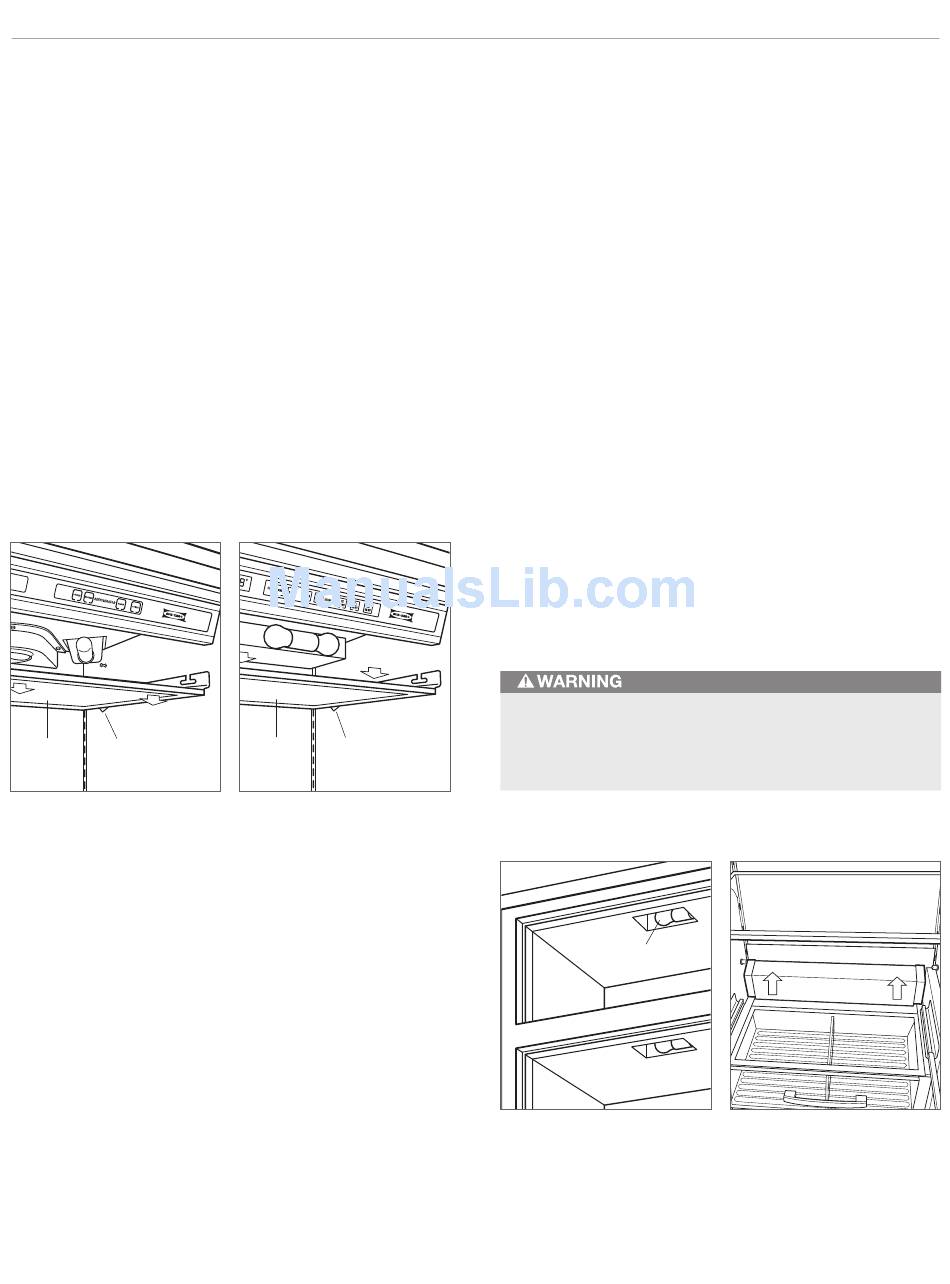

Lighting Information
CABINET LIGHTING
Cabinet lighting for integrated column and tall models use
standard 40-watt appliance bulbs.
To replace the light bulbs, you must first remove the light
shield. Place your hands under the light shield and release
the two clips on the back, then lift up and slide back
slowly until the key slots on the side of the light shield
drop past the mounting studs in the side walls. Remove
the light shield. The bulbs are now accessible. Replace the
bulbs and follow the reverse steps to reposition the light
shield. Refer to the illustrations below.
LIGHT LOCKING CLIP
SHIELD
Cabinet lighting (column
model).
LIGHT LOCKING CLIP
SHIELD
Cabinet lighting (tall model).
DRAWER LIGHTING
Each drawer compartment has a standard 25-watt
appliance bulb recessed into the top of the compartment.
Refer to the illustration below.
To replace the light bulb, pull the drawer out to its full
extension or remove the drawer completely. Refer to
drawer removal on page 15. Replace the bulb and follow
the reverse steps to reinstall the drawer.
CRISPER LIGHTING (MODEL IC-27R)
Crisper drawer lighting for model IC-27R is located behind
the upper crisper drawer and mounted to the back wall of
the refrigerator. To remove the light shield, first remove the
crisper drawer. Next, remove the upper crisper shelf. Then
place both hands under the bottom right and left sides of
the light shield and push upward. Refer to the illustration
below.
Shut off power to the unit at the circuit breaker before
replacing light bulbs. Wear protective gloves when
handling bulbs.
RECESSED BULB
Drawer lighting.
subzero.com
Light shield removal (IC-27R).
