Your Chair And Its Parts - Quickie 2 Owner's Manual

E N G L I S H
12
14
13
17

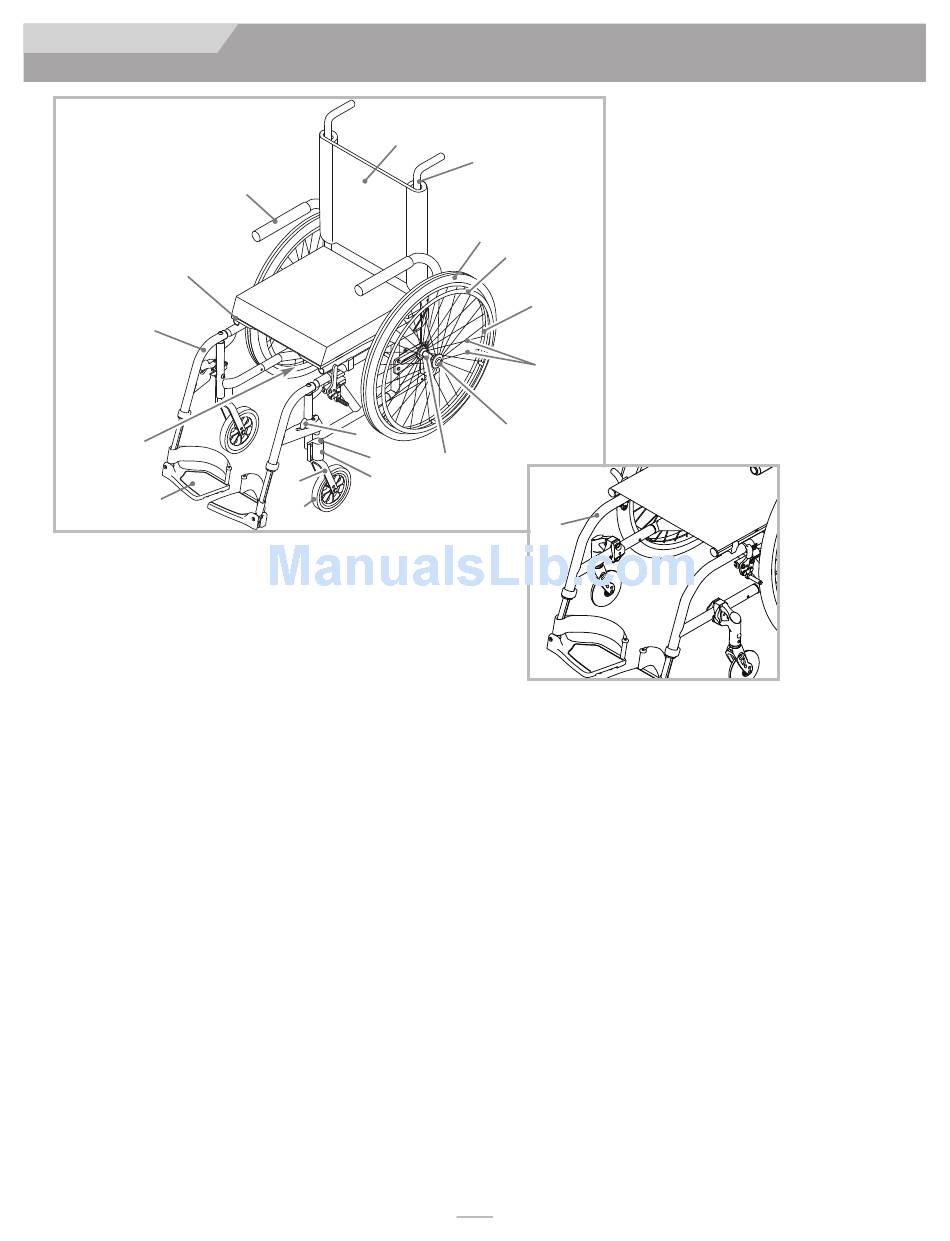

QUICKIE 2 – SWING-AWAY FOOTREST
1. Backrest Tube
2. Backrest
3. Pneumatic Tire
4. Aluminum Handrim
5. Aluminum Wheel Rim
6. Spokes
7. Rear Wheel Hub
8. Quick-Release Axle
9. Swing-Away Latch Release
10. Caster Housing Cap
11. Caster Housing
12. Seat Sling
13. X-Hinge (not shown– under seat)
14. Swing-In / Swing-Out Legrest
15. Caster Fork
16. Caster Tire
17. Flip-Up Footrest with Heel Loops
18. Anti-tip tube (not shown)
19. Padded Swing-Away Armrest
20. Fixed Front (Q2 HP)
109881 Rev. B
2
19
9
10
11
15
16
I I I . YO U R C H A I R A N D I T S PA RT S
1
3
4
5
6
8
7
20
FIXED FRONT (Q2 HP)
4
