N.depth Adjustable Back - Quickie 2 Owner's Manual

E N G L I S H
N. DEPTH ADJUSTABLE BACK
1. Backrest/Stroller Handles

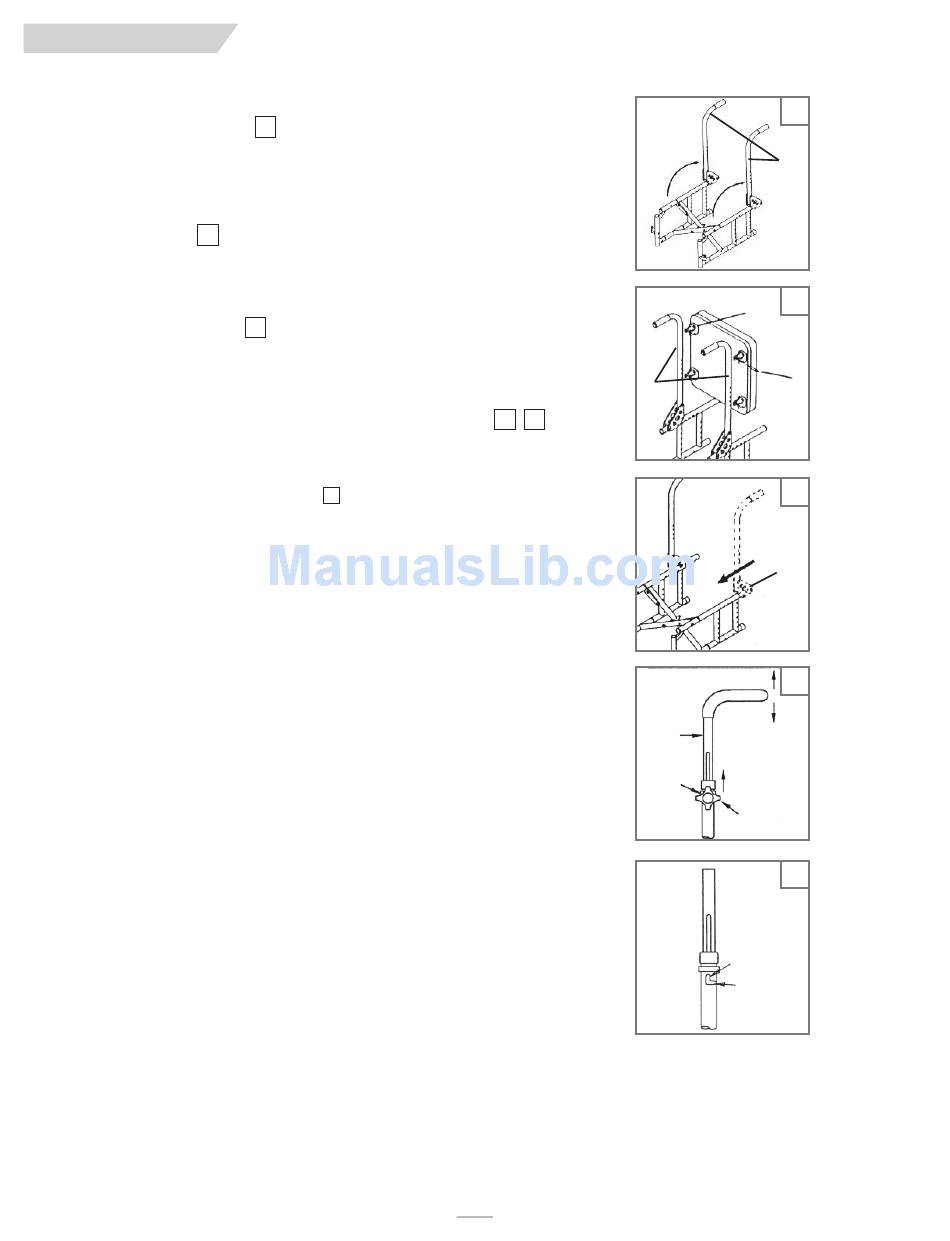

Quickie 2 wheelchairs with depth adjustable backs are shipped with the backrest/stroller handles (A) in a
folded position. To secure backrest/stroller handles, lift backrest/stroller handles to upright position.
When secured, backrest release pin will lock into place.
26
2. Solid Back Insert
Place the solid back hook clamps (B) on the stroller handles (A). Insert the quick release pins (C) through
the mounting holes on the top two hook clamps.
3. Back Depth Adjustment
The solid back can be moved forward or rearward by repositioning the backrest pivot plate (D) in the
pre-drilled holes on the frame.
4. Positioning Swing-Away Adjustable Stroller Handles
Loosen push handle (F) by turning knob (E) counter-clockwise. Raise or lower push handle (F) to desired
height. While holding push handle (F) in one hand, raise retaining ring (G) with knob (E) upward into
locking slot with other hand.
NOTE: Locking slot is hidden under retaining ring
handle cannot rotate. Dropping into lower slot ( I ) allows push handle to swing in. To secure push
handle, turn knob clockwise.
NOTE: For easy storage and portability, push handles will swing in and stroller handles fold flat.
25
27
(optional)
29
. When knob is raised into locking slot (H) push
A
28 29
19
25
A
26
B
C
27
D
28
F
G
E
29
H
I
I X .
109881 Rev. B
