National Instruments NI 653x User Manual

Cable adapter
Hide thumbs Also See for NI 653x:
Table of Contents

Advertisement

Quick Links

USER GUIDE
NI 653x Cable Adapter
Contents

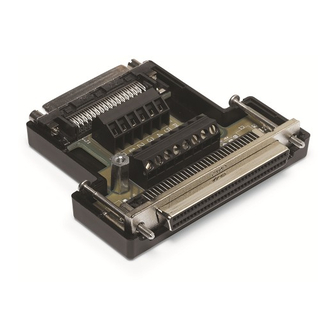

The NI 653x cable adapter interfaces with National Instruments high-speed
digital I/O (DIO) devices. The cable adapter provides an easy way to
connect the Very High Density Connector Interface (VHDCI) connectors,
labeled as Digital Data & Control, on the newer NI 6535/6536/6537
devices to the 68-pin DAQ connectors found on older NI 6533/6534
accessories and fixturing. The 653x cable adapter is also compatible with
the NI 654x and NI 655x digital pattern generator/analyzer devices.
For best signal integrity, NI recommends using the NI 6535/6536/6537
devices with newer accessories such as the NI CB-2162 and NI SMB-2163.
This guide explains how to set up and use the NI 653x cable adapter.
What You Need to Get Started ............................................................... 2
Related Documentation........................................................................... 2
Parts Locator Diagram ............................................................................ 3
Installing Cables...................................................................................... 4
Connecting Signals ................................................................................. 6
Custom Wiring Example ................................................................. 11
Specifications .......................................................................................... 13
Digital I/O ........................................................................................ 13
Traces............................................................................................... 13
Power ............................................................................................... 13
Physical ............................................................................................ 13
Where to Go for Support......................................................................... 14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NI 653x and is the answer not in the manual?

Questions and answers

Related Manuals for National Instruments NI 653x

Summary of Contents for National Instruments NI 653x

  • Page 1: Table Of Contents

    For best signal integrity, NI recommends using the NI 6535/6536/6537 devices with newer accessories such as the NI CB-2162 and NI SMB-2163. This guide explains how to set up and use the NI 653x cable adapter. Contents What You Need to Get Started ............... 2 Related Documentation................

  • Page 2: What You Need To Get Started

    What You Need to Get Started To set up and use the NI 653x cable adapter, you need the following items: ❑ NI SHC68-C68-D2 or NI C68-C68-D4 cable assembly (for NI 6535/6536/6537/654x/655x devices) ❑ Compatible NI high-speed digital I/O device (NI 6535/6536/6537/654x/655x) ❑...

  • Page 3: Parts Locator Diagram

    Parts Locator Diagram Refer to Figure 1 to locate connectors and components on the NI 653x cable adapter. 1 Enclosure Base 5 M2.5 x 6 mm Philips Flathead Countersunk Screws 2 Jacksockets (M2.5 Screw, #2-56 Socket) 6 Terminal Connectors 3 68-Pin DAQ Connector...

  • Page 4: Installing Cables

    Installing Cables An SHC68-C68-D2 or C68-C68-D4 cable connects the NI 653x cable adapter to the NI high-speed DIO device. Figure 2 shows how to install the cable. DIGITAL DATA & CONTROL 1 PC Chassis with NI High-Speed DIO Device 3 Cable Jackscrews...

  • Page 5: Removing The Ni 653X Cable Adapter From Its Enclosure

    Removing the NI 653x Cable Adapter from its Enclosure You will need to remove the NI 653x cable adapter from its enclosure to connect signals. To remove the cable adapter from its enclosure, complete the following steps: Remove the screws from the cable adapter enclosure top cover, as shown in Figure 3.

  • Page 6: Connecting Signals

    Connecting Signals The NI 653x cable adapter provides connectivity to up to 32 of the single-ended DIO channels of an NI high-speed DIO device. Each DIO, PFI, and clock channel of the NI high-speed DIO device connects to a corresponding pin on the NI 653x cable adapter. The 32 DIO channels are directly connected between the two bulk connectors.
  • Page 7 DIO 5 DIO 4 DIO 3 DIO 2 PFI 3 PFI 2 DIO 1 DIO 0 DDC CLK OUT/PFI_4 STROBE/PFI_5 Figure 5. VHDCI Connector Pinout (NI SHC68-C68-D2 or NI C68-C68-D4 Cable) © National Instruments Corporation NI 653x Cable Adapter User Guide...
  • Page 8 R GND P1.4 P1.5 P1.6 P1.7 R GND P2.0 P2.1 P2.2 P2.3 P2.4 P2.5 P2.6 P2.7 P3.0 P3.1 P3.2 P3.3 P3.4 P3.5 P3.6 P3.7 Figure 6. 68-pin DAQ Connector (NI 6533/6534 Fixture or Accessory) NI 653x Cable Adapter User Guide ni.com...
  • Page 9 The NI 6535/6536/6537/654x/655x does not provide +5 V. If your fixtures require Note this, access to the +5 V signal on the DAQ connector is provided through the unpopulated W1 through-hole solder pad. © National Instruments Corporation NI 653x Cable Adapter User Guide...
  • Page 10 Connections that exceed any of the maximum ratings for the NI 653x cable Caution adapter or the NI high-speed DIO device can damage the device and the computer. Maximum input ratings are provided in the Specifications section and in the specifications document that shipped with the NI high-speed DIO device.

  • Page 11: Custom Wiring Example

    NI 6533/6534. Without changing the fixture setup, the adapter and software can be changed to maintain functionality. The NI 653x cable adapter can be configured using 22- to 26-gauge wire as shown in Figure 7.
  • Page 12 NI 653x cable adapter connections and provide compatibility with the previous application using an NI 6535/6536/6537 instead of an NI 6533/6534. Figure 9. NI 653x Burst Handshaking Application with NI 653x Cable Adapter and NI 6535/6536/6537 (Changes Circled) NI 653x Cable Adapter User Guide...

  • Page 13: Specifications

    When connected to other test objects, this product may cause radio interference. In a residential environment, the user may be required to take adequate measures to reduce the radio interference. © National Instruments Corporation NI 653x Cable Adapter User Guide...

  • Page 14: Where To Go For Support

    Where to Go for Support The National Instruments Web site is your complete resource for technical support. At you have access to everything from ni.com/support troubleshooting and application development self-help resources to email and phone assistance from NI Application Engineers.
  • Page 15 Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National Instruments products, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your CD, or ni.com/patents.
