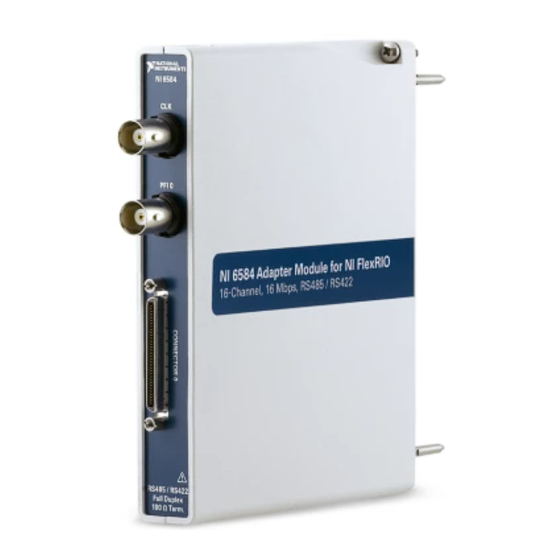

National Instruments NI 6584R User Manual And Specifications
  1. Manuals
  2. Brands
  3. National Instruments Manuals
  4. Adapter
  5. NI 6584R
  6. User manual and specifications

National Instruments NI 6584R User Manual And Specifications

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NI-6584

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NI 6584R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for National Instruments NI 6584R

Summary of Contents for National Instruments NI 6584R

  • Page 1 NI-6584...

  • Page 2: Table Of Contents

    LabVIEW FPGA example VI and how to create and run your own LabVIEW project with the NI 6584R. The NI 6584 comes in full duplex and half duplex versions, each with or without termination. The full duplex version has separate RX (receive) and TX (transmit) pins for acquisition and generation, respectively.

  • Page 3: Connecting Signals

    TX_4+ 44 10 TX_12+ RX_7+ RX_15+ RS485/RS422 TX_6– TX_14– Full Duplex RX_6– RX_14– TX_7+ TX_15+ RX_6+ RX_14+ RX_15– RX_7– TX_7– TX_15– TX_14+ TX_6+ Figure 2. NI 6584 Connector 0 Pin Assignments (Full Duplex) NI 6584R User Guide and Specifications ni.com...
  • Page 4 Connections that exceed any of the maximum ratings of input or output signals on the NI 6584R can damage the device and the chassis. NI is not liable for any damage resulting from such signal connections. For the maximum input and output ratings for each signal, refer to the Specifications section of this document.

  • Page 5: Cables

    Connector 0 (Ports 1–8) and then fanning out to display each of its eight, nine-pin port connectors. 1 NI 6584 adapter module 2 NI VHDCI to Eight DB9 cable (197546-01) Figure 4. NI 6584 and NI VHDCI to Eight DB9 Cable NI 6584R User Guide and Specifications ni.com...
  • Page 6 RX_2+ RX_4+ RX_6+ RX_8+ RX_10+ RX_12+ RX_14+ TX_0–/ TX_2–/ TX_4–/ TX_6–/ TX_8–/ TX_10–/ TX_12–/ TX_14–/ RX_0– RX_2– RX_4– RX_6– RX_8– RX_10– RX_12– RX_14– GND = Ground NC = No connect © National Instruments Corporation NI 6584R User Guide and Specifications...

  • Page 7: Fpga

    FPGA Table 3 lists the NI 6584 connector signals and the corresponding NI FlexRIO FPGA module signals necessary for designing a custom component-level IP (CLIP). Channel 0 and Clock I/O are global clocks. The _CC suffix on the RX Data signals identifies channels that are capable of receiving a regional clock.

  • Page 8: Using Your Ni 6584R With A Labview Fpga Example Vi

    LabVIEW FPGA example project and a basic universal asynchronous receiver/transmitter (UART) interface to perform serial generation and/or acquisition with the NI 6584R. This example requires an NI VHDCI-to-Eight DB9 cable. If you are operating an unterminated device, NI recommends that you use external termination.
  • Page 9 You must choose whether to enable the Write Data button or the Read Data button. 10. Click the Run button to run the VI. The NI 6584R generates and/or acquires data on Channel 0 of Port 1. If a timeout error occurs, the number of samples acquired did not reach the value specified in the Samples to Acquire control.

  • Page 10: Creating A Labview Project And Running A Vi On An Fpga Target

    This section demonstrates how to create a LabVIEW project, an FPGA VI, and a host VI that writes and reads data on the NI 6584R. This exercise also demonstrates how to compile the FPGA VI on your target and run a VI on the host machine. This exercise shows how to complete these tasks for the full duplex version of the NI 6584.
  • Page 11 Intellectual Property section of this document. Select NI 6584 Full-Duplex to configure the software for the full duplex version of the NI 6584R. Select NI 6584 Basic Connector to use the connector-based CLIP. Click OK. 10. In the Project Explorer window, select IO Module (NI 6584 Full-Duplex : NI 6584 Basic Connector).
  • Page 12 18. Wire the Read/Write Control error out parameter to the Close FPGA VI Reference error in parameter. 19. Right-click the stop condition of the While Loop and add an control. Label this control Stop © National Instruments Corporation NI 6584R User Guide and Specifications...

  • Page 13: Ni 6584 Component-Level Intellectual Property

    Enter a number in the IO Module\TX control to push different values to all 16 channels. When you use the half duplex version of the NI 6584R, the number you enter in the IO Module\TX appears in the IO Module\RX control. When you use the full duplex version of the NI 6584R, the IO Module\RX indicator returns the number 65,535 because all RX lines are floating.
  • Page 14 Refer to the NI FlexRIO Adapter Module Support topic of the NI FlexRIO Help for information regarding NI FlexRIO CLIP, configuring the NI 6584 with a socketed CLIP, and a list of available socketed CLIP and provided signals. © National Instruments Corporation NI 6584R User Guide and Specifications...

  • Page 15: How To Use Your Ni Flexrio Documentation Set

    Other Useful Information on ni.com ni.com/ipnet Contains LabVIEW FPGA functions and intellectual property to share. ni.com/flexrio Contains product information and data sheets for NI FlexRIO devices. These documents are also available at ni.com/manuals. NI 6584R User Guide and Specifications ni.com...

  • Page 16: Specifications

    The VHDCI connector shown in the preceding figures is labeled CONNECTOR 0 (Ports 1–8) on the front panel of the NI 6584. Terminated devices (199496-01/199496-02) have 100 Ω termination. Unterminated devices (199496-03/199496-04) are open. © National Instruments Corporation NI 6584R User Guide and Specifications...
  • Page 17 Operating environment ..........0 °C to 55 °C, tested in accordance with IEC-60068-2-1 and IEC-60068-2-2. Relative humidity range .........10% to 90%, noncondensing, tested in accordance with IEC-60068-2-56. Altitude ..............2,000 m at 25 °C ambient temperature. Pollution Degree ............2 NI 6584R User Guide and Specifications ni.com...
  • Page 18 To obtain product certifications and the DoC for this product, visit ni.com/ , search by model number or product line, and click the appropriate link in the certification Certification column. © National Instruments Corporation NI 6584R User Guide and Specifications...

  • Page 19: Where To Go For Support

    Environmental Management National Instruments is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial not only to the environment but also to NI customers. For additional environmental information, refer to the NI and the Environment Web page at ni.com/...
  • Page 20 For patents covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the National Instruments Patent Notice at ni.com/patents.
