DYNAMIC ENGINEERING
150 Dubois St. Suite C, Santa Cruz, CA 95060
831-457-8891
Fax 831-457-4793
http://www.dyneng.com
sales@dyneng.com
Est. 1988
User Manual
PCIe 8L XMC X1
PCIe 8 Lane XMC Compatible Carrier
Revision A2
Corresponding Hardware: Revision A/B
Fab number:10-2012-0601/2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCIe 8L XMC X1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dynamic Engineering PCIe 8L XMC X1

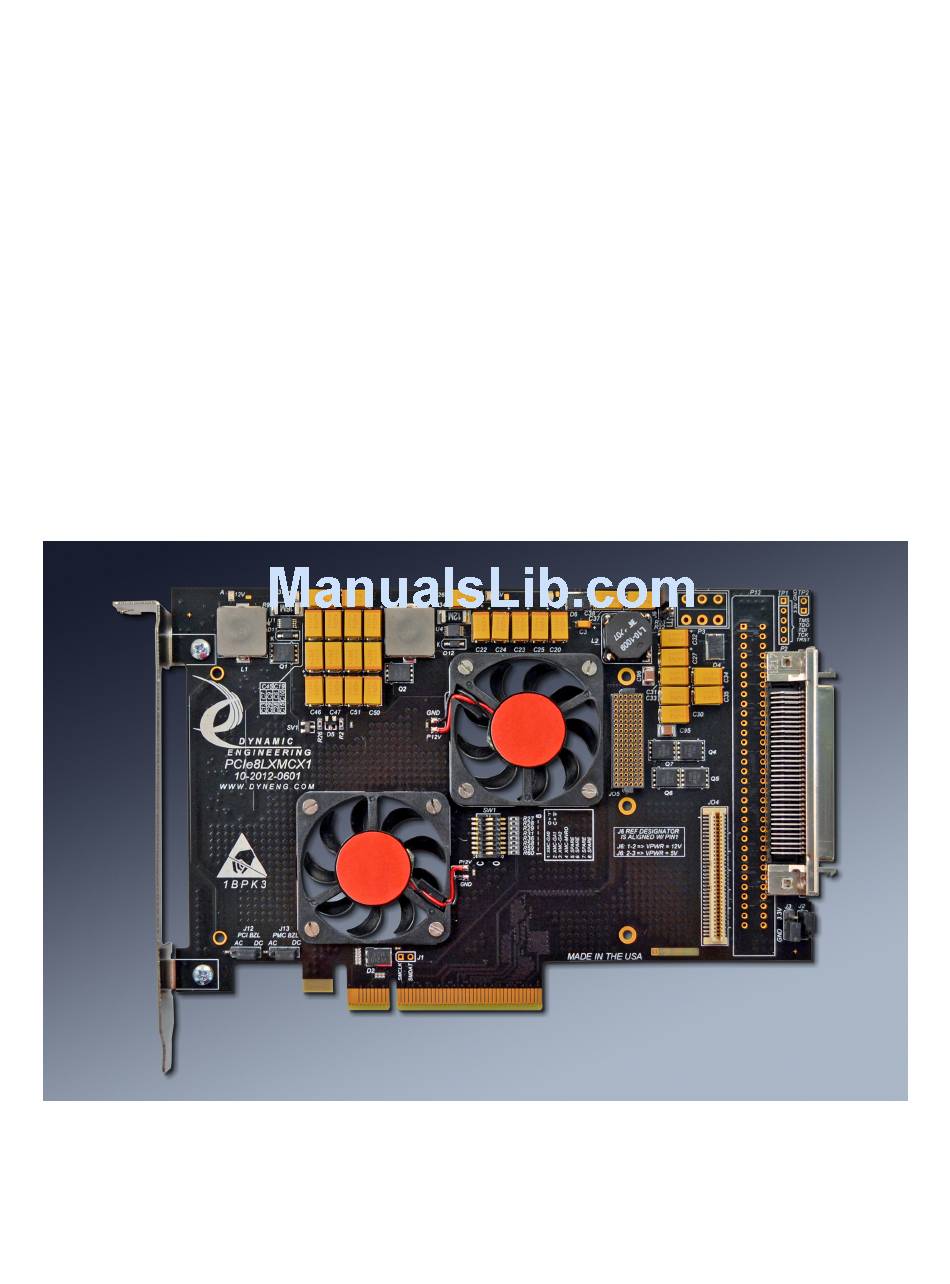

  • Page 1 DYNAMIC ENGINEERING 150 Dubois St. Suite C, Santa Cruz, CA 95060 831-457-8891 Fax 831-457-4793 http://www.dyneng.com sales@dyneng.com Est. 1988 User Manual PCIe 8L XMC X1 PCIe 8 Lane XMC Compatible Carrier Revision A2 Corresponding Hardware: Revision A/B Fab number:10-2012-0601/2...
  • Page 2: Embedded Solutions

    Dynamic Engineering has made every effort to ensure that this manual is accurate and complete. Still, the company reserves the right to...
  • Page 3: Table Of Contents

    Table of Contents PRODUCT DESCRIPTION Headers and TestPoints DipSwitch Settings Options XMC Module Backplane IO Interface Pin Assignment APPLICATIONS GUIDE Interfacing Construction and Reliability Thermal Considerations WARRANTY AND REPAIR Service Policy Out of Warranty Repairs For Service Contact: SPECIFICATIONS ORDER INFORMATION Embedded Solutions Page 3...
  • Page 4 List of Figures FIGURE 1 PCIE8LXMCX1 PN4 INTERFACE STANDARD Embedded Solutions Page 4...
  • Page 5: Product Description

    Product Description PCIe8LXMCX1 is part of the Dynamic Engineering PCI and XMC Compatible family of modular I/O components. PCIe8LXMCX1 adapts an XMC to one PCIe slot. The PC is still a frequent host to embedded HW for development, and delivery. With the PCIe bus overtaking PCI, XMC’s and PC’s with PCIe are becoming common.
  • Page 6: Headers And Testpoints

    Headers and TestPoints is used to select the VPWR source for position 0 and 1 respectively. When the Shunt closes 1-2 – 12V is selected. With 2-3 closed 5V is selected. FET’s are used to provide a low impedance path from the power supplies to VPWR for each position. Options are in place on the PCB to allow hardwired selections for clients who prefer a fixed voltage.
  • Page 7: Dipswitch Settings

    ‘1’. Position 5-8 are spare Options Dynamic Engineering offers multiple versions of the PCIe8LXMCX1design. In addition to the basic passive design there are options for Ethernet, Fan, Serial ports, and minimization. The PCIe8LXMCX1 features cooling cutouts designed to support the addition of a fan in one or two positions for each XMC.
  • Page 8 The square pad in the photo is “A1”. The mating part number is 120-964-455 Panduit, DIN-IDCA-64CSB-TG30 Robinson Nugent, Berg also has a part which is slightly taller. Cables and breakouts are available from Dynamic Engineering – Please see DINterm64 and DINribn64 or HDEcabl68 and HDEterm68 products from the Dynamic Engineering website.
  • Page 9: Xmc Module Backplane Io Interface Pin Assignment

    XMC Module Backplane IO Interface Pin Assignment The figure below gives the pin assignments for the XMC Module IO Interface – from Pn4 to the PCIe8LXMCX1connectors. Also see the User Manual for your XMC board for more information. Please note that P2 or P3, P4 or P5 are installed not both. DIN IDC [P13] SCSI II [P2] Open, +3 or GND via J2,19 silk screen defined...
  • Page 10: Applications Guide

    Applications Guide Interfacing Some general interfacing guidelines are presented below. Do not hesitate to contact the factory if you need more assistance. Installation The XMC is mounted to the PCIe8LXMCX1 prior to installation within the chassis. For best results: with the PCIe bracket installed, install the XMC at an angle so that the XMC front panel bezel penetrates the PCIe bracket then rotate down to mate with the XMC [PnX] connectors.
  • Page 11: Construction And Reliability

    Construction and Reliability The PCIe8LXMCX1 is constructed out of 0.062 inch thick high temp RoHS compliant FR4 material. Cooling cutouts have been designed into the product for improved air flow to the XMC sites. The components on the PCIe8LXMCX1 are tied into the internal power planes to spead the dissipated heat out over a larger area.
  • Page 12: Warranty And Repair

    For service on Dynamic Engineering Products not purchased directly from Dynamic Engineering contact your reseller. Products returned to Dynamic Engineering for repair by other than the original customer will be treated as out-of-warranty.
  • Page 13: Specifications

    Specifications Logic Interfaces: PCIe up to 8 lanes per XMC Gen1 and Gen2 compliant. Access types: PCIe TLP transactions. MSI interrupts. CLK rates supported: Gen1 and Gen2 Software Interface: Passive, no SW required for adapter Initialization: switch selections for VPWR, bezel grounding, and cable options Interface: XMC front bezel via PCIe bracket and User IO connector via DIN ribbon or SCSI II connector...
  • Page 14: Order Information

    64 pin ribbon cable to to 64 screw terminal converter with DIN rail mounting. DINribn64 http://www.dyneng.com/DINribn64.html 64 pin ribbon cable with strain relief. Add –XX for number of inches. 36” is default. All information provided is Copyright Dynamic Engineering Embedded Solutions Page 14...
