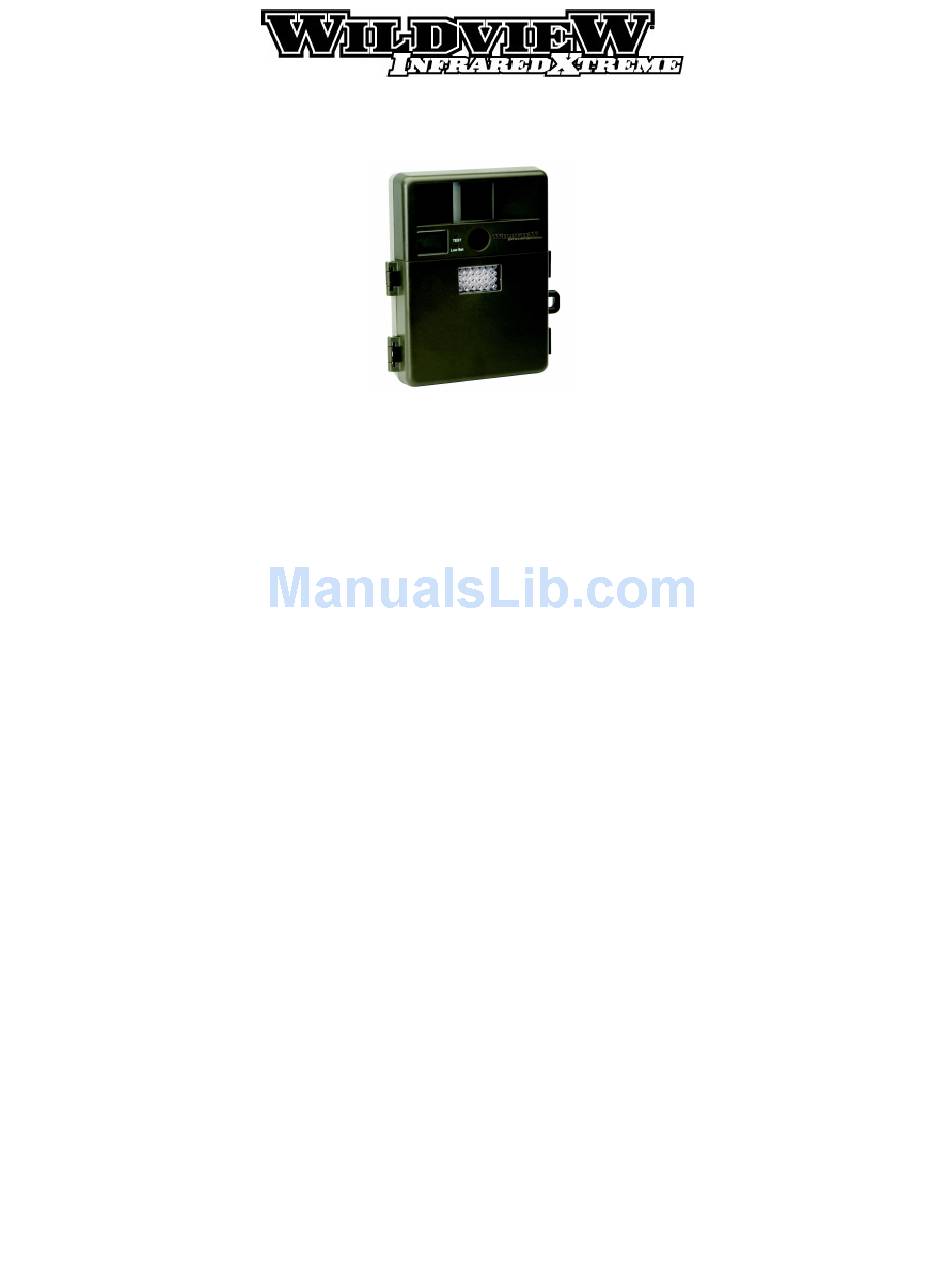

- Page 1 STC-TGL2IR User’s Manual Toll Free Customer Support 1-888-304-6125 www.wildviewcam.com Version 1.0 07/07...
- Page 2 Grand Prairie, Texas 75053-5189 Wildview Limited Warranty Your Wildview scouting camera is covered by a 90 days Limited Warranty on parts and labor from the date of original purchase, and purchases must be made through an authorized dealer. The warranty covers defects in workmanship and materials.
-
Page 3: Table Of Contents
STC-TGL2IR Manual Contents Camera overview Camera kit contents Battery and memory Installation Definition Programming Mounting the camera Viewing images Saving and Deleting images Memory compatibility chart Technical Specs General Information Image Capacity Chart www.wildviewcam.com Toll Free 888-304-6125... -
Page 4: Camera Overview
STC-TGL2IR Camera overview Front view Side view www.wildviewcam.com Toll Free 888-304-6125... -
Page 5: View With Major Parts Indication
STC-TGL2IR Open view image with major parts indication www.wildviewcam.com Toll Free 888-304-6125... -
Page 6: Camera Kit Contents
Doing so will damage the camera and will void the warranty. The Wildview Digital Scouting Camera is designed to operate using alkaline batteries for optimum performance. www.wildviewcam.com Toll Free 888-304-6125... - Page 7 Install batteries with correct polarity (+/-) as noted inside the battery compartment. 12V Lead Acid external battery The Wildview Scouting Camera is equipped with an external power jack designed to accept a barrel plug cable to attach to a sealed lead acid battery. (sold separately).
- Page 8 Incorrect voltage or polarity (+/-) will damage the camera. Memory Options Your Wildview scouting camera is equipped with 16MB internal memory. The camera is also equipped with an expandable media card slot capable of accepting up to 2GB* SD card (sold separately).
- Page 9 STC-TGL2IR Inserting SD card Make sure camera is in the OFF position whenever adding or removing memory. Insert SD memory card in to the SD card slot • completely and in the correct direction as shown on the inside of the housing. To remove the SD memory card, depress the SD •...
-
Page 10: Definition
STC-TGL2IR Definition Time out: To set the amount of preset time in • minutes the camera will sleep between PIR triggering Resolution: The resolution selection that you have • selected. Model STC-TGL2IR 2.0M 1.3M Date/Time: To set date and time stamp in the picture •... -
Page 11: Programming
FULL: When memory capacity is full, this front LCD • screen will show “FULL” Programming your Wildview Camera The following setting must be performed before you turn on the camera. 1. Select the time out interval by sliding the time out toggle switch to the desired preset time interval in minutes. - Page 12 STC-TGL2IR 4. Select Burst mode: Slide the switch to 1 / 2 / 3 / AVI position. 5. Turn on the Camera to set the Date / Time stamp a. Slide the power switch to the PIR position b. Press and hold [SET] button for 2 seconds to enter date &...
- Page 13 STC-TGL2IR h. Press and hold [SET] button for 2 seconds to exit the setting mode and enter into PIR count down mode. Display will show date and number of picture taken. Once the program setting has been completed, slide the power switch to OFF position until you are ready for field use.
-
Page 14: Mounting The Camera
STC-TGL2IR Mounting the camera It is recommended that you mount the camera 4-5 ft off the ground with the camera pointed at a slight downward angle. Be sure to avoid mounting the camera facing east or west as the rising and setting of the sun could produce false triggers and overexposed images. - Page 15 STC-TGL2IR Mounting the camera with the supplied strap Insert the strap through the strap slots on the rear • housing. Wrap the strap around the mounting surface. Secure • the strap and tighten the buckle in order to secure the camera.
- Page 16 Testing the camera coverage area One of Wildview Scouting Camera’s features is the ability to test the coverage area. After mounting the camera, open front housing and •...
- Page 17 STC-TGL2IR When you have completed testing the coverage area, • open the front housing and slide the power switch from Test position to PIR position. Front LCD counter will show “0000”. The camera will enter count down mode for 1 minute and the front green indicator will start blinking, giving you one minute to leave the coverage area.
-
Page 18: Viewing Images
STC-TGL2IR Viewing images Viewing images by computer download The Wildview Scouting Camera is a plug and play USB storage device. This means users of Windows 2000 /ME / and XP operating systems need not install the camera driver. This camera is not MAC compatible. The CD-ROM included in this package contains the camera driver for older operating system only. - Page 19 STC-TGL2IR Follow the instructions shown on screen from your • PC to completely install the driver and application program. If the existing DirectX version on your PC is lower • than version 8, and if you have problems viewing the image with the standard software provided by Microsoft, then you should install DirectX 8 Restart windows.
- Page 20 STC-TGL2IR If your computer doesn’t run automatically, please • click “Start” button and choose “Run”, and then browse the CD drive and click “Setup”. Viewing the images on your computer Slide the power switch to OFF position. • To view the images simply plug one end of the USB •...
-
Page 21: Saving And Deleting Images
STC-TGL2IR Saving and Deleting images SAVING IMAGES To save images on to your PC, simply copy and paste, or drag and drop from the SDRAM memory to your PC desk top. DELETING IMAGES There are two ways to delete the images from the internal SDRAM memory. - Page 22 STC-TGL2IR or [DN] until screen shows “ESC” then press [SET] again to exit. d. This will only delete the last image saved in the memory. Delete All picture: a. Press [SET] button to enter delete setting. Display will show “ESC” b.
- Page 23 STC-TGL2IR ESC: To exit delete setting. 2. Simply remove the batteries from the battery compartment. This will delete the image stored in the internal SDRAM memory CAUTION: Do not remove the battery until you have down loaded all the images in the internal SDRAM. Once the battery is removed, all images in the internal SDRAM will be deleted.
-
Page 24: Memory Compatibility Chart
STC-TGL2IR SD card Compatibility Chart The following cards have been tested and approved for use in the STC-TGL2IR model. 32MB, 64MB, 128MB, 256MB, 512MB San Disk 32MB, 64MB, 128MB, 2GB Panasonic 32MB, 64MB, 128MB, Toshiba 32MB, 64MB, 128MB, 256MB, 512MB King Mate 32MB, 64MB, 128MB, 256MB, 512MB Lexar... -
Page 25: Technical Specs
STC-TGL2IR Technical Specifications System Requirements and Compatibility Windows 98/98se/2000/Me/XP. • Pentium III 450MHz or equivalent processor. • 128MB SDRAM or above. • VGA Video Card with 32MB RAM for minimum, Color • 16 bit or higher. An available CDROM driver and an available USB •... - Page 26 STC-TGL2IR Camera Features and Specification Mega Built in Resolution Option Model Pixel Memory High Video STC-TGL2IR 2.0M 16MB 2.0M 1.3M QVGA Auto white balance and auto expose. • Auto/On/Off Infrared LED strobe control • Infrared Range – 30ft 4 digits LCD Image counter •...
- Page 27 STC-TGL2IR Standby current: < 2mA Capture current: <120mA Interface type: USB 1.0 • Power: C size alkaline Batteries x 4. • Image format: Standard JPEG. & Motion JPEG (AVI) • www.wildviewcam.com Toll Free 888-304-6125...
-
Page 28: General Information
Keep the Wildview scouting camera in a dry and cool dust-free environment or container when it is NOT used. Take the batteries out, when the Wildview scouting • camera is NOT to be used over a long period. - Page 29 STC-TGL2IR Avoid dropping the Wildview scouting camera on to • hard ground. Do not disassemble the Wildview scouting camera. Do not mix new and old batteries. • Do not open the camera for unauthorized service. • This could cause serious damage to the unit and will void the warranty.
-
Page 30: Image Capacity Chart
STC-TGL2IR Image Capacity Chart – STC-TGL2IR SD card High Built In 16MB SDRAM 16MB 32MB 64MB 128MB 256MB 1280 512MB 1696 2560 1GB* 3392 5120 1024 2GB* 6784 10240 2048 * Subject to card compatibility under different brand www.wildviewcam.com Toll Free 888-304-6125... - Page 31 These figures may vary depending on the amount of detail in the image. US Patents 6,735,387 / 6,768,868 / 6,834,162 / 7,149,422 Patents Pending Product specifications are subject to change. Wildview is not responsible for any photographic or typographical errors www.wildviewcam.com Toll Free 888-304-6125...
