- Page 1 Owner’s Manual & InstallatIOn GuIde Note: Read all instructions before proceeding with installation. All specifications are ± 1/4’’ and are subject to change without notice.
-
Page 2: Table Of Contents
Air Bath System Cleaning Surface Cleaning Jet Cleaning Surface Scratch Removal Repair information Water Quality issues 23-25 TrOuBLEShOOTiNg guidE Symptoms/Possible Problems/Solutions PArTS OrdEr FOrM/PArTS MAPS/PArTS LiST Parts Order form Parts Maps 28-31 Parts List 32-33 AquATiC LiMiTEd WArrANTy aquatic Industries, Inc. -
Page 3: Product Registration/Warranty Card
Aquatic through the Serial Number on your unit. you do not need to contact Aquatic to confirm registration. Please fill out the information below and reference when contacting the distributor to expedite warranty claims. -
Page 4: Congratulations
CONgRAtULAtiONS! you have chosen one of the finest bath products in the world! Aquatic industries supports your purchase with strong commitments to quality and customer satisfaction. Please read and follow all of the instructions contained in this Owner’s Manual before installing, operating or maintaining your whirlpool. -
Page 5: Safety Instructions
iMPOrTANT SAFETy iNSTruCTiONS WArNiNg: WhEN uSiNg ThiS uNiT, ThESE BASiC PrECAuTiONS ShOuLd BE FOLLOWEd. This manual contains information and instructions for proper operation and maintenance of your whirlpool. Failure to follow these instructions could result in personal injury, electrical shock or fire. rEAd ANd FOLLOW ALL iNSTruCTiONS dANgEr! TO rEduCE ThE riSK OF iNjury: Do not permit children to use this unit unless they are closely supervised by an adult at all times. -
Page 6: Pre-Installation Procedures
6. With the pump running, turn on the blower. Check all functions. 7. Inspect the tub completely. Any defect must be reported to Aquatic Industries, Inc. prior to installation in order to have it covered by warranty. Should inspection indicate any damage, do not install the bath. -
Page 7: Structural Preparation
NOTE: Watertight installation of the drain and over flow is the installer’s responsibility. drain and/or overflow leakage is not included in the warranty of this product. Ledge installation - 1 Ledge installation - 2 Apron installation Wall installation Sunken installation WArNiNg: ALL ELECTriCAL CONNECTiONS ShOuLd BE MAdE By A LOCALLy LiCENSEd ELECTriCiAN. aquatic Industries, Inc. -
Page 8: Leveling Of The Infinity I
Level 3. After leveling the front to back of the whirlpool, check the left to right level. If not level, re-adjust until level. Check again until left to right and front to back are both level. aquatic Industries, Inc. -
Page 9: Factory Installed Tile Flange
WiLL NOT BE rESPONSiBLE FOr WATEr dAMAgE OF ANy KiNd iN CONNECTiON WiTh ONE OF Our WhirLPOOL BAThS. 3. All Infinity Series models are equipped with an integral Fast Fill Waterfall Spout. Purchasing a spout is unnecessary, however, hot and cold water valves are needed. Valves can be mounted where you choose, however, if installation is to be on the tub deck, check the back side of the tub for adequate space for connection to water lines before drilling or cutting tub. -
Page 10: Fast Fill Waterfall Spout
ON EACH tUB AND SPECifiCAtiONS ARE SUBJECt tO CHANgE AS WE iMPROvE UPON OUR PRODUCt AS REQUiRED. tHE DiMENSiONS NEEDED fOR SitE PREPARAtiON AND StRUCtURE BUiLDiNg WILL DIFFEr; AqUATIC INDUSTrIES, INC. ASSUMES NO rESPONSIBILITY FOr PREPARAtORy WORk. FAST FiLL WATErFALL SPOuT: your fast fill Waterfall Spout will be stubbed as in Diagram 3B. -
Page 11: Continuous Waterfall
AC Input” and plug it into the outlet labeled “Heater”. Plug the cord labeled “Main AC Input” into the outlet labeled “Main”. Both of these cords will come from the right side of the heater and will be marked. (See diagram on page 12). aquatic Industries, Inc. - Page 12 BONdiNg WirE: Connect a #8 bare copper bonding wire from the pump motor to the heater and then to the cold water plumbing or other suitable ground. grounding is required. For built-in and custom units, install to permit access for servicing. aquatic Industries, Inc.
- Page 13 HEAtER AC iNPUt iNFiNiTy ELECTrONiC T-hEATEr MAiN AC iNPUt MOdEL NuMBEr: hS SEQUENCER CONTrOL BOX RECiRCULAtiNg PUMP (infinity i Only) OUtLEt SUPPLiED Blower Motor WitH WHiRLPOOL (SEE WiRiNg DiRECtiONS) Blower Control Box 15 AMP, 120 VAC aquatic Industries, Inc.
-
Page 14: Chromatherapy Led Lighting
ChrOMAThErAPy LEd LighTiNg: All infinity models now come equipped with a digital color-changing underwater light for soothing chromatherapy. to compliment your bathing experience, the Aquatic electronic control panel allows you to select a color according to the desired effects. to turn your Chromatherapy Lighting System ON: Press the Light Button once to turn the Chromatherapy Light ON in Color Wash mode. -
Page 15: Bathside Control Systems

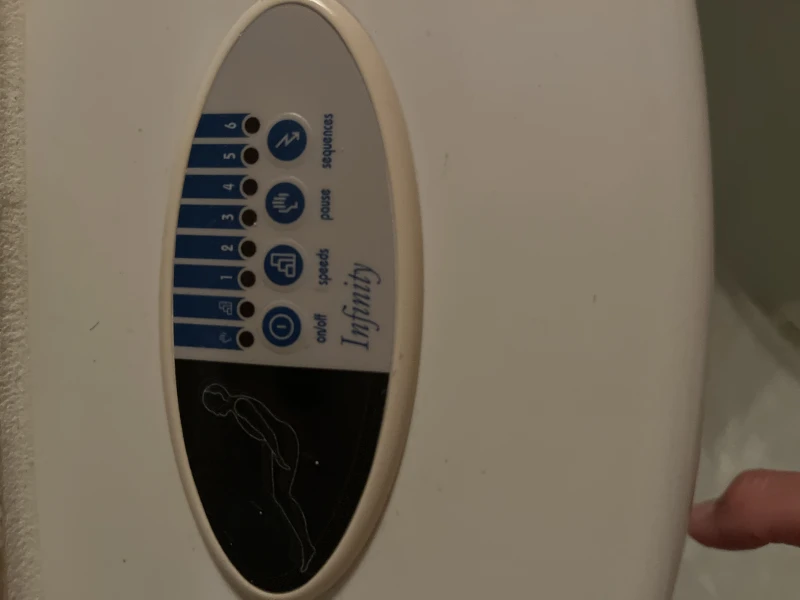

OPErATiON of iNFiNiTy SEriES WhirLPOOLS NOTE: dO NOT STArT PuMP uNTiL ALL jETS ArE SuBMErgEd. WATEr LEVEL ShOuLd BE 2” ABOVE highEST jET. BAThSidE CONTrOL SySTEMS: iNFiNiTy ON/OFF WiTh hEATEr CONTrOL (SEE diAgrAM 6A): 1. to turn Pump On: Pressing the On/Off button will turn the pump on. - Page 16 OPErATiON of iNFiNiTy SEriES WhirLPOOLS BAThSidE CONTrOL SySTEMS (continued): iNFiNiTy jET SEquENCEr CONTrOL (SEE diAgrAM 6B): 1. To Turn jet Sequencer On: Pressing the “On/Off” button will turn the jet sequencer on. The system will then perform an indicator light test and open all valves. Pressing the “On/Off” button a second time will turn the jet sequencer off.
- Page 17 PurgE 24 hOurS it is possible for the user to program a purge cycle that will start every day for a duration of 1 minute. Aquatic strongly recommends activating this feature. the purge cycle will help ensure that the air channels stay dry even when you have taken a soaking bath or shower.
-
Page 18: Jet Operations
SEriES WhirLPOOLS jET OPErATiONS: All infinity Series jets are removable and can simply be put into the dishwasher for cleaning. (Note: Use dishwasher top rack and remove before the drying cycle starts.) the infinity Series features Aquatic’s exclusive Shiatsu Back Jetting System, Aquatic rotary Massage Jets, Full Size Pressure-Flo Hydrotherapy Jets, rotary Massage Elite Jets and Pressure Plus Jets. - Page 19 OPErATiON of iNFiNiTy SEriES WhirLPOOLS jET OPErATiONS (continued): • To adjust pressure (see diagram 8B) 1. grasp the outer ring of the jet. 2. Turn the jet clockwise to increase flow, counter-clockwise to shut off. • To remove jet (see diagram 8C) 1.
-
Page 20: Jet Operations
OPErATiON of iNFiNiTy SEriES WhirLPOOLS jET OPErATiONS (continued): AquATiC rOTAry MASSAgE jET Deeply recessed for greater bathing comfort, the rotary Massage Jet generates a powerful rotating massage action that is directionally and pressure adjustable for custom flexibility. the Rotary Massage Jet massages the lower back and foot areas. -
Page 21: User Information
This booklet is available from the u.S. government Printing Office, Washington, dC 20402, Stock No., 004-000-00345-4. Serial Number Location the tub model and serial number is located above the pump area on the backside of the bathtub. your installer should have a service access panel in this location. aquatic Industries, Inc. -
Page 22: Maintenance And Care
ON air bath and run for approximately five minutes. turn air bath unit Off and drain tub. Aquatic recommends the above cleaning process on your air bath system once a month. -
Page 23: Surface Cleaning
CLEANiNg: All Infinity Series jets are removable, and can simply be put into the dishwasher for easy cleaning. See Jet Operation Instructions for removal, pages 18-20. (Note: Use top rack of dishwasher and remove before the drying cycle starts.) SurFACE SCrATCh rEMOVAL: Minor scratches may be removed by polishing your tub with a non-abrasive car polish, followed by buffing. - Page 24 Industries, Inc.
- Page 25 SuPEr SySTEMS CLEAN PLuS manufactured by Stearns Packaging Corporation to rectify this condition. this may be obtained by contacting Aquatic industries at (800) 555-5324. it is recommended that you follow the instructions provided by the manufacturer with the product. Repeated use may be necessary.
-
Page 26: Troubleshooting Guide
Off position. Reset gfCi. fuses blown or thermal overload open. Contact your electrician. Locked motor shaft. Contact Aquatic Industries, Inc. Motor windings burned out. Contact Aquatic Industries, Inc. Defective starting switch inside Contact Aquatic Industries, Inc. -
Page 27: Parts Order Form
2. Using map number and letter, choose part number and select color (or finish) on parts list provided on pages 32-33. 3. fill out the form below with the selected information. fax or send to Aquatic. 4. Call AQUAtiC for parts pricing and shipping charges. -
Page 28: Parts Maps
Industries, Inc. - Page 29 SEriES rEPLACEMENT PArTS OrdEr MAP/OVErViEW 12c. 11a. 12b. 12a. 11b. 21a. 13b. 21b. 13a. 14a. 14b. 15b. 20a. 19a. 15a. (Option) (Option) 16b. 17a. 17b. 16a. ASSOrTEd FiTTiNgS Coupler y Fitting Street 90° 90° T Fitting Street 45° 45°...
- Page 30 SEriES rEPLACEMENT PArTS OrdEr MAP 12c. 22b. 22a. 13b. 23a. 14b. 24a. 25a. 26a. aquatic Industries, Inc.
- Page 31 SEriES rEPLACEMENT PArTS OrdEr MAP 27a. 27b. 28a. 28b. 28c. aquatic Industries, Inc.
-
Page 32: Parts List
16a. Grab Bar, 12” 901760GrAB Satin Nickel 16a. Grab Bar, 12” 901770GrAB Polished Nickel 16a. Grab Bar, 12” 901740GrAB Gold 16a. Grab Bar, 12” 4174ACrOD Clear Acrylic/Specify Model # 16a. Grab Bar, 12” 901780GrAB Oil rubbed Bronze aquatic Industries, Inc. - Page 33 * To indicate color, replace “XX” with “WH” for White, “BO” for Bone, “BK” for Black, “ST” for Sterling Silver, “BI” for Biscuit, “IB” for Innocent Blush, “Cr” for Chrome, “Br” for Brass, “PN” for Polished Nickel, “BN” for Satin Nickel, “GD” for Gold, “CL” for Clear and “rB” for Oil rubbed Bronze. aquatic Industries, Inc.
-
Page 34: Aquatic Limited Warranty
LiMiTATiONS 1. AqUATIC INDUSTrIES, INC. whirlpools and tubs sold for industrial, commercial and hotel use are warranted for two years, but not more than 3 years from date of manufacture, with a 2 year limited warranty that the shell will retain its structural integrity and configuration and be free of water loss due to a defect in the tub. - Page 36 P.O. Box 889 Leander, Texas 78646-0889 • 11880 rr 2243 W Leander, Texas 78641 iOM7 6/08 (800) 555-5324 FAX: (800) 421-3633 Fax-On-Demand: (877) 618-7024 www.aquaticwhirlpools.com...
