Owner's Manual &
InstallatIOn GuIde
note: read all instructions before proceeding with installation.
All specifications are ± 1/4'' and are subject to change without notice.
AquAtic industries, inc.
1

Advertisement

Table of Contents
loading

Related Manuals for Aquatic Serenity Series

Summary of Contents for Aquatic Serenity Series

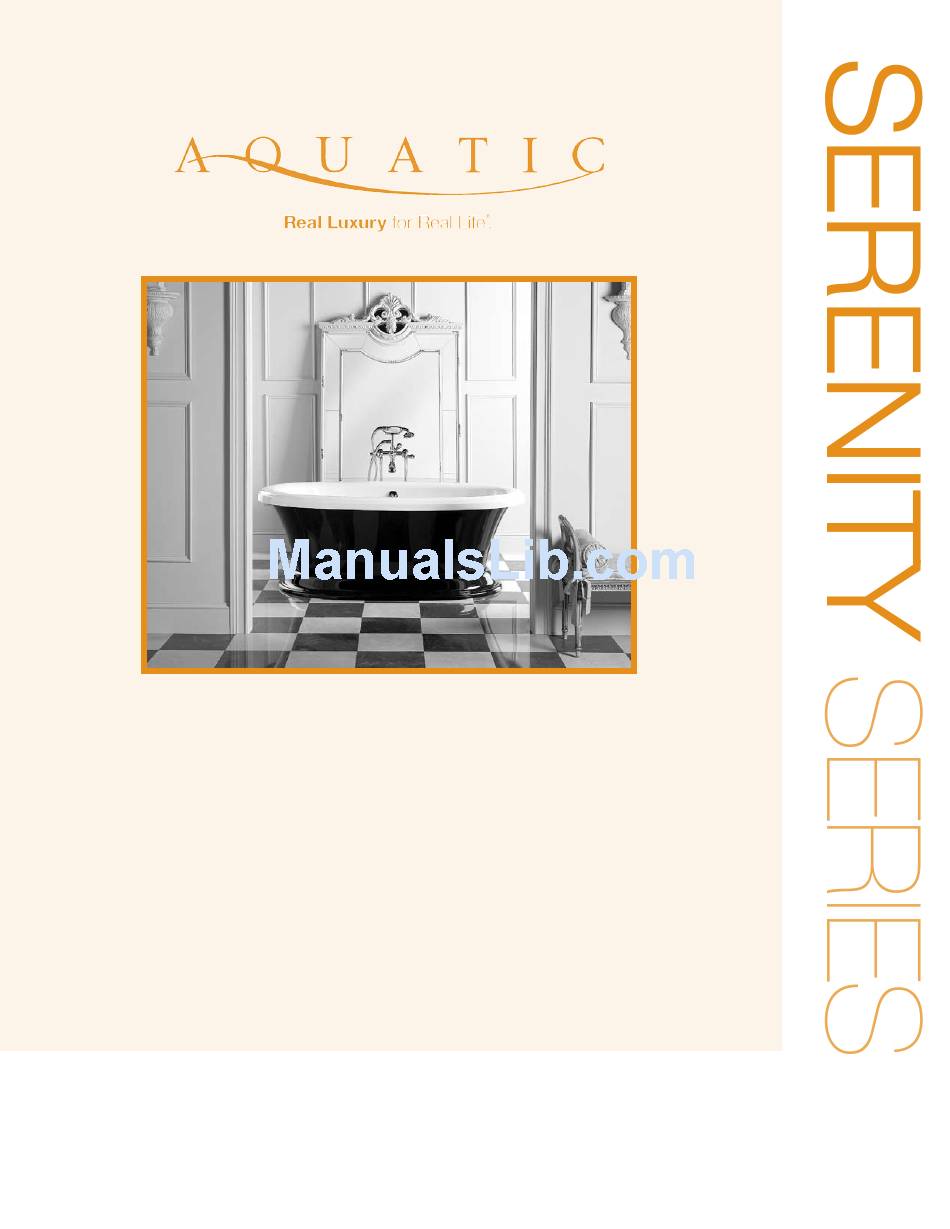

  • Page 1 Owner’s Manual & InstallatIOn GuIde note: read all instructions before proceeding with installation. All specifications are ± 1/4’’ and are subject to change without notice. AquAtic industries, inc.

  • Page 2: Table Of Contents

    ANd CArE cleaning Flushing/sanitizing surface scratch removal repair Fcc information serial number - How to Locate TrOuBLEShOOTiNg guidE symptoms/Possible Problems/solutions PArTS OrdEr FOrm/PArTS mAP/PArTS LiST Parts Map Parts List replacement Parts Order Form AquATiC LimiTEd wArrANTy AquAtic industries, inc.

  • Page 3: Product Registration Information

    Product registration information Your product warranty is registered and confirmed with Aquatic through the serial number on your unit. You do not need to contact Aquatic to confirm registration. Please fill out the information below and reference when contacting the distributor to expedite warranty claims.

  • Page 4: Congratulations

    CONgrATuLATiONS! You have chosen one of the finest bath products in the world! Aquatic industries supports your purchase with strong commitments to quality and customer satisfaction. Please read and follow all of the instructions contained in this Owner’s Manual before installing, operating or maintaining your air bath.

  • Page 5: Safety Instructions

    CAuTiON: dO nOt use HArsH ABrAsiVes Or sOLVents FOr cLeAning tHis unit. iNSTALLEr/OwNEr BEArS ALL rESPONSiBiLiTy TO COmPLy wiTh ALL STATE ANd LOCAL COdES whEN iNSTALLiNg ThiS PrOduCT. SAVE ThESE iNSTruCTiONS AquAtic industries, inc.

  • Page 6: Pre-Installation Procedures

    3. Plug in blower control box and run blower for 10 minutes. 4. inspect the tub completely. Any defect must be reported to Aquatic industries, inc. prior to installation in order to have it covered by warranty. should inspection indicate any damage or leaks, do not install the bath.

  • Page 7: Structural Preparation

    3. tub must rest entirely on its base. dO NOT SuPPOrT ThE BASE OF ThE TuB By ThE rim. Aquatic strongly recommends preparing a bed of wet mortar in the area where tub is to be installed to assist in leveling and reduce vibration noise.

  • Page 8: Factory Installed Tile Flange

    ALL ELECTriCAL CONNECTiONS ShOuLd BE mAdE By A LOCALLy LiCENSEd ELECTriCiAN. 6. Another installation option is that of a tile flange. Aquatic offers an optional factory installed tile flange for all rectangular and corner-unit air baths. FACTOry iNSTALLEd TiLE FLANgE: 1.

  • Page 9: Plumbing

    5 minutes. carefully check for leaks both while blower is running and after it has been turned off. Allow water to stand in tub for at least 30 minutes before draining. AquATiC iNduSTriES, iNC.

  • Page 10: Rough-In Measurements

    13 1/2” serenity 32 Motif 6” 14” serenity 33 1 1/2” 8 3/4” serenity studio 34 2 3/4” 10 3/4” serenity studio 35 2 3/4” 10 3/4” serenity studio 36 3” 10 1/2” serenity 37 3 1/2” 11” AquAtic industries, inc.

  • Page 11: Electrical Installation

    (4) fetal damage in pregnant women, (5) physical inability to exit the air bath, (6) unconsciousness resulting in the danger of drowning. wArNiNg: The use of alcohol, drugs, or medication can greatly increase the risk of fatal hyperthermia. AquAtic industries, inc.

  • Page 12: Chromatherapy Led Lighting

    ChrOmAThErAPy LEd LighTiNg: All serenity models* come equipped with a digital color-changing underwater light for soothing chromatherapy. to complement your bathing experience, the Aquatic electronic control panel allows you to select a color according to the desired effects. To Turn your Chromatherapy Lighting System ON: Press the light button once to turn the chromatherapy Light on in color wash mode.

  • Page 13: Variable Speed Air Blower Remote Mounting

    Blower chromatherapy Led Light water sensor wires chromatherapy Led 6’’ (Black and red) Light - 2 wires Located by drain control Box to Key Pad water Level sensor to ir sensor (not on freestanding models) (not used) AquAtic industries, inc.

  • Page 14: Installation Instructions For Freestanding Models

    3. Once the pipe has been installed through the floor and the bath has been placed, secure the four feet with 1/4” lag bolts or concrete anchors (see diagram 9c). Pipe concealer cut pipes to desired length prior to assembly AquAtic industries, inc.
  • Page 15 10B and 10c). Blower Fitting SErENiTy 13 BOTTOm ViEw cut pipes to desired length prior to assembly Anchor Pins Anchor Pins 20” 20” 20” 20” 17” 20 1/2” SErENiTy 13 SidE ViEw SErENiTy 11 SidE ViEw AquAtic industries, inc.
  • Page 16 1. determine the exact location of the drain, air passage and the two anchoring points at each end of the bath (see following diagrams). 21 3/8” Blower Fitting Serenity Studio 17 BLOwer Fitting BLOwer Fitting Serenity Studio 24 Serenity Studio 23 BLOwer BLOwer Fitting Fitting Bottom View Serenity Studio 25 Serenity Studio 26 AquAtic industries, inc.

  • Page 17: Variable Speed Air Blower Remote Mounting For Freestanding Models

    Aim remote control at the infrared sensor and check. (see remote control Operation on pages 24-25.) NOTE: A red light will flash rapidly after pushing any button on the remote control. if light does not flash when a key is depressed, replace the batteries. AquAtic industries, inc.
  • Page 18 SErENiTy FrEESTANdiNg mOdEL CONTrOL BOx wiriNg To 120 vac minimum 15 amp dedicated gFCi protected circuit Not used Blower To Key Pad To ir Sensor Not used Control Key Pad infrared Sensor Flow Blower One way Valve AquAtic industries, inc.
  • Page 19 SErENiTy FrEESTANdiNg mOdEL CONTrOL BOx wiriNg To 120 vac minimum 15 amp dedicated gFCi protected circuit Not used To Blower To Key Pad To ir Sensor Not used Control Key Pad infrared Sensor Flow One way Valve Blower AquAtic industries, inc.

  • Page 20: Serenity 27 Installation And Maintenance Instructions

    8. if the blower will be installed in an enclosure, you must provide a minimum 4”x 4” opening for ventilation. NOTE: Because the Serenity 27 is a one-of-a-kind bath, dimensions may vary up to several inches. Please take all measurements directly from the bath. AquAtic industries, inc.
  • Page 21 15 amp dedicated Not used To Blower gFci protected circuit To Key Pad To ir Sensor Not used hartford infrared Loop Key Pad Sensor 2” Overflow hole One way Valve is under Tub Control Flow Blower One way Valve AquAtic industries, inc.
  • Page 22 Aquatic recommends the above cleaning process on your air bath once a month.

  • Page 23: Electronic Control Panel

    3 minutes (once the sensors are dry) to purge the air channels after any contact with water, including after a shower or cleaning/rinsing of the bath. the two water sensors are located near the drain. not included on freestanding models. AquAtic industries, inc.

  • Page 24: Purge 24 Hours

    PurgE 24 hOurS: it is possible for the user to program a purge cycle that will start every day for a duration of 1 minute. Aquatic strongly recommends activating this feature. the purge cycle will help ensure that the air channels stay dry even when you have taken a soaking bath or shower.
  • Page 25 3. replace cap ensuring that waterproof gaskets are correctly positioned and cap is well screwed on. NOTES: • You can use a coin to unscrew cap. • when replacing batteries, it is recommended to add a lubricant (e.g. Vaseline) on cap gaskets to ensure perfect water tightness. AquAtic industries, inc.

  • Page 26: Maintenance And Care

    Aquatic recommends the above cleaning process on your air bath once a month.

  • Page 27: Fcc Consumer Information

    Your installer should have a service access panel in this location. the numbers are located on the bottom of the tub on freestanding models. Look for a label which resembles the one on the right. AquAtic industries, inc.

  • Page 28: Troubleshooting Guide

    SErENiTy aIr BatHs rePLAceMent PArts Order MAP 4) ANd 14) CONTrOL PANEL 5) LighT wALL FiTTiNg 1) Air BLOwEr 7) ChrOmAThErAPy LighT 3) ChECK VALVE (ONE wAy 2) CONTrOL BOx VALVE) AquAtic industries, inc.

  • Page 29: Parts List

    901803grAB Polished nickel 901804grAB gold 901805grAB Oil rubbed Bronze 19.) grab Bar 9017wHgrAB white 9017BigrAB Biscuit 901710grAB chrome 901720grAB Brass 901760grAB satin nickel 901770grAB Polished nickel 901740grAB gold 901780grAB Oil rubbed Bronze 4174AcrOd clear Acrylic/specify Model # AquAtic industries, inc.

  • Page 30: Replacement Parts Order Form

    2. using map number and letter, choose part number and select color (or finish) on parts list provided on page 29. 3. Fill out the form below with the selected information. Fax or send to Aquatic. 4. call Aquatic for parts pricing and shipping charges.

  • Page 31: Aquatic Limited Warranty

    ExCLuSiVE rEmEdy Aquatic industries, inc. will, at its option, repair or replace (without removal or installation) the affected components of any defective unit or system; repair or replace (without removal or installation) the entire defective unit or system; or refund the then-current list price of the whirlpool, Air Bath, or tub. in all cases, a reasonable time period must be allowed for warranty repairs to be completed.
  • Page 32 P.O. Box 889 Leander, Texas 78646-0889 • 11880 RR 2243 W Leander, Texas 78641 (800) 555-5324 FAX: (800) 421-3633 Fax-On-Demand: (877) 618-7024 www.aquaticwhirlpools.com sOM10 9/08...
