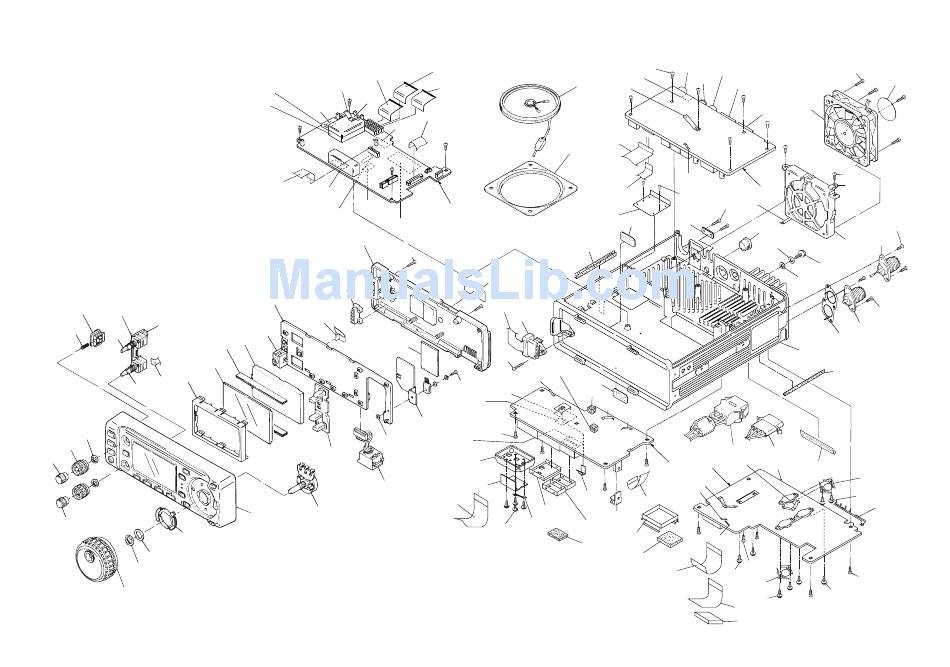

Icom IC-706MKIIG Service Manual page 51

MP15 (FR)
VR BOARD
S1 (V)
MP7 (FR)
R1 (V)
EP2 (D)
DS4 (D)
W1 (FR) MP1 (D)
R2 (V)
MP9 (FR)
MP11 (FR)
MP10 (FR)
MP26 (FR)
MP18 (FR)+MP20 (FR)
S1 (FR)
MP25 (FR)
MP8 (FR)+MP12 (FR)+MP13 (FR)+MP14 (FR)+MP21 (FR)
Unit abbreviations: (C): CHASSIS PARTS (FR): FRONT PARTS (D): DISPLAY BOARD (M): MAIN BOARD
(PL): PLL UNIT (PA): PA UNIT (FL): FILTER UNIT (H): HPF BOARD (V): VR BOARD
W2 (C)
MP3 (M)+MP14 (M) MP8 (M)
MP2 (M)
MP1 (M)
MP7 ( M)
MP19 (C)
MP4 (M)
EP2 (C)
MP5 (M)
MP10 (M)
MP9 (M)
MP6 (M)
MP2 (FR)
MP23 (FR)
MP19 (FR)
DISPLAY BOARD
W1 (FR)
J2 (D)
DS5 (D)
MP24 (FR)
MP5 (D)
MP4 (D)
MP5 (PL)+MP7 (PL)+
MP23 (PL)
MP4 (FR)
W2 (FR)
S1 (FR)
MP1 (FR)+MP3 (FR)
+MP5 (FR)+MP6 (FR)+MP16 (FR)+MP17 (FR)
6 - 4
W3 (C)
SP1 (C)
W15 (C)+MP86 (C)
W1 (C)+MP85 (C)
MP60 (C)
MAIN BOARD
MP74 (C)
MP79 (C)
MP22(FR)
EP2 (C)
MP12 (C)
MP24 (C)
MP27 (PL)
MP25 (PL)
MP3 (D) MP49 (C)
MP9 (PL)+MP10 (PL)
MP26 (PL)
MP11 (PL)
MP27 (C)
MP13 (PL)
MP24 (PL)
MP11 (C)
W16 (C)
MP19 (PL)
MP16 (PL)
MP6 (PL)+MP8 (PL)
MP14 (PL)
MP28 (PL)
MP28 (C)
J4 (FL)
J8 (FL)
J11 (FL)
J7 (FL)
J5 (FL)
MP3 (FL)
J14 (FL)
W2 (C)
MP1 (FL)
FILTER BOARD
W3 (C)
MP75 (C)
MP89 (C)
MP63 (C)
MP76 (C)
MP49 (C)
EP1 (C)
MP22 (C)
MP30 (PL)
MP31 (PL)
P8 (PA)
J19 (PA)
MP101 (PA)
PLL UNIT PA UNIT
J641 (PA)
MP233 (PA)
MP502 (PA)
W1 (C)+WP85 (C)
MP77 (C)
MP1 (PL)
MP501 (PA)
MP21 (PL)
MP37 (C)
W15 (C)+MP86 (C)
MP63 (C)
MP234 (PA)
MP33 (C)
W14 (C)
MP87 (C)
MP62 (C)
MP40 (C)
MF1 (C)
MP65 (C)
MP83 (C)
MP20 (C)
J3 (C)
MP7 (C)
MP8 (C)
MP25 (C)
MP32 (C)
J4 (C)
MP17 (C)
MP1 (C)
MP81 (C)
MP80 (C)
MP231 (PA)
MP35 (C)
MP232 (PA)
MP26 (C)
MP34 (C)
