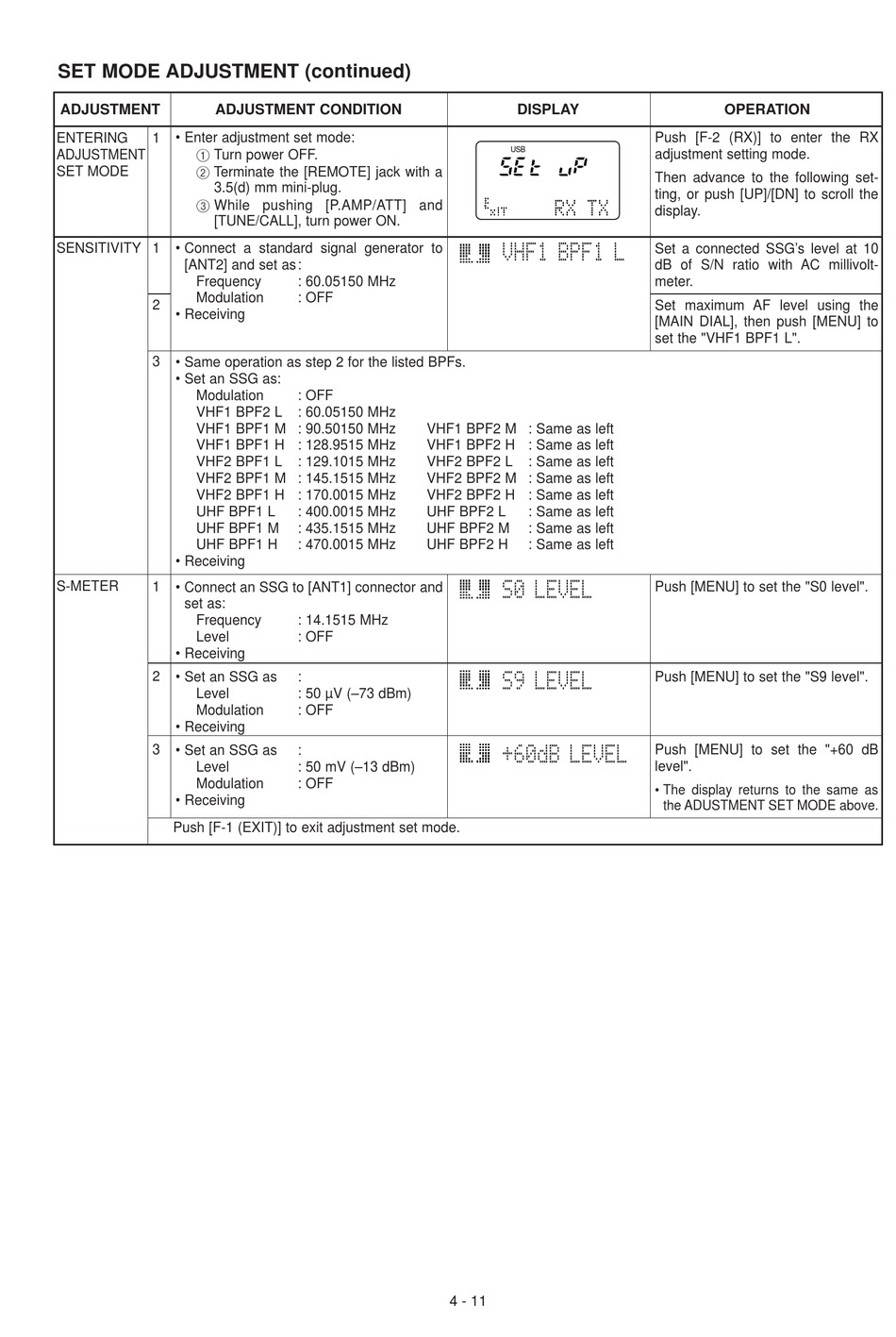

Icom IC-706MKIIG Service Manual page 25

SET MODE ADJUSTMENT (continued)
ADJUSTMENT ADJUSTMENT CONDITION
• Enter adjustment set mode:
ENTERING 1
ADJUSTMENT 1 Turn power OFF.
SET MODE 2 Terminate the [REMOTE] jack with a
3.5(d) mm mini-plug.
3 While pushing [P.AMP/ATT] and
[TUNE/CALL], turn power ON.
SENSITIVITY 1 • Connect a standard signal generator to
[ANT2] and set as :
Frequency
Modulation
2
• Receiving
3
• Same operation as step 2 for the listed BPFs.
• Set an SSG as:
Modulation
VHF1 BPF2 L
VHF1 BPF1 M : 90.50150 MHz
VHF1 BPF1 H : 128.9515 MHz
VHF2 BPF1 L
VHF2 BPF1 M : 145.1515 MHz
VHF2 BPF1 H : 170.0015 MHz
UHF BPF1 L
UHF BPF1 M
UHF BPF1 H
• Receiving
S-METER 1
• Connect an SSG to [ANT1] connector and
set as:
Frequency
Level
• Receiving
2 • Set an SSG as
Level
Modulation
• Receiving
3
• Set an SSG as
Level
Modulation
• Receiving
Push [F-1 (EXIT)] to exit adjustment set mode.
: 60.05150 MHz
: OFF
: OFF
: 60.05150 MHz
VHF1 BPF2 M : Same as left
VHF1 BPF2 H : Same as left
: 129.1015 MHz VHF2 BPF2 L
VHF2 BPF2 M : Same as left
VHF2 BPF2 H : Same as left
: 400.0015 MHz UHF BPF2 L
: 435.1515 MHz UHF BPF2 M
: 470.0015 MHz UHF BPF2 H
: 14.1515 MHz
: OFF
:
: 50 µV (–73 dBm)
: OFF
:
: 50 mV (–13 dBm)
: OFF
4 - 11
DISPLAY
Push [F-2 (RX)] to enter the RX
USB
adjustment setting mode.
Then advance to the following set-
ting, or push [UP]/[DN] to scroll the
RX TX
display.
VHF1 BPF1 L
Set a connected SSG's level at 10
dB of S/N ratio with AC millivolt-
meter.
Set maximum AF level using the
[MAIN DIAL], then push [MENU] to
set the "VHF1 BPF1 L".
: Same as left
: Same as left
: Same as left
: Same as left
S0 LEVEL
Push [MENU] to set the "S0 level".
S9 LEVEL
Push [MENU] to set the "S9 level".
+60dB LEVEL
Push [MENU] to set the "+60 dB
level".
• The display returns to the same as
the ADUSTMENT SET MODE above.
OPERATION
