Icom ID-800H Operating Manual page 2

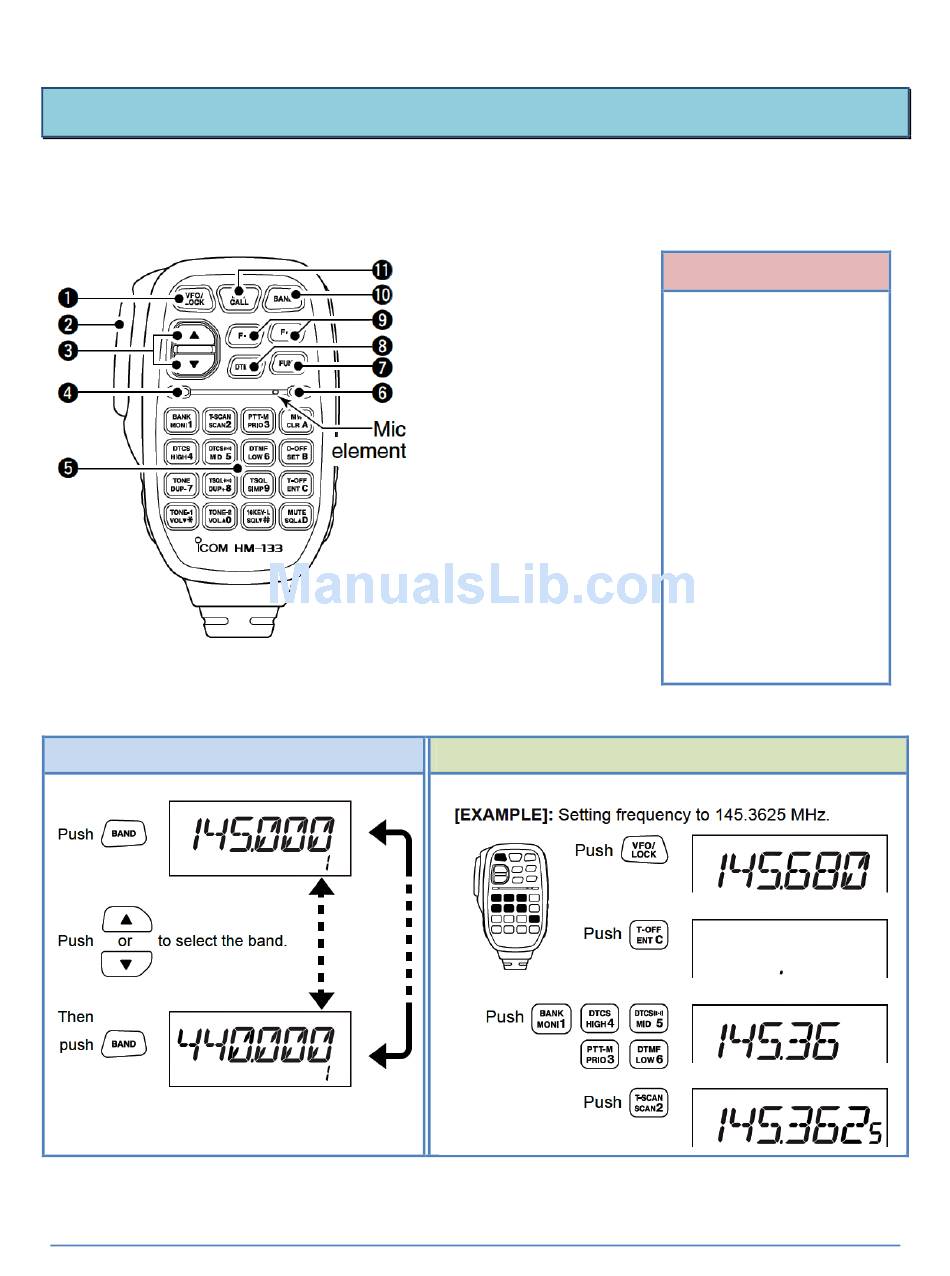

Using the HM-133 Microphone
You can use the keypad and buttons on the HM-133 microphone to perform many of the
common tasks required for operating the radio, including selecting a frequency band and
directly entering a frequency.
Select a Frequency Band
Icom ID–800H Mini–Operating Guide by W5JCK, September 2007
1
VFO/Lock Switch
2
PTT Switch
3 Up/Down Switches →
4
Activity Indicator
5
Keypad
6
Function Indicator
7
nd
2 function Switch
8
DTMF Select switch
9
Function Switches
10 Band Switch
11 Memory/Call Switch
Directly Enter a Frequency
Using the ▲/▼ Keys
Select a Frequency
Press ▲ or ▼ to select a
frequency (in VFO mode)
or memory channel (in
Memory mode).
Start a Scan
Press and hold ▲ or ▼
for 1 sec. to activate the
scan mode.
Stop a Scan
Press ▲ or ▼ to cancel
the scan.
→
Select a Band
BAND
Press [ ] then press
▲ or ▼ to select band.
BAND
Press [ ] again to
activate the desired band.
