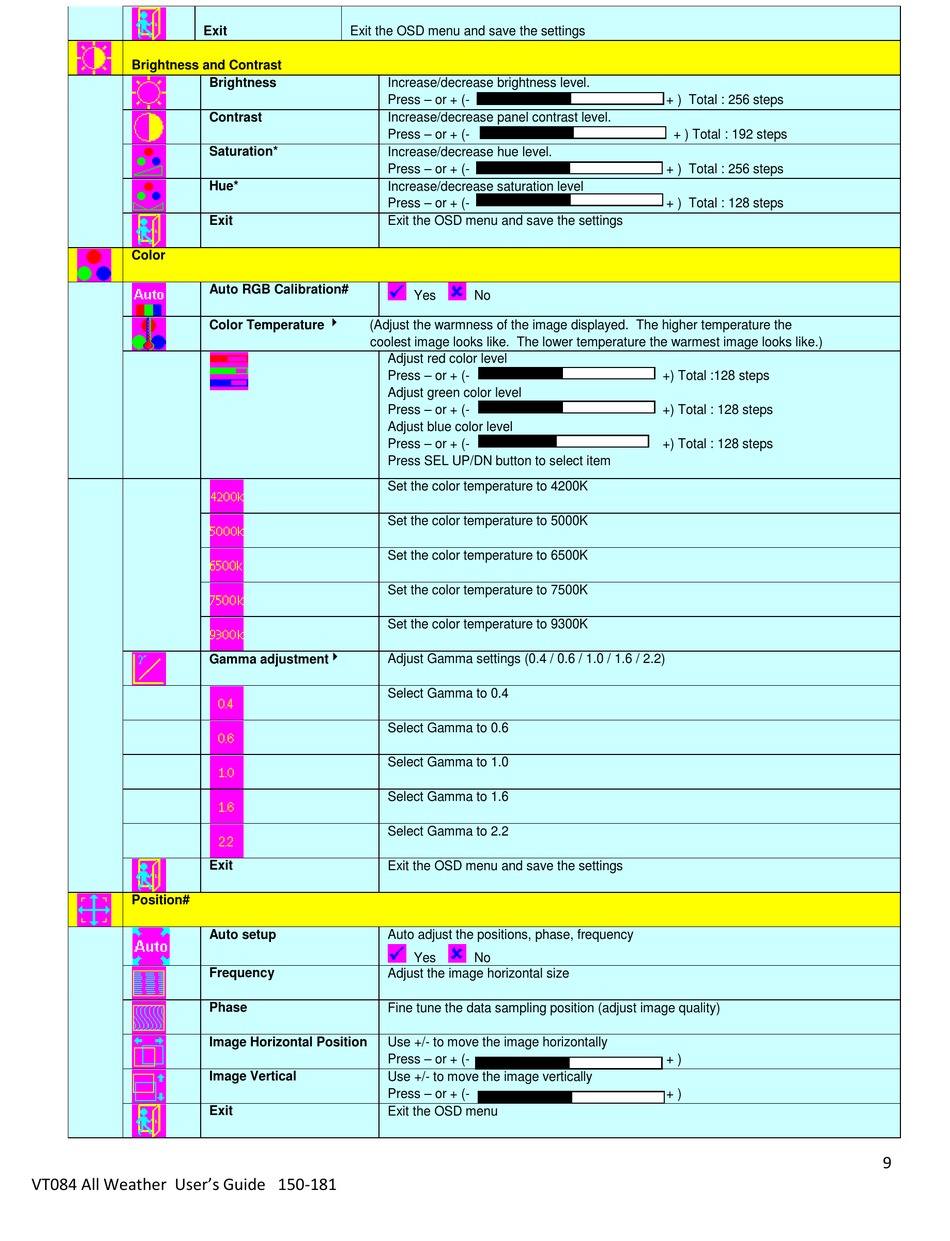

VarTech Systems VT084XA4 User Manual page 9

All weather series lcd monitors
Table of Contents

Advertisement

Exit
Brightness and Contrast
Brightness
Contrast
Saturation*
Hue*
Exit
Color
Auto RGB Calibration#
Color Temperature 
Gamma adjustment
Exit
Position#
Auto setup
Frequency
Phase
Image Horizontal Position
Image Vertical
Exit
VT084 All Weather User's Guide 150-181
Exit the OSD menu and save the settings
Increase/decrease brightness level.
Press – or + (-
Increase/decrease panel contrast level.
Press – or + (-
Increase/decrease hue level.
Press – or + (-
Increase/decrease saturation level
Press – or + (-
Exit the OSD menu and save the settings
Yes
No
(Adjust the warmness of the image displayed. The higher temperature the
coolest image looks like. The lower temperature the warmest image looks like.)
Adjust red color level
Press – or + (-
Adjust green color level
Press – or + (-
Adjust blue color level
Press – or + (-
Press SEL UP/DN button to select item
Set the color temperature to 4200K
Set the color temperature to 5000K
Set the color temperature to 6500K
Set the color temperature to 7500K
Set the color temperature to 9300K
Adjust Gamma settings (0.4 / 0.6 / 1.0 / 1.6 / 2.2)
Select Gamma to 0.4
Select Gamma to 0.6
Select Gamma to 1.0
Select Gamma to 1.6
Select Gamma to 2.2
Exit the OSD menu and save the settings
Auto adjust the positions, phase, frequency
Yes
No
Adjust the image horizontal size
Fine tune the data sampling position (adjust image quality)
Use +/- to move the image horizontally
Press – or + (-
Use +/- to move the image vertically
Press – or + (-
Exit the OSD menu
+ ) Total : 256 steps
+ ) Total : 192 steps
+ ) Total : 256 steps
+ ) Total : 128 steps
+) Total :128 steps
+) Total : 128 steps
+) Total : 128 steps
+ )
+ )
9
