The Printhead Adjustment Screw, located on top of the Printhead Carrier Assembly, is used to mechanically
adjust print quality. Printhead placement is factory-set and should not need further adjustment; however,
with the different types and thicknesses of media, readjustment may be necessary when print quality suffers.
Printhead Adjustment should only be performed after attempting to improve print quality through the use of
other print quality controls (see Section 3.5).
To adjust the printhead, turn the Printhead Adjustment Screw until optimum print quality is obtained (some
trial and error may be necessary). Do not over tighten the Printhead Adjustment Screw.
Chapter 4 – Maintenance and Adjustments
A
d
j
u
s
t
m
e
n
t
A
d
j
u
s
t
m
e
n
t
A
d
j
u
s
t
m
e
n
t
312
3

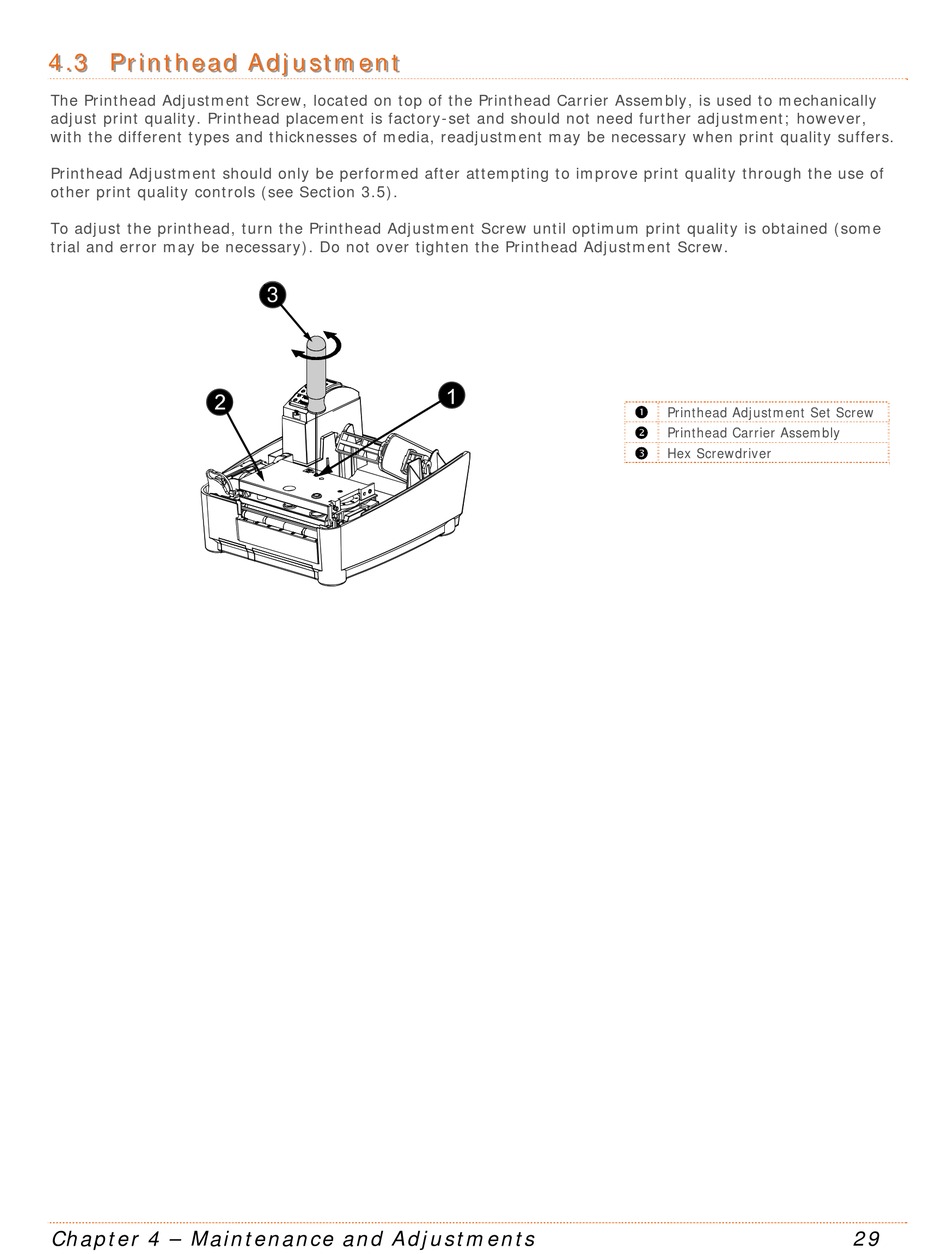

Printhead Adjustment Set Screw
Printhead Carrier Assembly
Hex Screwdriver
