Quadra-Fire QV36DB-A Owner's Manual page 6

Standing Pilot Ignition
Valve Assembly
IMPORTANT: THIS IS DATED INFORMATION. When Requesting service or
replacement parts for your appliance please provide model number and serial number.
All parts listed in this manual may be ordered from an authorized dealer.
ITEM
1 Pilot Bracket
Pilot Assembly NG
2
Pilot Assembly LP
3 Shutter Assembly
4 Shutter Bracket Assembly
5 Valve Bracket
Flex Ball Valve Assembly
6
7 Control Panel
Piezo Ignitor
8
9 Pilot Control Knob
Flame Control Knob
10
11 ON/OFF Rocker Switch
Valve NG
12
Valve LP
Wire Assembly
13
Flexible Gas Connector
14
Orifice NG (3.1 MM)
15
Orifice LP ( 1.8 MM)
6
Service Parts

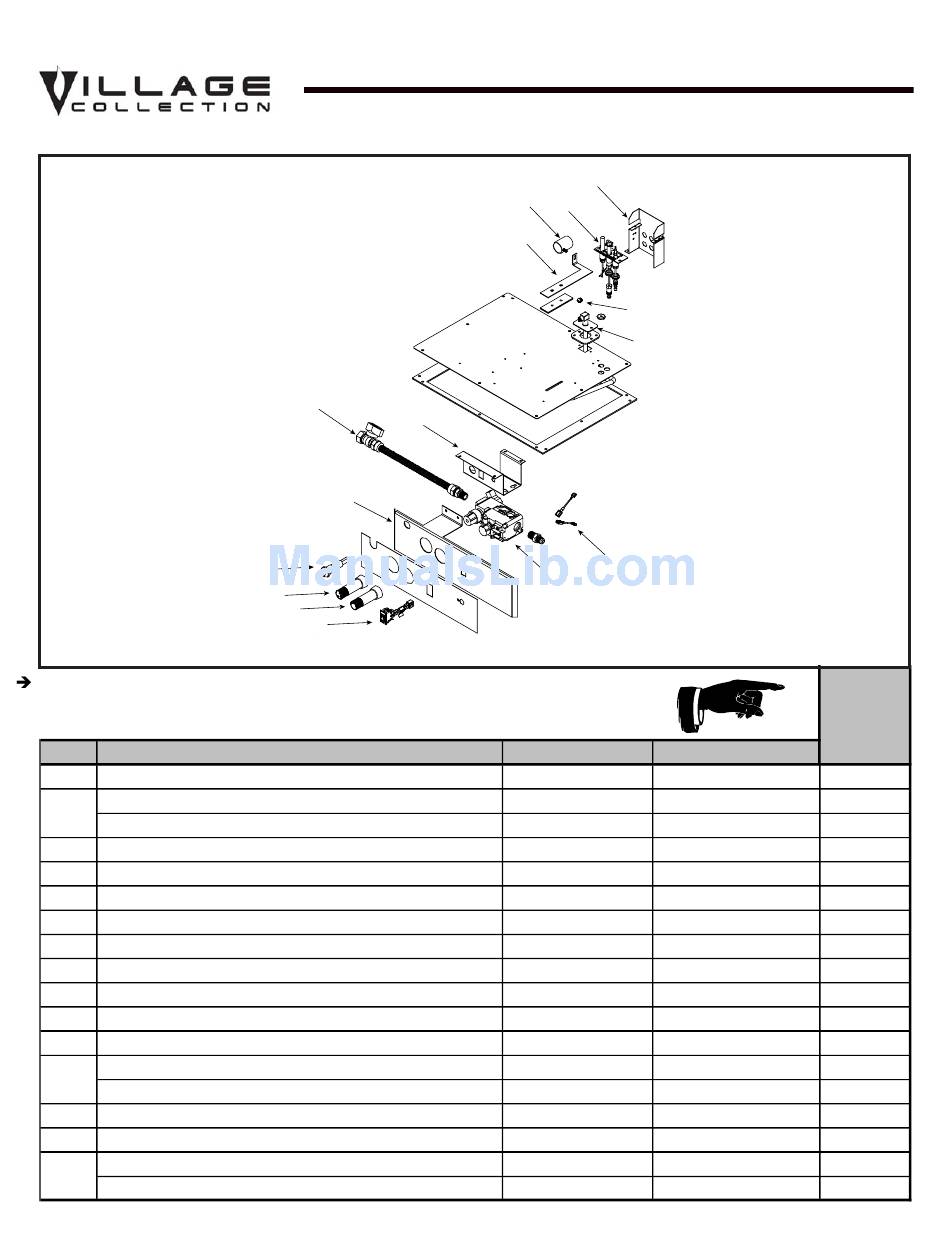

Valve Assembly Diagram
6
5
7
8
9
10
11
DESCRIPTION
Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07
QV36DB-A
Beginning Manufacturing Date: June 2003
Ending Manufacturing Date: ______
1
3
2
4
15
14
13
12
