Quadra-Fire QV36DB-A Owner's Manual page 16

VENTING WITH ONE (1) 90° ELBOW
V
1' MIN. (305mm)
2' MIN. (610mm)
3' MIN. (914mm)
4' MIN. (1.22m)
V+H=40' MAX. (12.4m)
NOTE: On vertical venting configurations where
the vertical component is over 10 feet install
the vertical baffle included in the manual bag
assembly to improve flame appearance.

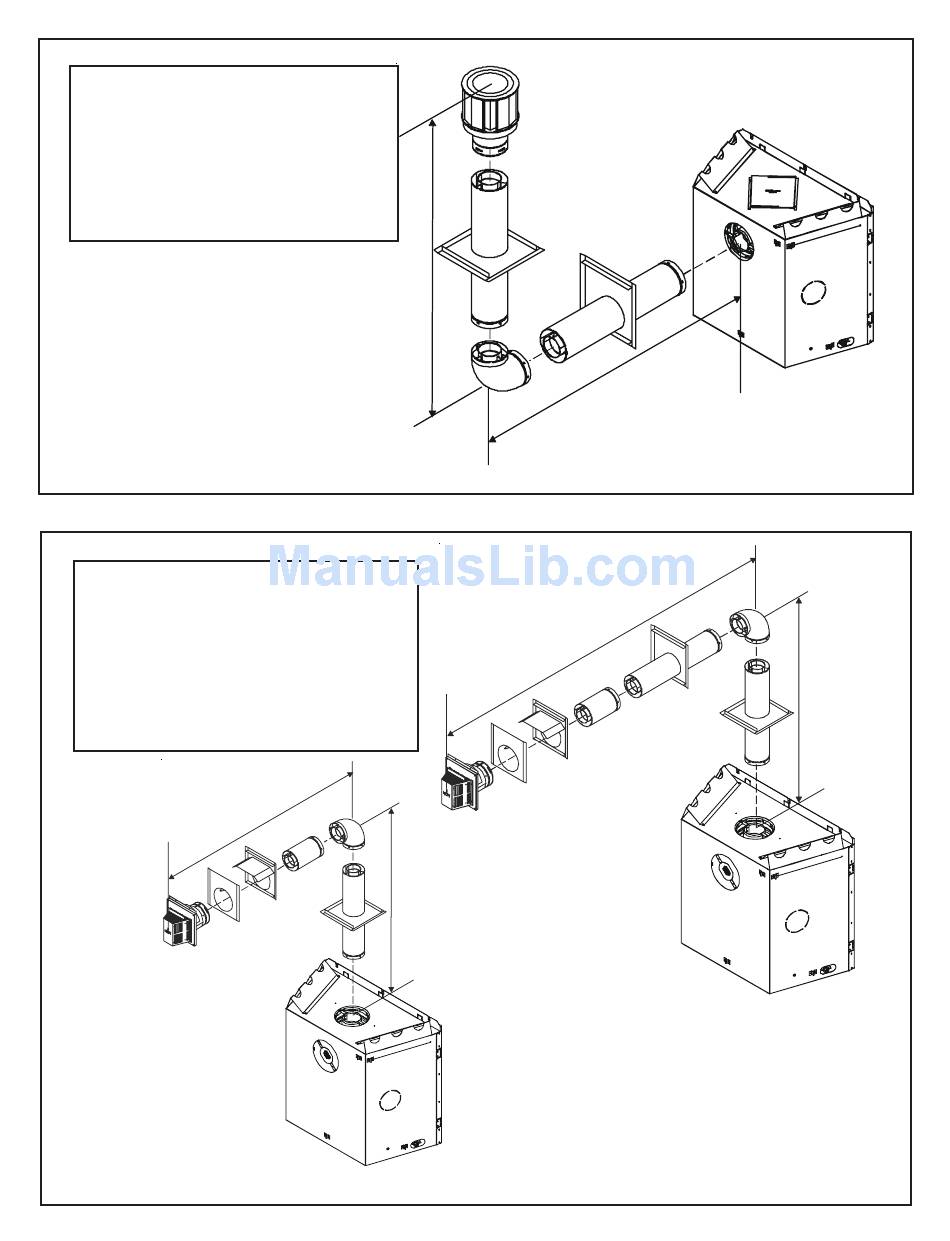

Figure 11. Venting with One 90° Elbow
VENTING WITH ONE (1) 90° ELBOW
V (FT.)
1' MIN. (305mm)
2' MIN. (610mm)
3' MIN. (914mm)
4' MIN. (1.22m)
V+H= 40' MAX. (12.4MM) H = 20' MAX. (6.2m)
NOTE: If a 90 o elbow is
first attached to the unit,
the maximum horizontal
run is 3-feet (914mm).
Figure 12. Venting with One 90° Elbow
16
H
2' MAX. (610mm)
4' MAX. (1.22m)
6' MAX. (1.86m)
8' MAX. (2.4m)
H = 8' MAX. (2.4m)
V
H (FT.)
5' MAX. (1.52m)
10' MAX. (3.1m)
15' MAX. (4.65m)
20' MAX. (6.2m)
H
V
Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07
H
H
NOTE: For corner installations: A 6-inch (152mm)
section of straight pipe may need to be attached to
the fireplace before a 90 o
pipe to clear the top standoffs.
V
elbow, to allow the vent
