Summary of Contents for Hunter 41877-01

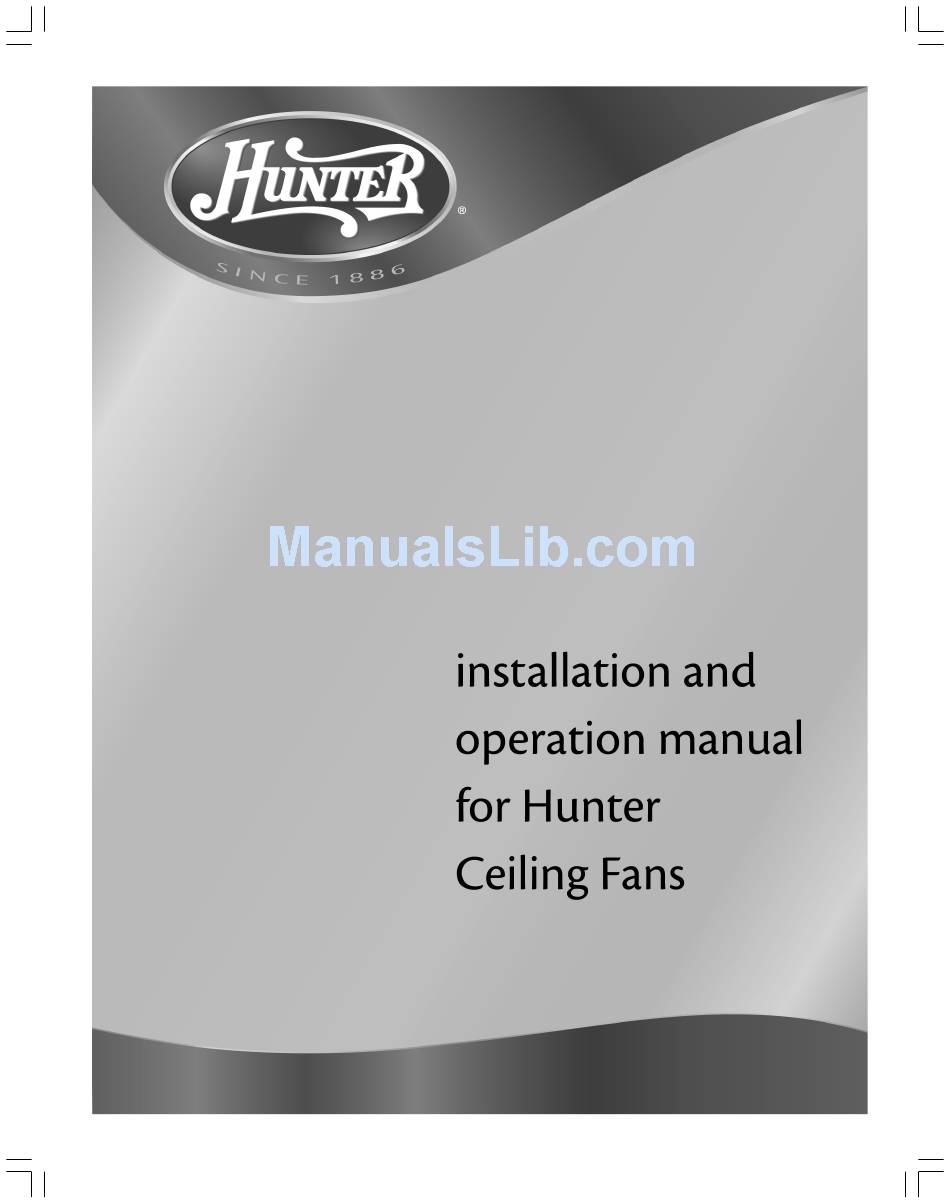

- Page 1 © 2005 Hunter Fan Company 41877-01 06/14/2007...
-
Page 2: Getting Ready
Identify and connect electrical wires. • Lift 40 pounds. If you need help installing the fan, your Hunter fan dealer can di- rect you to a licensed installer or electrician. gathering the tools You will need the following tools for installing the fan: •... -
Page 3: Outlet Box
Figure 3 - Minimum mounting distances 41877-01 06/14/2007 using an existing fan site If you are preparing a new fan site, go to the preparing a new fan site section. If you plan to use an existing fan site, complete the following checklist for the support brace, ceiling hole, outlet box, and wiring. -
Page 4: Preparing The Wiring
Thread the fan supply line through the outlet box so that the fan supply line extends at least 6" beyond the box as shown in Figure 7. Attach the fan supply line to the outlet box with an approved connector, available at any hardware store or electrical supply house. -
Page 5: Hanging The Fan
Figure 10 - Assembling the downrod hanging the fan Raise the fan and place the hook through the loop on the ceil- ing plate as shown in Figure 11. Use the note and arrow en- graved in the ceiling plate to assist in determining the direc- tion to assemble. -
Page 6: Installing The Canopy
Rotate the fan 180º clockwise from the initial position when hanging the fan. The arrows on the hanger ball and on the ceil- ing plate should be pointing in the same direction and should be pointing towards the tab hole on the canopy. Refer to Fig- ure 13. -
Page 7: Installing The Light Fixture
Install the cap and plug button as shown in Figure 20. Figure 20 - Installing the cap and plug button Fitter Cover Fitter Globe Assembly Fitter Remove these screws Plug Button © 2007 Hunter Fan Company... -
Page 8: Troubleshooting
Turn on electrical power to the fan. The fan pull chain controls power to the fan. The pull chain has four settings in sequence: High, Medium, Low and Off. • Pull the chain slowly to change settings.
