Hunter 25522 Parts Manual

Hardware
(Drawn to Scale)
x 2
x 4
x 2
x 4
x 1
x 4
x 6
Balancing
x 1
Kit
x 3
Wire
x 4
Connector
3" Wood Screw
Flat Washer
Hanger
Bracket
Assembly
1.5" Wood Screw
Canopy Screw
Setscrew
Mounting Isolator
Screw, Blade
Iron Armature
Blade
Assembly
Screw,
Switch
Machine, 6-32
Housing
Assembly
Fan Parts
(Not Drawn to Scale)

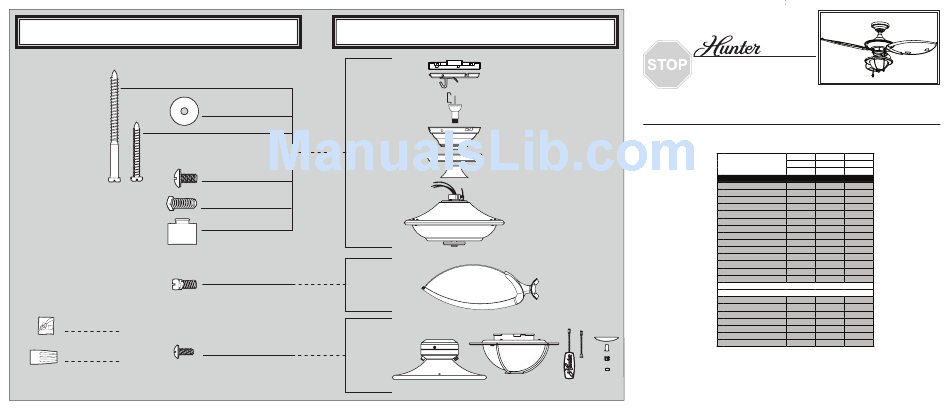

PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all Using this Parts Guide, make sure all
parts are included in the box. parts are included in the box.
If parts are missing, DO NOT RETURN If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance. THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY. THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS. REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Model #

Parts List

Asm. Dwg. # 97434-01
Finish New Bronze
Item Name Qnty
Ceiling Plate 1 74781-01
Canopy 1 94266-01
Ceiling Plate Gasket 1 84706-01
Wood Screw 2 03144-05
Wood Screw 2 06512-03
Flat Washer 4 06301-02
Setscrew 1 03009-04
Canopy Screw 3 74506-23
Adapter Cover 1 75079-01
Adapter Gasket 1 74392-01
Light Kit Assembly 1 87646-01
Blade 3 94804-01
Screw, Blade Iron Armature 6 63755-06
Hardware Kit 1 97434-00-860 97434-00-861
Screw, Machine, 6-32
Wire Connector
Balancing Kit 1 65666-01
Globe/Shade 1 85606-01
Dummy Terminal, Male 1 08198-01
Dummy Terminal, Female 1 08200-01
Cap, Switch Housing 1 73853-01
Plug Button 1 73854-01
CFL Bulb 1 66898-01
