Summary of Contents for Hunter 41897-01

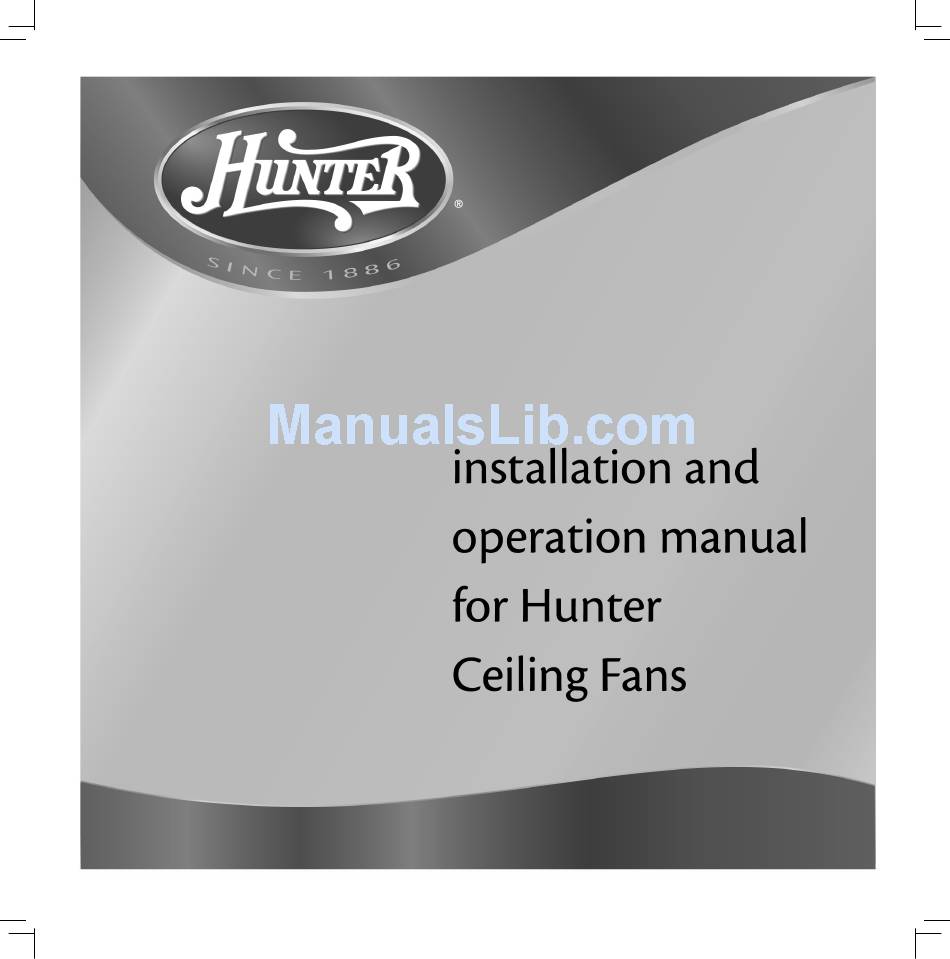

  • Page 1 41897-01 • 11/22/05...
  • Page 2: Table Of Contents

    • Read this entire manual carefully before beginning installation. Save these instructions. • Use only Hunter replacement parts. • To reduce the risk of personal injury, attach the fan directly to the support structure of the building according to these instructions, and use only the hardware supplied.
  • Page 3 Understanding Mounting Hunter’s patented mounting system provides you maximum installation fl exibility and ease. You can install your Hunter fan in one of two ways, depending on your preference: Standard or Angle mounting. Your fan may only be installed on ceilings 8 feet or higher.
  • Page 4: Getting Ready

    • Drill holes for and install wood screws. • Identify and connect electrical wires. • Lift 40 pounds. If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician. Gathering the Tools You will need the following tools for installing the fan: •...
  • Page 5: Assembling The Fan For Ceilings 8-10 Feet High

    To install the fan on ceilings 8-10 feet high, follow the steps in this section. (Skip to the next section if you are installing the fan on a ceiling 10 feet or higher.) 2-1. Remove the two assembly screws in the upper clamp.
  • Page 6: Assembling The Fan For Ceilings 10 Feet Or Higher

    3-1. Loosen the square head set screw in the adapter. Loosen the set screws and the assembly screws on the twig clamp. 3-2. read the wires from the fan through the canopy trim ring and spindle. en thread the wires through the pipe and twig assembly.
  • Page 7: Installing The Ceiling Plate

    e pilot holes should be 9/64” in diameter. 4-2. Your fan comes with four neoprene noise isolators (“Isolators”). Position the isolators between the ceiling plate and ceiling by inserting the raised areas on each isolator into the holes in the ceiling plate.
  • Page 8: Assembling The Blades And Hanging The Fan

    Insert a second blade iron mounting screw, then securely tighten both screws. 5-5. Raise the fan and place the hook on the ceiling plate through the U-shaped hole in the rim of the canopy. WARNING: Fan may fall if not assembled as directed in these installation instructions.
  • Page 9: Wiring The Fan

    6-1. Disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. 6-2. Decide how you want to set up the fan and light controls. You can control the fan and/or lights together or separately using one or two wall switches.
  • Page 10: Installing The Canopy And Canopy Trim Ring

    Steps 7-4 – 7-5 Hunter Fan Company 7-1. Holding the canopy, raise the fan off the hook. 7-2. Align the slots in the canopy with the tabs on the ceiling plate. 7-3. Raise the canopy over the ceiling plate. Rotate the canopy clockwise until the tabs on the ceiling plate totally engage with the slots in the canopy.
  • Page 11: Assembling The Light Fixture

    8-1. To attach the light fixture, partially install two #6-32 x 3/8” assembly screws. 8-2. Connect the 9-pin plug from the fan housing to the connector from the light kit. 8-3. Place the keyhole slots in the light fixture over the partially installed screws.
  • Page 12: Operating And Cleaning Your Ceiling Fan

    Hunter Fan Company 9-1. Turn on electrical power to the fan. 9-2.  e fan pull chain controls power to the fan.  e pull chain has four settings in sequence: High, Medium, Low and Off . • Pull the chain slowly to change settings.
  • Page 13: Troubleshooting

    2. Tighten all blade and/or blade iron screws. 3. Turn power off , support fan very carefully, and check that the hanger ball is properly seated. If you need parts or service assistance, please call 888-830-1326 or visit us at our Web site at http://www.hunterfan.com.
