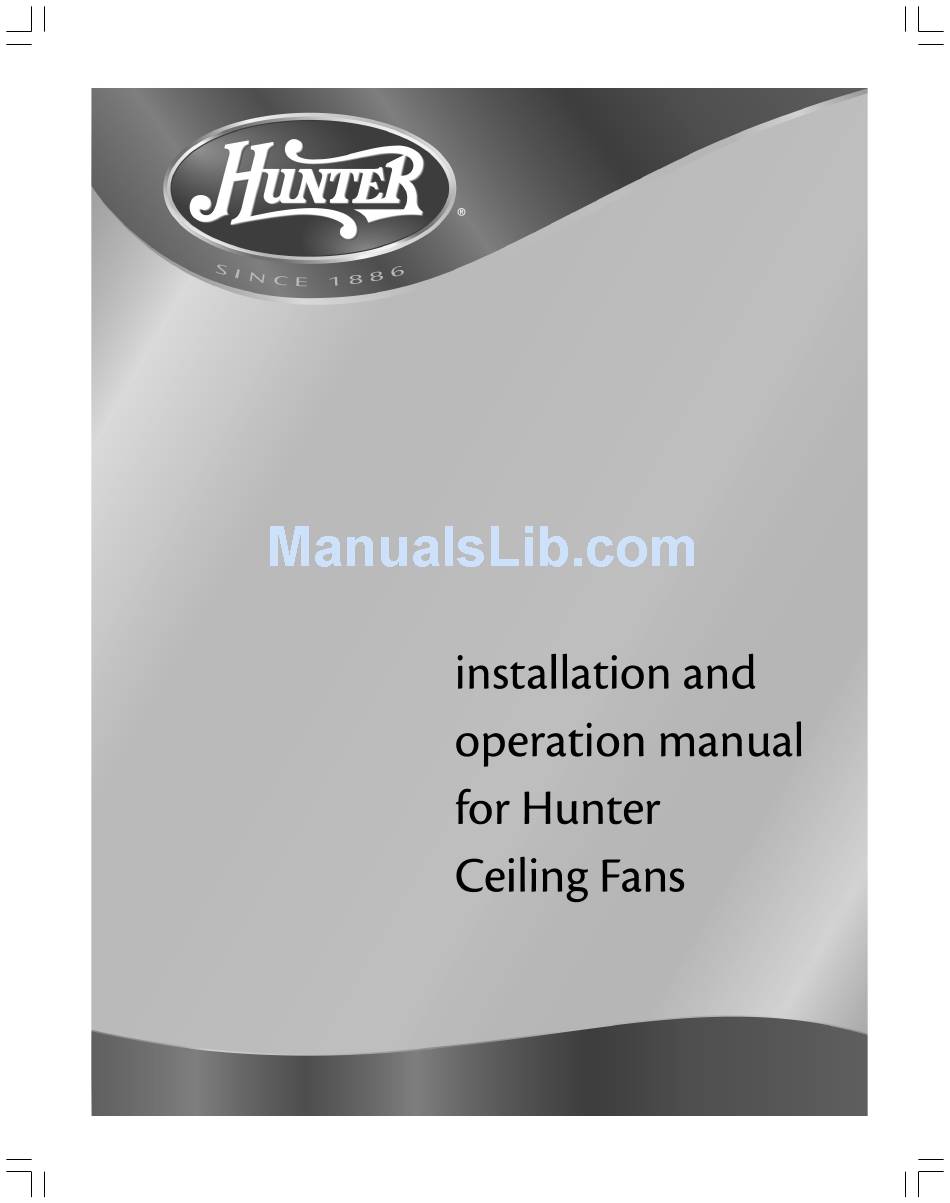

- Page 1 © 2005 Hunter Fan Company 41892-01 03/17/2005 41892-01_Rev 03.17.05.pmd 3/18/05, 8:44 PM...
-
Page 2: Cautions And Warnings
If any parts are missing or damaged, contact your Hunter dealer or call Hunter Parts Department at 888-830-1326. choosing your mounting position You can install your Hunter fan in one of two ways. The steps in this manual include specific instructions for the fan mounting method of your choice. -
Page 3: Preparing The Fan Site
© 2005 Hunter Fan Company 41892-01_Rev 03.17.05.pmd using an existing fan site If you are preparing a new fan site, go to the preparing a new fan site section. 34 º Max If you plan to use an existing fan site, complete the following checklist for the support brace, ceiling hole, outlet box, and wiring. -
Page 4: Preparing The Wiring
Thread the fan supply line through the outlet box so that the fan supply line extends at least 6" beyond the box as shown in Figure 7. Attach the fan supply line to the outlet box with an approved connector, available at any hardware store or electrical supply house. -
Page 5: Assembling The Fan
Figure 12 - Assembling the upper motor housing assembling the fan Insert the downrod through the canopy and canopy trim ring as shown in Figure 13. Feed wires from the fan through the downrod. Screw the downrod into the fan assembly until tight. -
Page 6: Hanging The Fan
Raise the fan and place the hook through the loop on the ceil- ing plate as shown in Figure 14. Use the note and arrow en- graved in the ceiling plate to assist in determining the direc- tion to assemble. -
Page 7: Assembling The Blades
© 2005 Hunter Fan Company 41892-01_Rev 03.17.05.pmd assembling the blades Hunter fans use several styles of fan blade irons (brackets that hold the blade to the fan). Your fan may include blade grommets. If your fan has grom- mets, insert them by hand into the holes on the blades as shown in Figure 20. -
Page 8: Installing The Switch Housing
Lower Plug Upper Plug Connector Connector Lower Switch Housing Threaded Lamp Holder Globe Threaded Locking Ring Figure 25 - Multifixtures Beginning of First Thread Threaded Locking Ring Notch in Ring Figure 26 - Locking Ring Assembly © 2005 Hunter Fan Company... -
Page 9: Troubleshooting
Figure 27. Figure 27 - Air flow patterns To change the direction of air flow, turn the fan off and let it come to a complete stop. Slide the reversing switch on the fan to the opposite position as shown in Figure 28. Restart fan.
