CycleOps Club IC Service Manual page 3

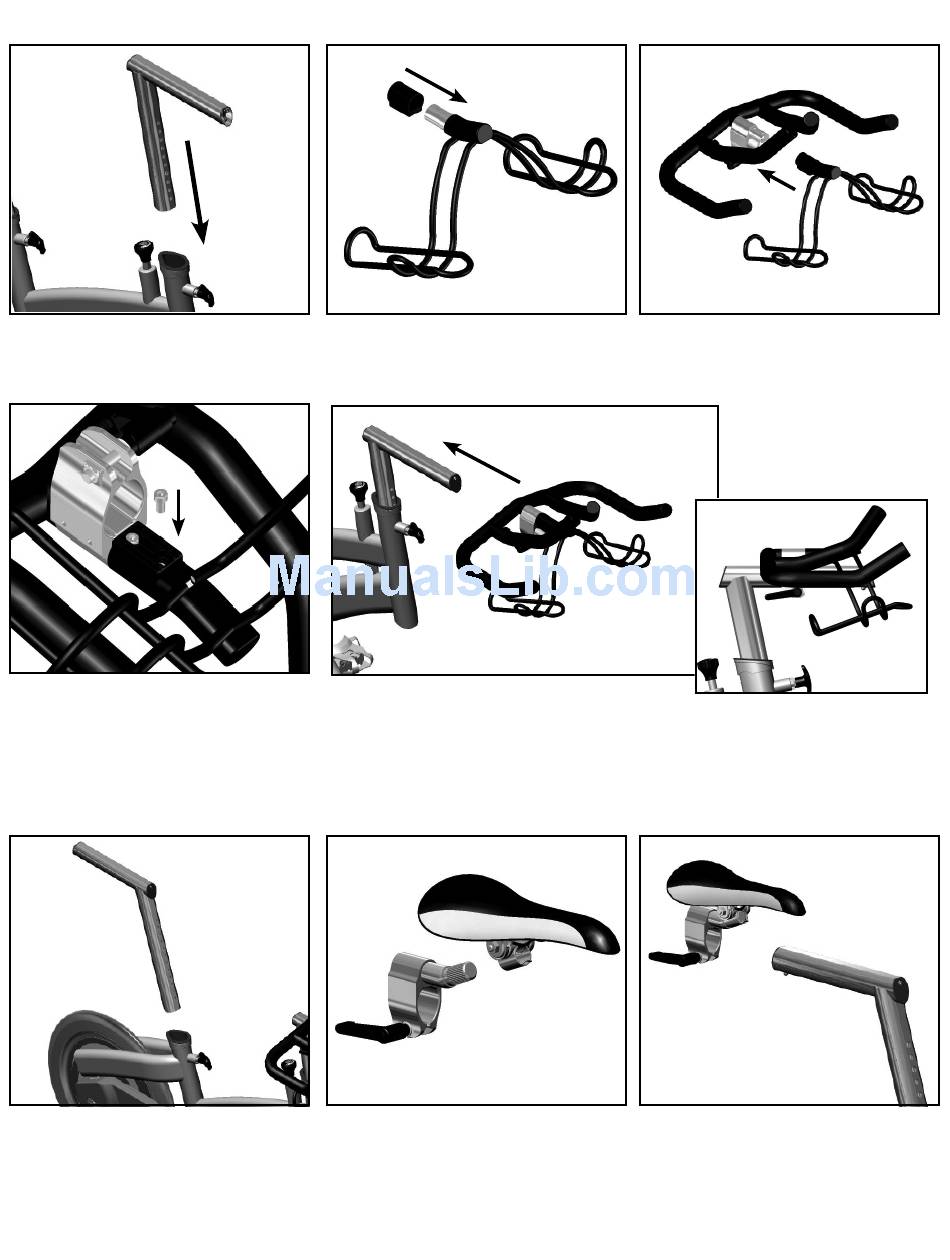

Step 2: Attach Handlebars
Insert the Handlebar post into the head
tube and secure it using the pull-pin.
Affi x water bottle holders and spacer to
handlebar assembly via 2- 4mm allen
bolts
Step 3: Attach Seat/Seat Post
Insert the seat post tube into the indoor
cycle and secure it using the pull-pin.
Slide the plastic shim onto the D-shaped
tube on the water bottle holders.
Carefully slide the handlebar onto the
handlebar post.
Attach the saddle to the saddle clamping
assembly. Slide the saddle clamp onto
the knurled post, making sure the nose
of the saddle and the knurled post point
in the same direction. Finger-tighten the
14mm clamping nut.
Slide the water bottle holder and plastic
spacer onto the handlebar assembly.
Once the handlebar is in place,
secure it with the L-shaped
tension handle.
Slide the saddle assembly with saddle
onto the seat post tube.
2
