- Page 1 User’s Guide “STCNP - 5mA” Smart non programmable electronic thermostat for heating cable For further information or to consult this guide online, please visit our Web site. INSSTCNP5MA0612...
- Page 2 WARNING WARNING Before installing and operating this product, the owner and/or installer must read, under- stand and follow these instructions and keep them handy for future reference. If these in- structions are not followed, the warranty will be considered null and void and the manufac- turer deems no further responsibility for this product.

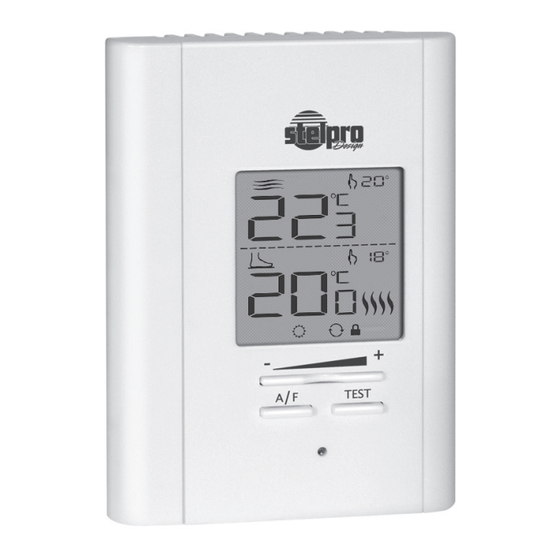

- Page 3 1. Description The STCNP non programmable electronic thermostat can be used to control heating floors with electrical current − with a resistive load − ranging from 0 A to 16 A at 120/208/240 VAC. It has an easy user interface. It keeps the temperature of a room ( mode) and a floor ( mode) at a requested set...
-
Page 4: Installation
Parts supplied: • one (1) thermostat; • two (2) mounting screws; • four (4) solderless connectors suitable for copper wires; • one (1) floor sensor. 2. Installation Thermostat selection and sensor location The thermostat must be mounted on a connection box, at around 1.5 m (5 feet) above the floor level, on a section of the wall exempt from pipes or air ducts. - Page 5 part of the thermostat from the mounting base by tilting it upward. 4. Align and secure the mounting base to the connection box using the two screws supplied. 5. Route wires coming from the wall through the hole of the mounting base and make the required connections us- ing the “Four-wire installation”...
- Page 6 stat wires do not have polarity, meaning that any wire can be connected to the other. Then, connect the wires of the floor temperature sensor at the indicated location behind the thermostat. Four-wire installation 6. Reinstall the front part of the thermostat on the mounting base and tighten the screw at the bottom of the unit.
-
Page 7: Operation
3. Operation (Ambient mode) (Floor mode) Security mode Smart mode Day mode TEST Night mode GFCI button Red Indicator (GFCI Test) First Start-up At the first start-up, the thermostat is initially in the Day and modes. The temperature is displayed in degrees Celsius and the standard factory set point adjustment is 25°C. - Page 8 Temperature set points The figures beside the icon indicate the temperature set points (both in modes). They can be displayed in degrees Celsius or Fahrenheit (see “Display in degrees Cel- sius/Fahrenheit”). Out of any adjustment mode, press down the + button to in- crease the set point, or the - button to decrease it.
- Page 9 Night mode timer The Night mode features a timer that automatically returns to the Day mode after a selectable time period. This timer allows the temporary use of a temperature set point. The standard factory adjustment of the timer is 8 hours. With this adjustment, the thermostat automatically returns to Day mode 8 hours after being switched to the Night mode.
- Page 10 Day mode to the Night mode. It is not necessary to read- just the timer every time you switch to the Night mode. The timer is also reinitialized when this value is adjusted. Once the timer has completed its cycle and when the thermostat is in the Day mode, you must manually return to the Night mode.
- Page 11 Adjustment procedure of the Smart mode: 1. First, switch to the Night mode by simultaneously pressing down the + and - buttons and releasing them immediately. 2. From the Night mode, simultaneously press down the + and - buttons for more than 3 seconds, until the icon starts to blink, indicating that the adjustment of the Night mode timer is effective.
-
Page 12: Temperature Control
(with a maximum set point temperature of 24°C) Sensor Selection If you want to use the STCNP thermostat of Stelpro Design with a temperature sensor already installed in the floor (other than the sensor supplied with this thermostat), you must con- tact the Stelpro Design customer service to validate the com- patibility between the sensor and the thermostat. - Page 13 ing to the mode) with a high degree of accuracy. When the heating starts or stops, it is normal to hear a “clic” sound. It is the noise of the relay which opens or closes, as applicable. Backlighting The screen lights up when you press down a button. If you do not press down any button for more than 15 seconds, the screen turns off.
- Page 14 entire display blinks during 5 seconds. In this case, dis- connect the heating system at the electrical panel. Security mode This mode imposes a maximum temperature set point which is impossible to exceed regardless of the mode in progress. However, it is still possible to lower the set point at your dis- cretion.
- Page 15 Night/ ), the Smart mode, the Security mode, the maxi- mum set point of the Security mode, the Celsius/Fahrenheit mode, the remaining time of the timer and the maximum floor temperature. These parameters are saved every minutes when a change occur, except for the Day/Night mode and the remaining time of the timer, which are saved only if the Smart mode was not activated.
-
Page 16: Troubleshooting
4. Troubleshooting Problem Solution In normal operating conditions, the thermostat housing can reach The thermostat is hot. nearly 40°C at maximum load. It is normal and will not affect the operation of the thermostat. Check if the thermostat is properly Heating is always on. -
Page 17: Technical Specifications
5. Technical Specifications Supply voltage: 120/208/240 VAC, 50/60 Hz Maximum electrical current with a resistive load: 16 A 3840 W @ 240 VAC 3330 W @ 208 VAC 1920 W @ 120 VAC Range of temperature: 0 °C to 35 °C (0 °F to 95 °F) Temperature display resolution: 1 °C (1 °F) Range of the temperature set points:... -
Page 18: Limited Warranty
The warranty is limited to the factory repair or the replacement of the unit, and does not cover the cost of disconnection, transport, and installation. Customer service Stelpro Design Inc. 1041, Parent Street Saint-Bruno-de-Montarville (Quebec) Canada J3V 6L7 Email: contact@stelpro.com Web site: www.stelpro.com... - Page 19 User’s Guide “STCNP - 15mA” Smart non programmable electronic thermostat for heating cable (15mA Version) For further information or to consult this guide online, please visit our Web site. INSSTCNP15MA0612...
- Page 20 WARNING WARNING Before installing and operating this product, the owner and/or installer must read, under- stand and follow these instructions and keep them handy for future reference. If these in- structions are not followed, the warranty will be considered null and void and the manufac- turer deems no further responsibility for this product.
- Page 21 1. Description The STCNP non programmable electronic thermostat can be used to control heating floors with electrical current − with a resistive load − ranging from 0 A to 16 A at 120/208/240 VAC. It has an easy user interface. It keeps the temperature of a room ( mode) and a floor ( mode) at a requested set...
- Page 22 Parts supplied: • one (1) thermostat; • two (2) mounting screws; • four (4) solderless connectors suitable for copper wires; • one (1) floor sensor. 2. Installation Thermostat selection and sensor location The thermostat must be mounted on a connection box, at around 1.5 m (5 feet) above the floor level, on a section of the wall exempt from pipes or air ducts.
- Page 23 part of the thermostat from the mounting base by tilting it upward. 4. Align and secure the mounting base to the connection box using the two screws supplied. 5. Route wires coming from the wall through the hole of the mounting base and make the required connections us- ing the “Four-wire installation”...
- Page 24 must use CO/ALR connectors. Please note that thermo- stat wires do not have polarity, meaning that any wire can be connected to the other. Then, connect the wires of the floor temperature sensor at the indicated location behind the thermostat. Four-wire installation 6.
- Page 25 8. Set the thermostat to the desired setting (see the follow- ing section). Ambient temperature (Ambient mode) Floor temperature (Floor mode) Security mode Smart mode Day mode TEST Night mode EGFPD button Red Indicator (EGFPD Test) INSSTCNP15MA0612...
- Page 26 3. Operation First Start-up At the first start-up, the thermostat is initially in the Day and modes. The temperature is displayed in degrees Celsius and the standard factory set point adjustment is 25°C. The maximum floor temperature is limited to 28°C. Maximum floor temperature limitation At any time, the floor temperature (both in modes)
- Page 27 The thermostat includes a Day mode (Sun) and a Night mode (Moon), both of them having their own independently adjust- able and recorded set point. When switching from one mode to the other, the system will automatically use the tempera- ture set point corresponding to the Day/Night mode selected.
- Page 28 1. First, switch to the Night mode by simultaneously pressing down the + and - buttons and releasing them immediately. 2. From the Night mode, simultaneously press down the + and - buttons for more than 3 seconds until the icon starts to blink, indicating that the adjustment of the Night mode timer is effective.
- Page 29 operating at the day temperature set point. At the end of the 24-hour cycle, the thermostat will return to the Night mode, and the cycle will start again. The 24-hour cycle starts with the Night mode as soon as the Smart mode is activated. The Smart mode activation should be made when you want to return to the Night mode.
- Page 30 the 24-hour cycle, the thermostat will return to the Night mode and start a new cycle. It is thus not necessary to readjust the Smart mode when a manual change is made to the Day/Night mode. If the thermostat is set off (--), the Smart mode will be deactivated.
- Page 31 Sensor Selection If you want to use the STCNP thermostat of Stelpro Design with a temperature sensor already installed in the floor (other than the sensor supplied with this thermostat), you must con- tact the Stelpro Design customer service to validate the com- patibility between the sensor and the thermostat.
- Page 32 Failed test: The red indicator does not light up and the entire display blinks during 5 seconds. In this case, dis- connect the heating system at the electrical panel and call Stelpro’s customer service. Security mode This mode imposes a maximum temperature set point which is impossible to exceed regardless of the mode in progress.
- Page 33 1. To deactivate the Security mode, cut off the power supply of the thermostat at the electrical panel and wait at least 20 seconds. 2. Restore the power supply to the thermostat. The icon will blink during a maximum of 5 minutes, indicating that you can deactivate the Security mode.
- Page 34 4. Troubleshooting Problem Solution In normal operating conditions, the thermostat housing can reach The thermostat is hot. nearly 40°C at maximum load. It is normal and will not affect the operation of the thermostat. Check if the thermostat is properly Heating is always on.
- Page 35 5. Technical Specifications Supply voltage: 120/208/240 VAC, 50/60 Hz Maximum electrical current with a resistive load: 16 A 3840 W @ 240 VAC 3330 W @ 208 VAC 1920 W @ 120 VAC Range of temperature: 0 °C to 35 °C 0 °F to 95 °F) Temperature display resolution: 1 °C (1 °F) Range of the temperature set points:...
- Page 36 The warranty is limited to the factory repair or the replacement of the unit, and does not cover the cost of disconnection, transport, and installation. Customer service Stelpro Design Inc. 1041, Parent Street Saint-Bruno-de-Montarville (Quebec) Canada J3V 6L7 Email: contact@stelpro.com Web site: www.stelpro.com...
