Summary of Contents for Stelpro STE302P

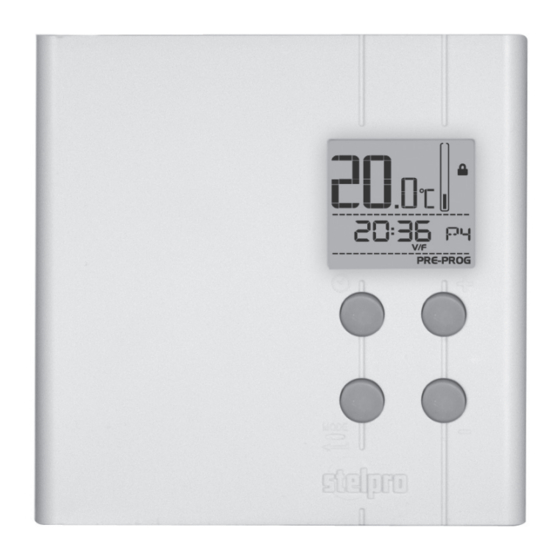

- Page 1 User’s guide « STE302P » Smart programmable electronic thermostat For further information or to consult this guide online, please visit our Web site. STE302P0512...
-
Page 2: Parts Supplied
1. Description The programmable electronic thermostat STE302P WARNING WARNING can be used to control electric heating units such as Before installing and operating this product, electric baseboards, convectors, or aeroconvectors. the owner and/or installer must read, It keeps the temperature of a room at the requested... -
Page 3: Thermostat Mounting And Connection
• close to a window, on an external wall, or close to 5. Pass the wires from the wall through the opening a door leading outside; on the mounting base and connect them using the • exposed directly to the light or heat of the sun, a supplied solderless connectors. -
Page 4: Operation
Alignment 6. Place all the wires into the connection box. 7. Align the little slots located on the top of the thermostat with those on the mounting base and secure the thermostat to the mounting base. Note that you can also position the thermostat on the left or the right side of the junction box. -
Page 5: Ambient Temperature
The programmable thermostat has three main oper- In case of a power failure lasting less than 2 hours, ating modes: Manual ( ), Automatic ( ) and the thermostat saves the adjustment of the hour and Preprogrammed ( ). The active mode is the day of the week. -
Page 6: Automatic Mode
Programming procedure of the Automatic The adjustment is thus completed and the thermostat mode returns to normal operation. It is possible to exit the degrees Celsius/Fahrenheit Programming the Automatic mode can be done in the adjustment mode at any time: Automatic mode or the Manual mode. -
Page 7: Preprogrammed Mode
Selection of the preprogramming It is possible to exit the Automatic mode’s program- ming at any time: See section 5 (Preprogrammings) to choose one of • By pressing down the button. the 18 preprogrammings. The Quick selection section • By not pressing down any buttons during 1 allows a choice based on 3 criteria: the number of minute. -
Page 8: Anticipated Start
• By not pressing down any buttons during 1 Frost-free warning minute. icon is displayed when the temperature set point is between 3°C (37°F) and 5°C (41°F). A mini- Anticipated start mum temperature will be maintained to ensure frost control. This mode enables the room to reach the selected temperature at the programmed hour. -
Page 9: Fan Mode
from --.- (Heating off) to 30°C by intervals of 0.5°C The deactivation of the Security mode is thus (or 86°F by intervals of 1°F). Press down the completed and the thermostat returns to normal button to confirm your selection. operation. _ _ _ 5. - Page 10 Heating Power Indicator • By not pressing down any buttons during 1 minute. The level of power used to maintain the tempera- In any case, the adjustment is saved. ture at the set point is expressed as a percentage indicated by the number of bars in the thermometer Parameters saving and power failures displayed.
-
Page 11: Troubleshooting
4. Troubleshooting Problem Solution In normal operating conditions, the thermostat housing can reach nearly 40°C at The thermostat is hot. maximum load. That is normal and will not affect the effective operation of the thermostat. Heating is always on. Check if the thermostat is properly connected. Refer to the installation section. Heating does not run even if the thermostat Check if the thermostat is properly connected. -
Page 12: Quick Selection
5. Preprogrammings Quick selection 8 hours of sleep 9 hours of sleep Wake up time: Wake up time: Hour at Hour at which you which you come back come back from work: from work: * preprogramming by default Detailed preprogrammings 8 hours of sleep Monday-Friday Saturday-Sunday... - Page 13 10am 21°C 16.5°C 21°C 16.5°C 21°C 16.5°C 10am 21°C 16.5°C 21°C 16.5°C 21°C 16.5°C 9 hours of sleep Monday-Friday Saturday-Sunday N° P1 (Wake up) P2 (Leaving P3 (Come P4 (Sleep) P1 (Wake up) P2 (Sleep) pre-prog time) back time) 21°C 16.5°C 21°C 16.5°C...
-
Page 14: Technical Specifications
1500 W @ 120 V 2600 W @ 208 V 3000 W @ 240 V Customer service Temperature display range: Stelpro Design inc. 3°C to 40°C (37°F to 99.5°F) 1041, Parent Street Saint-Bruno-de-Montarville Temperature display resolution: (Quebec) Canada J3V 6L7 0.5°C (0.5°F)
