VCS4005, VCS5005/5010 ASSEMBLY PROCEDURES
Tools Required: Knife or scissors, Phillips or Robertson (square) screwdriver.

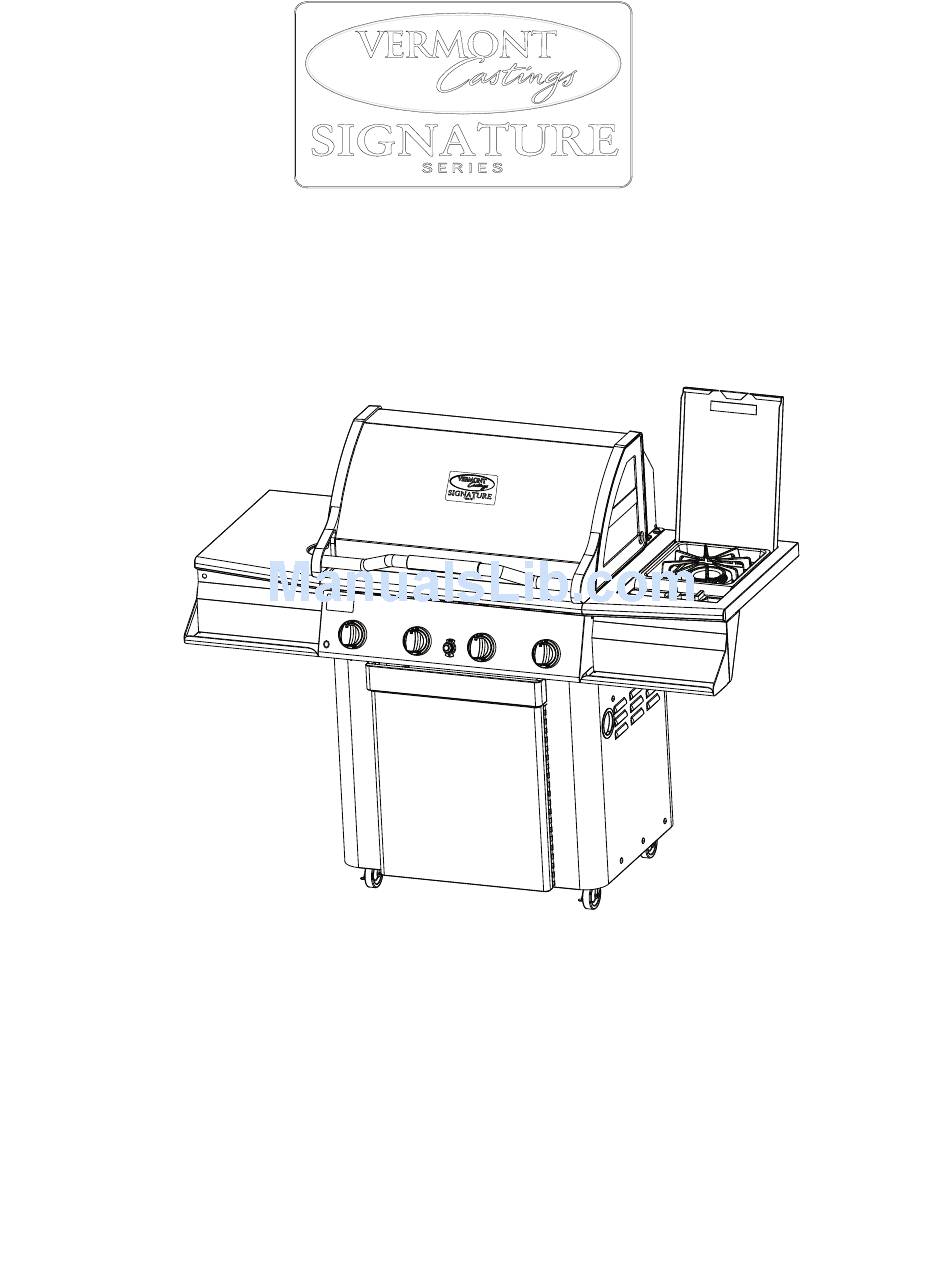

Model VCS4005 Shown

Step 1: Unpack Carton

Cut the strapping on the package, then lift off the carton cap. Remove the sleeve by lifting it straight
over the top of the Barbecue. Remove and unpack the enclosed parts boxes. Remove any protective
covering from stainless steel parts.
CAUTION: Some parts have sharp edges - gloves are recommended when handling and assembling parts.
50003329 07/05 Rev. 5
Page 1
