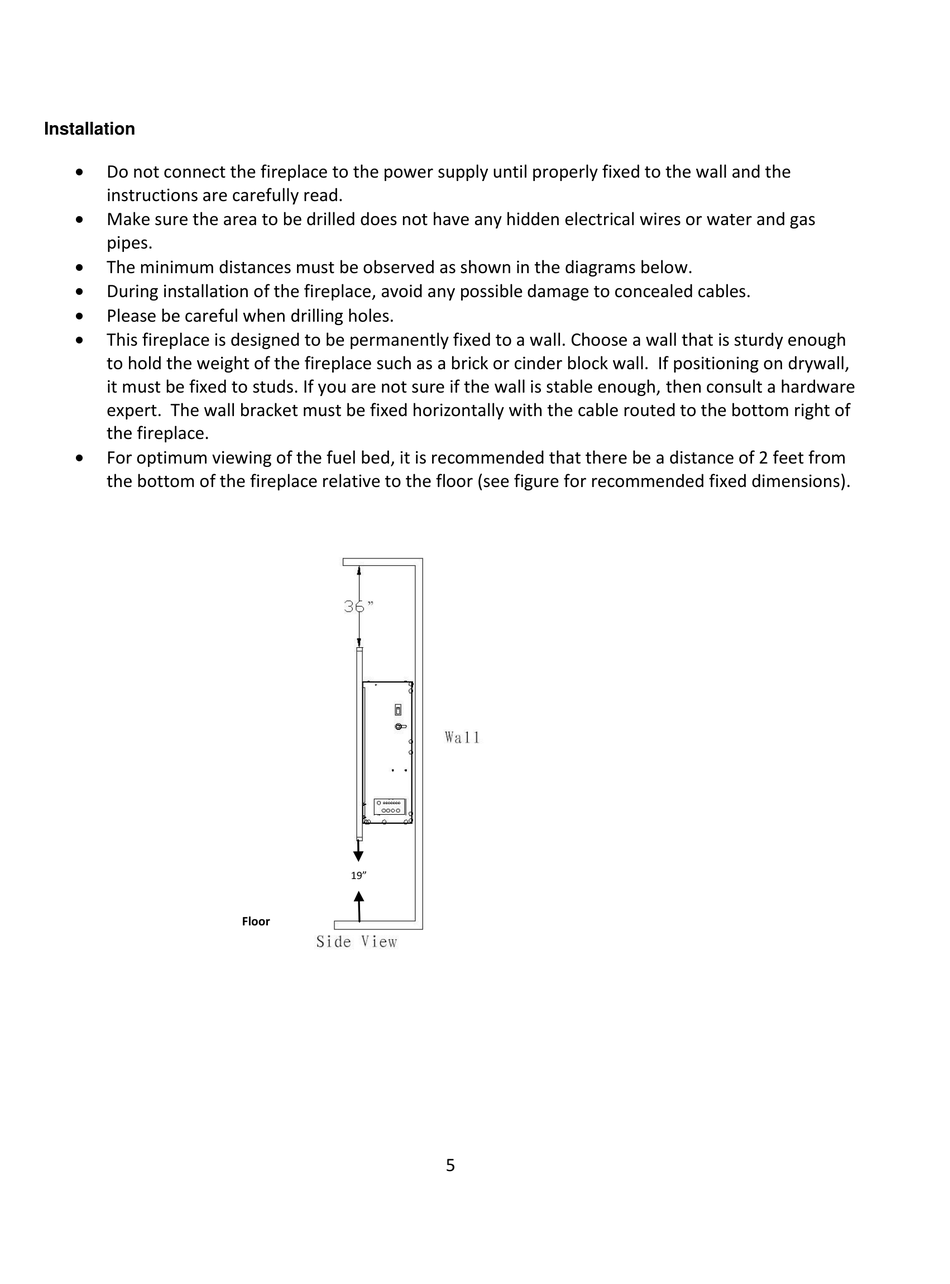

Installation
Do not connect the fireplace to the power supply until properly fixed to the wall and the
instructions are carefully read.
Make sure the area to be drilled does not have any hidden electrical wires or water and gas
pipes.
The minimum distances must be observed as shown in the diagrams below.
During installation of the fireplace, avoid any possible damage to concealed cables.
Please be careful when drilling holes.
This fireplace is designed to be permanently fixed to a wall. Choose a wall that is sturdy enough
to hold the weight of the fireplace such as a brick or cinder block wall. If positioning on drywall,
it must be fixed to studs. If you are not sure if the wall is stable enough, then consult a hardware
expert. The wall bracket must be fixed horizontally with the cable routed to the bottom right of
the fireplace.
For optimum viewing of the fuel bed, it is recommended that there be a distance of 2 feet from
the bottom of the fireplace relative to the floor (see figure for recommended fixed dimensions).
19"
Floor
5
