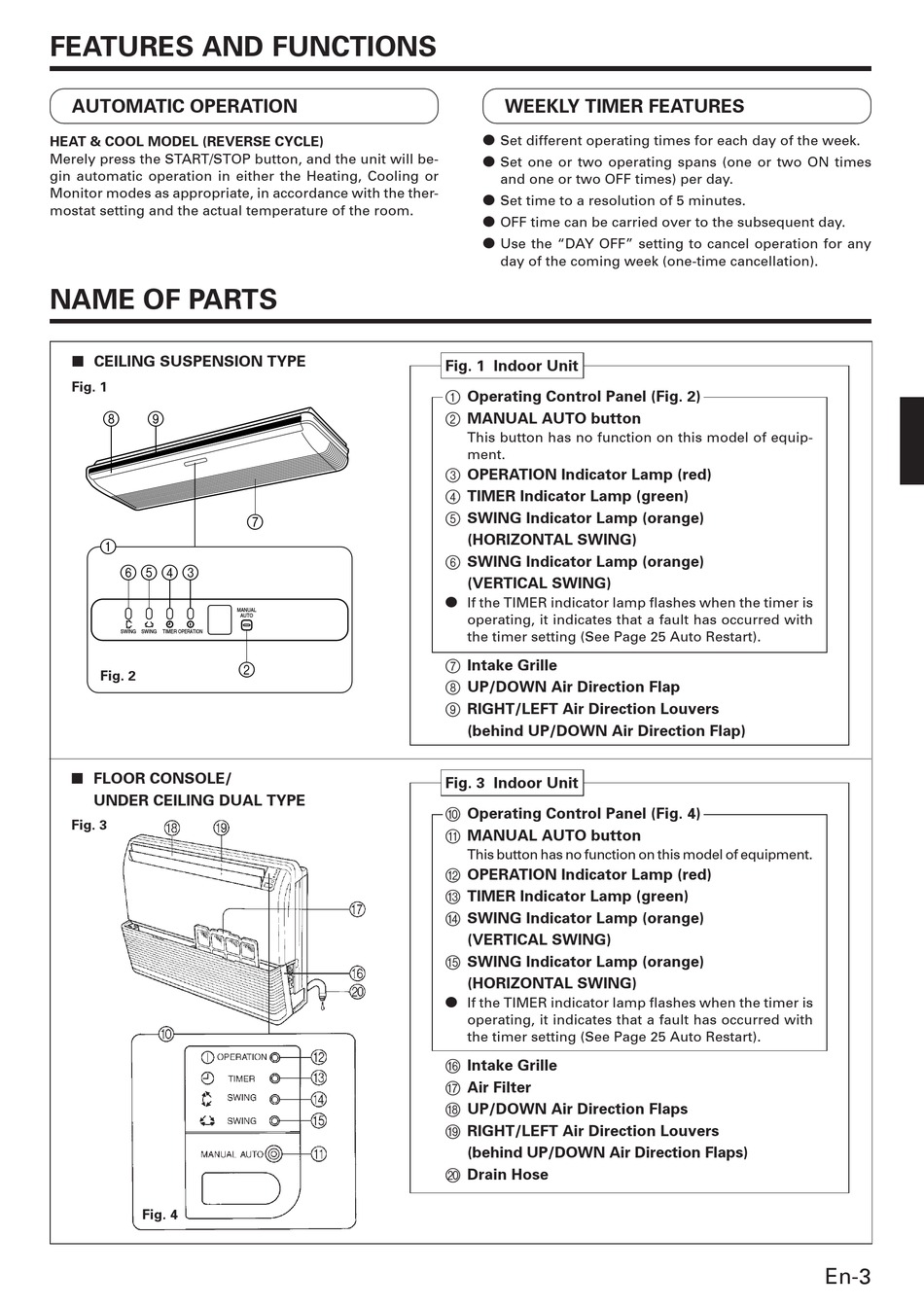

FEATURES AND FUNCTIONS

AUTOMATIC OPERATION
HEAT & COOL MODEL (REVERSE CYCLE)
Merely press the START/STOP button, and the unit will be-
gin automatic operation in either the Heating, Cooling or
Monitor modes as appropriate, in accordance with the ther-
mostat setting and the actual temperature of the room.

NAME OF PARTS

■ CEILING SUSPENSION TYPE
Fig. 1
8
9
1
6
5
4
3
SWING SWING TIMER OPERATION
Fig. 2
■ FLOOR CONSOLE/
UNDER CEILING DUAL TYPE
Fig. 3
Fig. 4
7
MANUAL
AUTO
2
WEEKLY TIMER FEATURES
Set different operating times for each day of the week.
Set one or two operating spans (one or two ON times
and one or two OFF times) per day.
Set time to a resolution of 5 minutes.
OFF time can be carried over to the subsequent day.
Use the "DAY OFF" setting to cancel operation for any
day of the coming week (one-time cancellation).
Fig. 1 Indoor Unit
1 Operating Control Panel (Fig. 2)
2 MANUAL AUTO button
This button has no function on this model of equip-
ment.
3 OPERATION Indicator Lamp (red)
4 TIMER Indicator Lamp (green)
5 SWING Indicator Lamp (orange)
(HORIZONTAL SWING)
6 SWING Indicator Lamp (orange)
(VERTICAL SWING)
If the TIMER indicator lamp flashes when the timer is
operating, it indicates that a fault has occurred with
the timer setting (See Page 25 Auto Restart).
7 Intake Grille
8 UP/DOWN Air Direction Flap
9 RIGHT/LEFT Air Direction Louvers
(behind UP/DOWN Air Direction Flap)
Fig. 3 Indoor Unit
0 Operating Control Panel (Fig. 4)
A MANUAL AUTO button
This button has no function on this model of equipment.
B OPERATION Indicator Lamp (red)
C TIMER Indicator Lamp (green)
D SWING Indicator Lamp (orange)
(VERTICAL SWING)
E SWING Indicator Lamp (orange)
(HORIZONTAL SWING)
If the TIMER indicator lamp flashes when the timer is
operating, it indicates that a fault has occurred with
the timer setting (See Page 25 Auto Restart).
F Intake Grille
G Air Filter
H UP/DOWN Air Direction Flaps
I RIGHT/LEFT Air Direction Louvers
(behind UP/DOWN Air Direction Flaps)
J Drain Hose
En-3
