To change the Zoom Width Setting:
1. Highlight Zoom Width on the Sonar main menu.
2. Use the LEFT or RIGHT 4-WAY Cursor Control keys to change the Zoom Width setting.
(Narrow, Medium, Wide, Default = Wide)
83 kHz Sensitivity changes the sensitivity of the 83 kHz beam. Increasing the 83 kHz Sensitivity
will display additional weak returns and decreasing the 83 kHz Sensitivity will display fewer weak
returns. The 83 kHz Sensitivity menu choice is only available when User Mode is set to Advanced
(see Setup Menu Tab: User Mode).
NOTE: 83 kHz Sensitivity is particularly useful for adjusting the sensitivity of the 83 kHz sonar
returns in the 200/83 kHz Split Sonar View. The 83 kHz sensitivity can be adjusted without
affecting the sensitivity of the 200 kHz returns shown in the 200 kHz sonar window.
To set the 83 kHz Sensitivity:
1. Make sure you are in Advanced User Mode, then highlight 83 kHz Sensitivity on the
Sonar main menu.
2. Use the LEFT or RIGHT 4-WAY Cursor Control keys to set the 83 kHz Sensitivity.
(-10 to +10, Default = 0)
455 kHz Balance adjusts the sensitivity of the 455 kHz beam. Increasing the sensitivity will display
additional weak returns and decreasing the sensitivity will display fewer weak returns. A
QuadraBeam™ transducer must be attached to the 700 Series™ Fishing System. The 455 kHz
Balance menu choice is available when Transducer Select is set to QuadraBeam™ (see Sonar Menu
Tab: Transducer Select) and User Mode is set to Advanced (see Setup Menu Tab: User Mode).
NOTE: The 455 kHz Balance requires the purchase of the QuadraBeam™ transducer. You can visit
our website at www.humminbird.com to order this accessory online or contact our Customer
Resource Center at 1-800-633-1468.

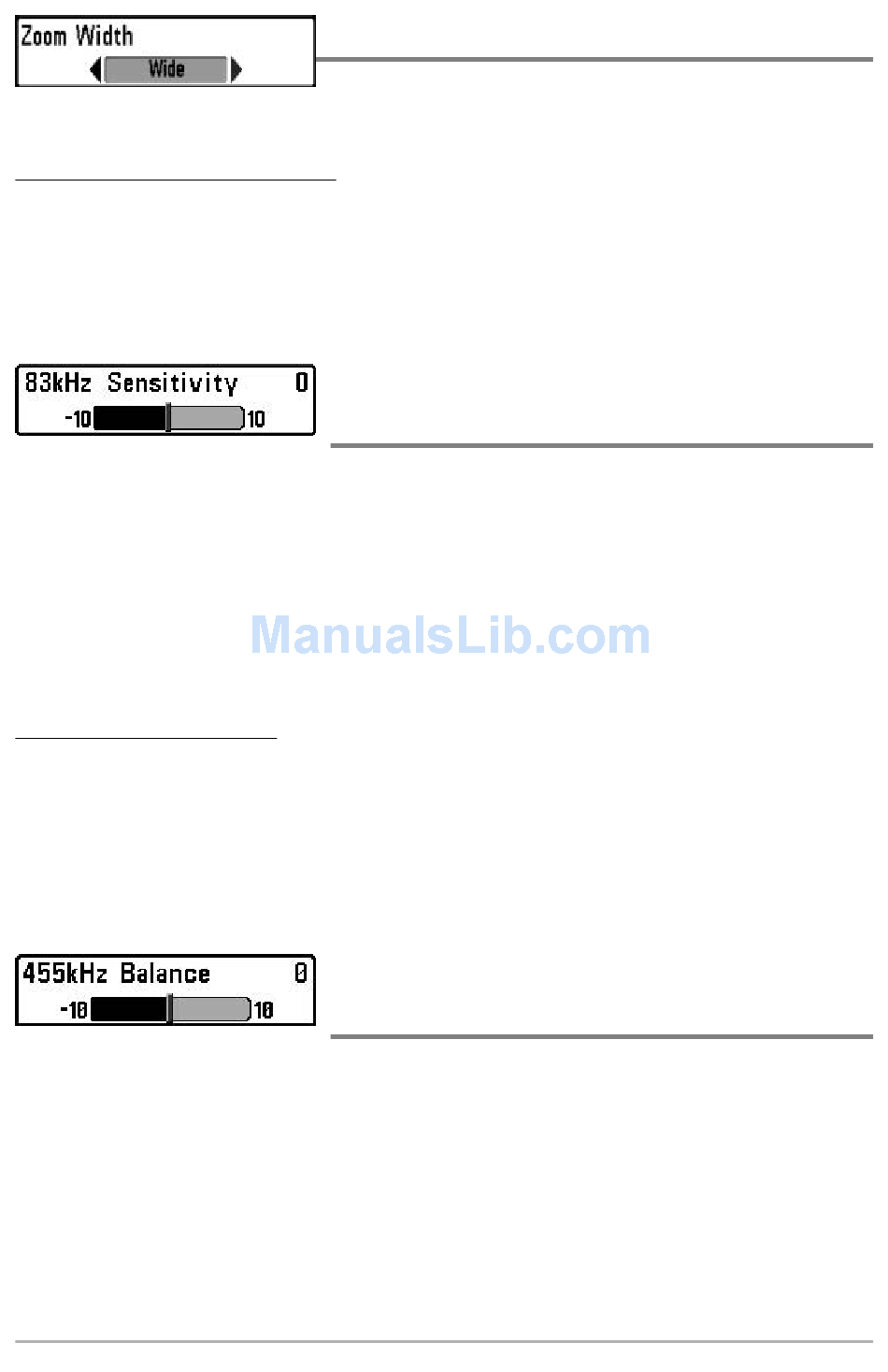

Zoom Width

Zoom Width adjusts the width of the Zoom window on the
Sonar Zoom View.
83 kHz Sensitivity
(Advanced)

455 kHz Balance

(Advanced, with QuadraBeam™ Transducer)
58
