Depth
Temperature
Left Side 455 kHz
Sonar History
Window
The sonar information from the side-looking beams reveals bottom contour, structure and fish
similar to the down-looking beam, but the area covered is to the left and right of the area shown
in the down-looking portion, so you actually see more of the bottom. The distance covered by the
right and left 90° beams is based on the depth setting for the down-looking beam, up to a
maximum of 160 feet.

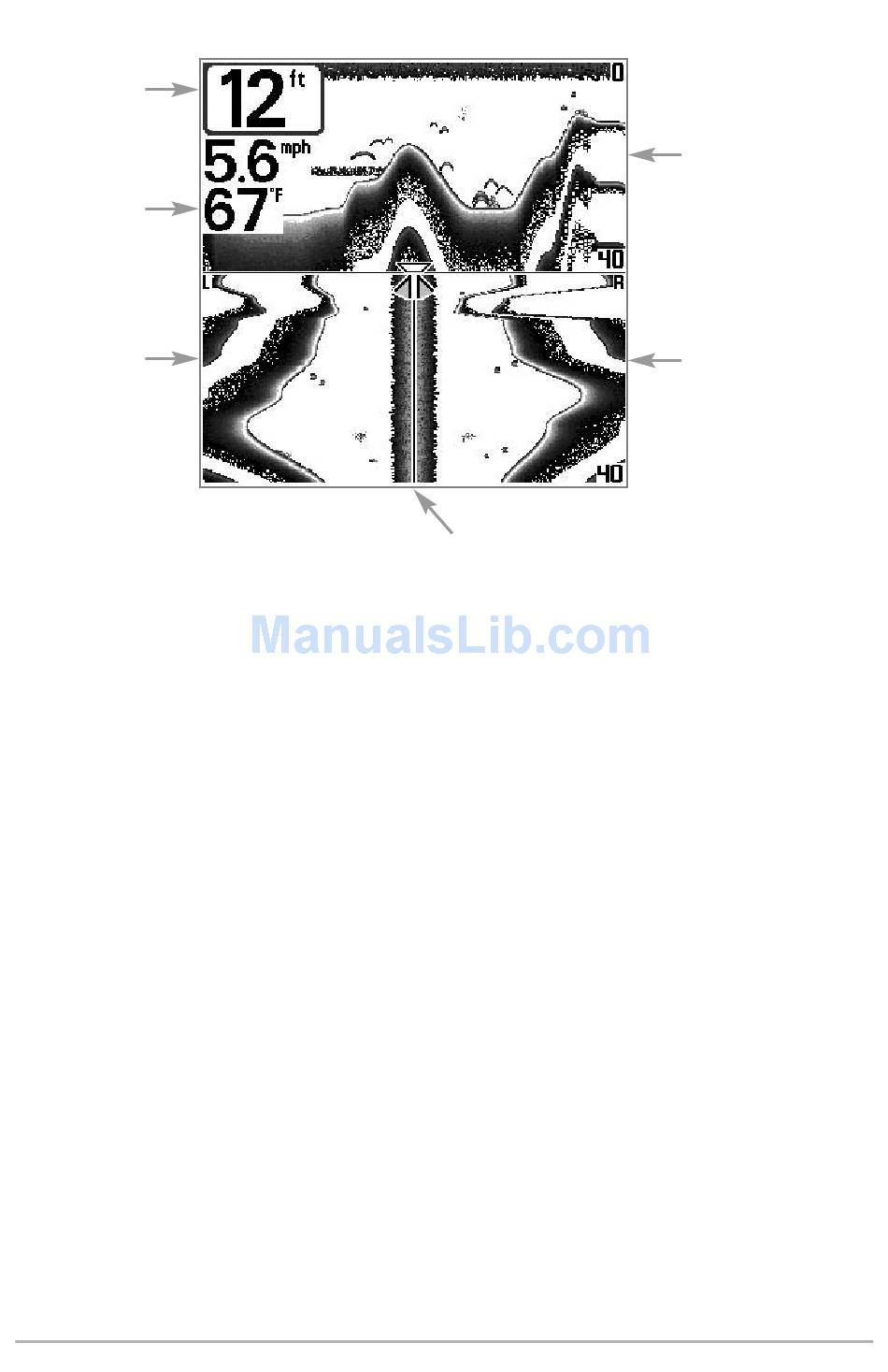

Side Beam View
Water Surface Line for 455 kHz
Sonar History Windows
18
200 kHz Sonar
History Window
Right Side 455 kHz
Sonar History
Window
