Chart/2D Combo View

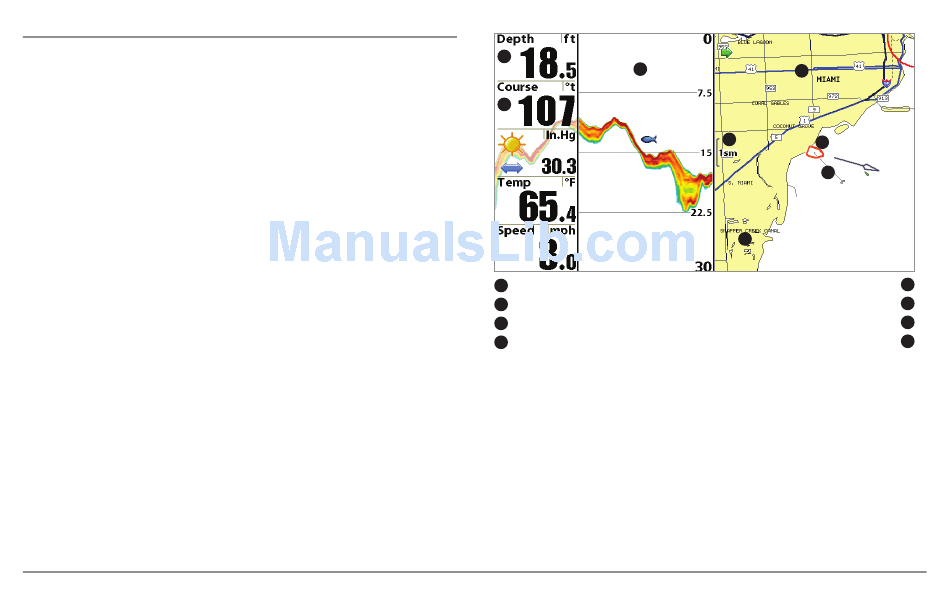

Chart/2D Combo View shows both the Chart and 2D Sonar views in a
combination split screen. You can perform any of the functions for either of
these views, but only when the view you want to control is selected as the
active side (see 2D Sonar X-Press™ Menu: Active Side or Navigation
X-Press™ Menu: Active Side for more information). A green arrow points
to the side that is active. You can also adjust the size of the left side of a split
screen (see 2D Sonar X-Press™ Menu: Split Position or Navigation
X-Press™ Menu: Split Position for more information).
NOTE: See 2D Sonar View and Chart View for more information about each side
of this view.
1
7
5
Course: Direction that boat is travelling relative to North Reference
1 Depth
Boat Icon
2
Track
3
Map Scale
4
49
Chart/2D Combo View
8
4
2
3
6
5
Cartography
6
Sonar Window
7
Chart Window
8
