Chart/3D Combo View

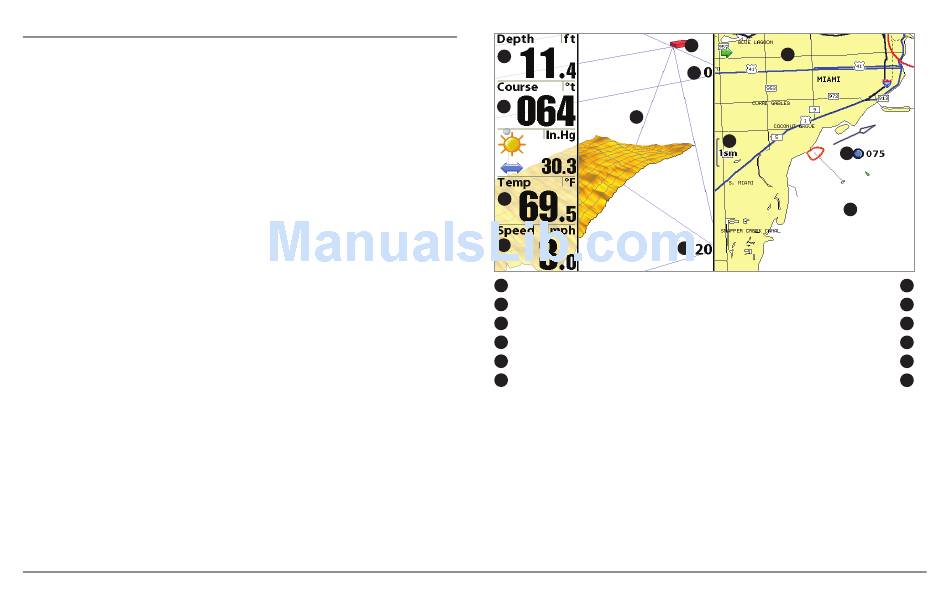

Chart/3D Combo View shows both the Chart and 3D Sonar views in a
combination split screen. You can perform any of the functions for either of
these views, but only when the view you want to control is selected as the
active side (see 3D Sonar X-Press™ Menu: Active Side or Navigation
X-Press™ Menu: Active Side for more information). A green arrow points
to the side that is active. You can also adjust the size of the left side of a split
screen (see 3D Sonar X-Press™ Menu: Split Position or Navigation
X-Press™ Menu: Split Position for more information).
NOTE: See 3D/2D Combo View and Chart View for more information about each
side of this view.
1
2
5
3
4
1 Depth
Course: Direction that boat is travelling relative to North Reference
2
Temperature
3
Speed
4
3D View
5
Chart View
6
48
Chart/3D Combo View
9
11
7
12
8
Upper Depth Range
Lower Depth Range
10
6
7
8
3D Boat Icon
9
Waypoint
10
Cartography
11
Map Scale
12
