What's On the 3D Sonar Display

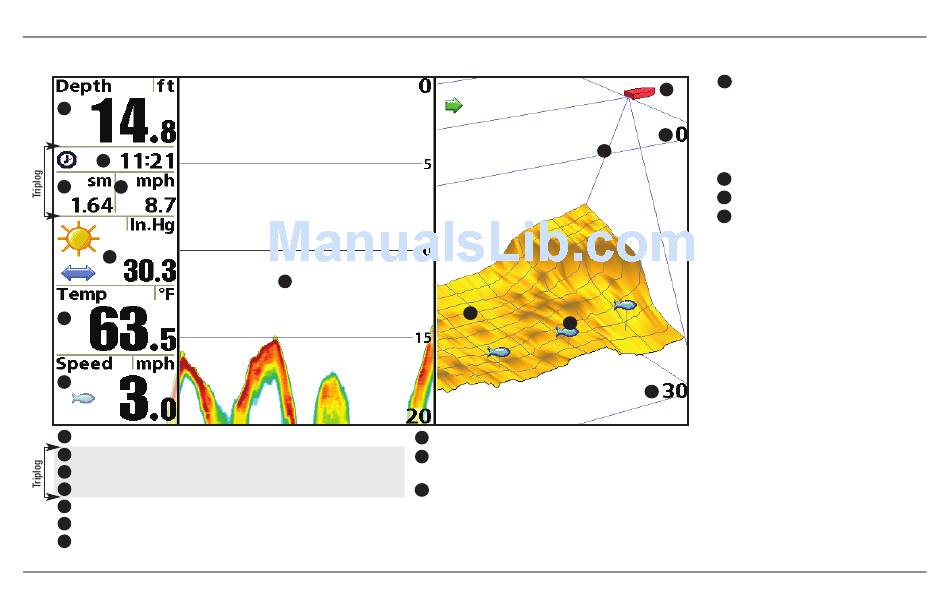

The 900 Series™ can display a variety of useful 3D information about the area under and adjacent to your boat, including the following items:
1
2
3 4
5
6
7
Depth - water depth; can be set to alarm when the water becomes too shallow.
1
Timer - Elapsed time (with Speed input or GPS Receiver).
2
Distance - Distance traveled (with Speed input or GPS Receiver).
3
Average Speed - Average speed reading (with Speed input or GPS Receiver).
4
Barometric Pressure - Requires optional-purchase WeatherSense®
5
Temperature - water surface temperature
6
Speed - The 900 Series ™ can display the speed of the boat, and can keep a triplog
7
of nautical or statute miles traveled (with Speed input or GPS Receiver).
8
2D Sonar View - traditional 2D sonar for the identification of structure and bottom hardness.
8
Boat/Direction Arrow - A simple, solid 3D boat is drawn when the Upper Depth Range is 0. A solid 3D arrow is drawn
9
when the Upper Depth Range is not 0.
Fish ID+
10
primary beam in which the fish was found. Left-facing fish indicate fish off the port side of the boat, while right-facing fish
indicate fish off the starboard side. Each fish icon is available in three different sizes. Larger fish icons are used to represent
stronger returns. The icons used in the 2D Sonar View are identical to the icons used in the 3D Sonar View.
14
11
10
™ - A fish icon will be shown at the derived position of the fish. Six fish icon styles will be used to indicate the
28
3D Bottom Contour - Shows the shape of
11
9
the bottom derived from depth measurements
on 6 beams. 3 bottom styles are available; the
front edges of the bottom contour are outlined to
12
create a visual anchor. The width of the bottom
covered is approximately equal to the depth.
Upper Depth Range
12
Lower Depth Range
13
Frame - provides a reference for bottom and
14
Fish ID+ ™ information. A Range of frame styles
are available, from simple to complex.
