What's On the 2D Sonar Display

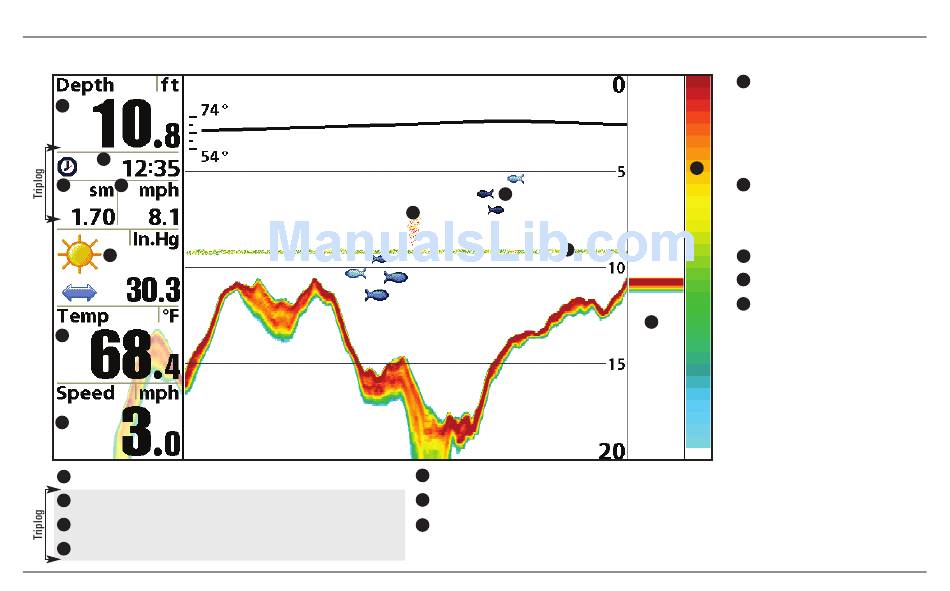

The 900 Series™ can display a variety of useful 2D information about the area under and adjacent to your boat, including the following items:
1
2
3 4
5
6
7
Depth - water depth; can be set to alarm when the water becomes too shallow.
1
Timer - Elapsed time with Speed accessory or GPS Receiver.
2
Distance - Distance traveled with Speed accessory or GPS Receiver.
3
Average Speed - Average speed reading with Speed accessory or GPS Receiver.
4
12
10
8
Barometric Pressure - Requires optional-purchase WeatherSense®
5
Temperature - water surface temperature
6
Speed - if a Speed accessory or GPS Receiver is attached, the
7
900 Series ™ can display the speed of the boat, and can keep a triplog of
nautical or statute miles traveled.
29
Thermoclines - layers of water with
8
different temperatures that appear at
different depths and different times of the
year. A thermocline typically appears as a
continuous band of many colors moving
across the display at the same depth.
9
Sonar Color Bar - color spectrum
9
indicating low to high sonar intensity
returns, where red indicates high intensity
and white indicates low intensity.
Bait Ball
10
RTS® (Real Time Sonar) Window
11
Fish ID+ ™ - A fish icon will be shown at
12
the derived position of the fish. Six fish
11
icon styles will be used to indicate the
primary beam in which the fish was found.
Left-facing fish indicate fish off the port
side of the boat, while right-facing fish
indicate fish off the starboard side. Each
fish icon is available in three different
sizes. Larger fish icons are used to
represent stronger returns.
