Chart/Sonar Combo View

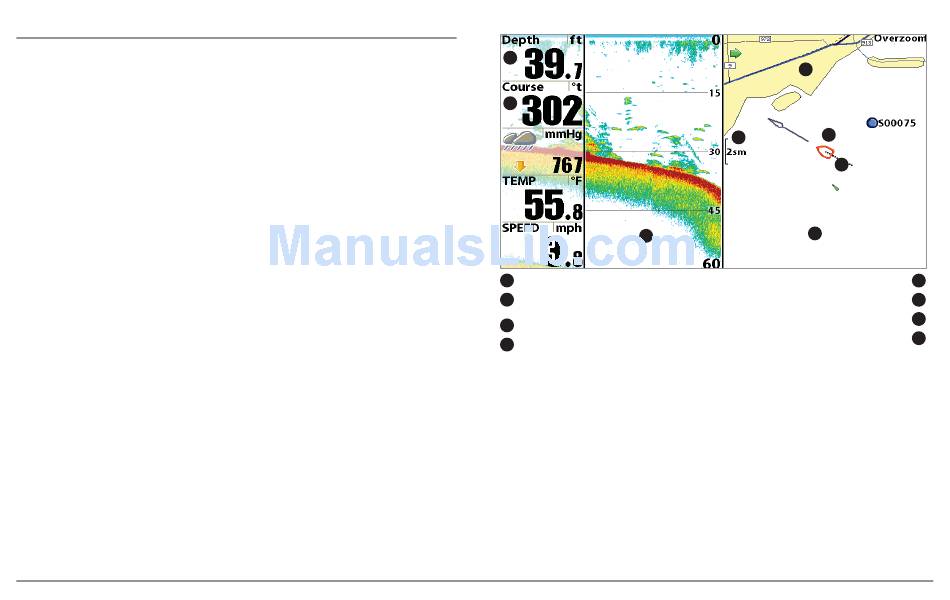

Chart/Sonar Combo View shows both the Chart and Sonar views in a
combination split screen. You can perform any of the functions for either of
these views, but only when the view you want to control is selected as the
active side (see Sonar X-Press™ Menu: Active Side or Navigation X-Press™
Menu: Active Side for more information). A green arrow points to the side that
is active. You can also adjust the size of the left side of a split screen (see Sonar
X-Press™ Menu: Split Position or Navigation X-Press™ Menu: Split
Position for more information).
NOTE: See Sonar View and Chart View for more information about each side of
this view.
1
2
7
1
Depth
2 Course: Direction that boat is travelling
relative to North Reference
3
Track (Breadcrumb Trail)
4
Map Scale
51
Chart/Sonar Combo View
6
5
4
8
3
5
Boat Icon
6
Carotgraphy
7
Sonar Window
8
Chart Window
