Freescale Semiconductor
User's Guide
KIT33810EKEVME Evaluation Board
User's Guide
Table of Contents
1
Important Notice ..................................................................................................................................................... 2
2
Introduction............................................................................................................................................................. 3
3
Schematic............................................................................................................................................................... 9
4
KIT33810EKEVME Bill of Material ......................................................................................................................... 10
© Freescale Semiconductor, Inc., 2010. All rights reserved.

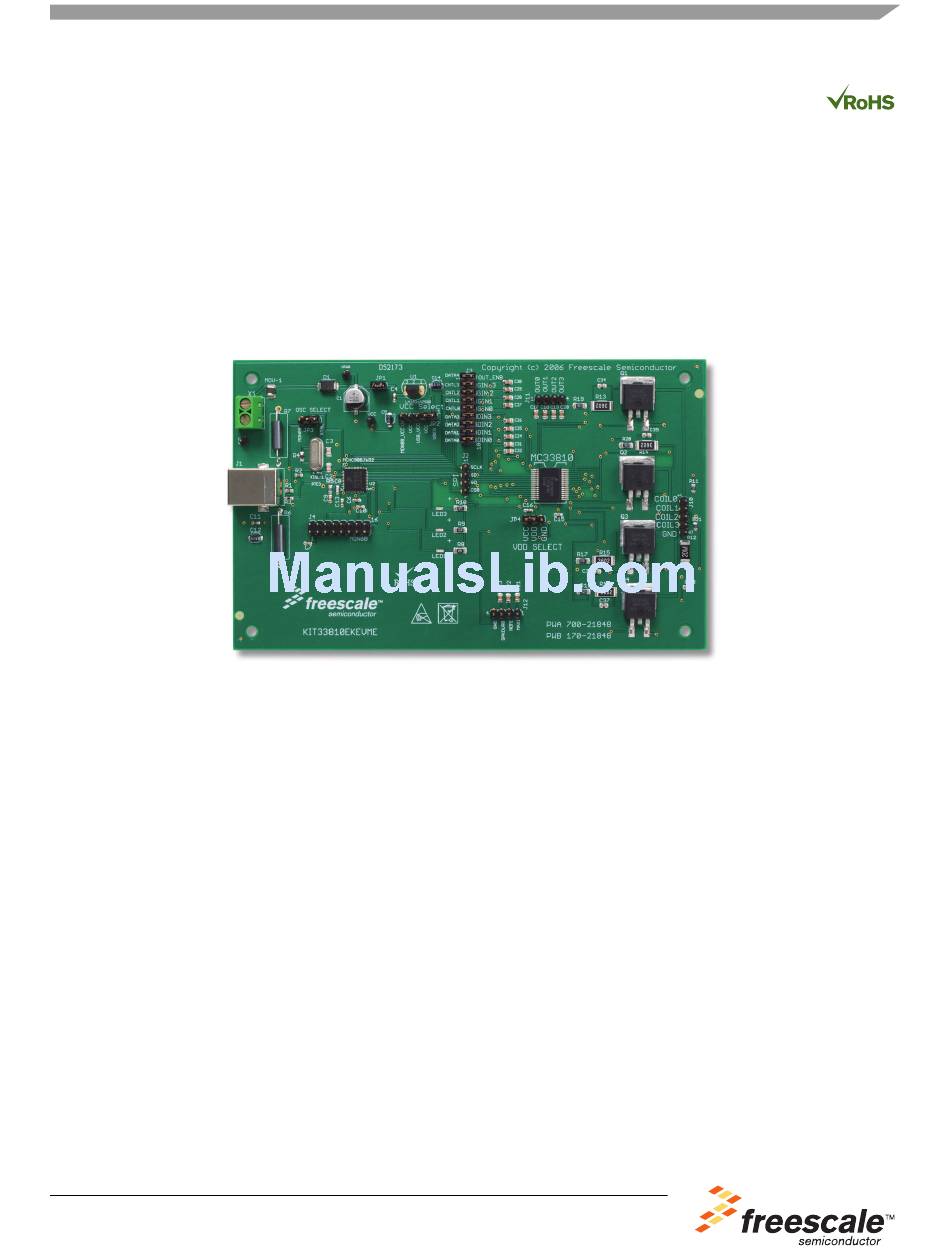

Figure 1. KT33810 Evaluation Board
Document Number: KT33810UG
Rev. 3.0, 5/2010
Advertisement
Related Manuals for Freescale Semiconductor KIT33810EKEVME
Summary of Contents for Freescale Semiconductor KIT33810EKEVME
- Page 1 Rev. 3.0, 5/2010 User’s Guide KIT33810EKEVME Evaluation Board User’s Guide Figure 1. KT33810 Evaluation Board Table of Contents Important Notice ..............................2 Introduction................................3 Schematic................................9 KIT33810EKEVME Bill of Material ......................... 10 © Freescale Semiconductor, Inc., 2010. All rights reserved.
-
Page 2: Important Notice
Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc., 2010. All rights reserved. KIT33810EKEVME Evaluation Board User’s Guide, Rev. 3.0 Freescale Semiconductor... -
Page 3: Introduction
Introduction Introduction The KIT33810EKEVME Evaluation Board (EVB) is an easy-to-use circuit board that allows the user to exercise all functions of the MC33810 circuit. The EVB communicates to a PC through a built in USB port. The Freescale SPIGen program provides the User Interface to the MC33810’s SPI port and allows the user to send commands to and receive error messages from the IC. - Page 4 The EVB contains nine jumpers that connect the parallel outputs of the USB SPI interface to the 33810 inputs as follows: USB-SPI Output 33810 Input Function DATA0 DIN0 Injector Input 0 DATA1 DIN1 Injector Input 1 DATA2 DIN2 Injector Input 2 KIT33810EKEVME Evaluation Board User’s Guide, Rev. 3.0 Freescale Semiconductor...
- Page 5 VOLTAGE REGULATOR DISCONNECT JUMPER (JP1) The internal voltage regulator can be disconnected from VPWR to allow the 33810 I to be measured. JP1 VPWR normally connects VPWR to the input of the 5 Volt regulator. KIT33810EKEVME Evaluation Board User’s Guide, Rev. 3.0 Freescale Semiconductor...
- Page 6 RAM, this jumper must be moved to the Programming position, the VCC jumper should be set to the MON08 position and the MON08 connector should be attached to the cable from the P & E Cyclone Pro or the Freescale FSICEBASE unit. KIT33810EKEVME Evaluation Board User’s Guide, Rev. 3.0 Freescale Semiconductor...
- Page 7 All of the source code that is available is provided on the Installation CD in a folder called “USB_SPI_FINAL”. For an explanation of the SPIGen program, the user is referred to the documentation that comes with the disk for that program. KIT33810EKEVME Evaluation Board User’s Guide, Rev. 3.0 Freescale Semiconductor...
- Page 8 Once the code is compiled (without errors), the CodeWarrior IDE provides a means to download the binaries to the P&E Cyclone Pro programmer, via the MON08 port to re-Flash the MCU. The documentation for this process is contained in the CodeWarrior suite of tools and the P&E documentation. KIT33810EKEVME Evaluation Board User’s Guide, Rev. 3.0 Freescale Semiconductor...
-
Page 9: Schematic
Schematic Schematic Figure 2. Schematic KIT33810EKEVME Evaluation Board User’s Guide, Rev. 3.0 Freescale Semiconductor... -
Page 10: Kit33810Ekevme Bill Of Material
KIT33810EKEVME Bill of Material KIT33810EKEVME Bill of Material Schematic Device or Description Mfr. Part Nam Mfr. Part Number Digi-Key Part # Designation Signal Name VBAT CAP ALEL 10UF 50V 20% -- CCE63X57 ROHS PANASONIC ECEV1HA100SP PCE3089TR-ND COMPLIANT OSC2 CAP CERAMIC 27PF 50V NP0 0805... - Page 11 KIT33810EKEVME Bill of Material Schematic Device or Description Mfr. Part Nam Mfr. Part Number Digi-Key Part # Designation Signal Name JUMPER WIRE WITH FERRITE BEAD STEWARD 28L0138-40R-10 240-2439-2-ND 28L0138-40R-10 LED1 RES TF 470 1/4W 5% RC1206 ROHS COMPLIANT BOURNS CR1206JW471ELF...
- Page 12 KIT33810EKEVME Bill of Material Schematic Device or Description Mfr. Part Nam Mfr. Part Number Digi-Key Part # Designation Signal Name MC33810 Engine Control IC FREESCALE SEMI- MCZ33810EK CONDUCTOR IGBT IRGS14C40L IGBTPbF 14 Amp 430 V TO-263AB INTERNATIONAL IRGS14C40L IGBTPbF IRGS14C40LPBF-ND...
- Page 13 Following are URLs where you can obtain information on other Freescale products and application solutions: Products Links Data Sheet MC33810 www.freescale.com/files/analog/doc/data_sheet/MC33810.pdf Freescale’s Web Site www.freescale.com Freescale’s Analog Web Site www.freescale.com/analog Freescale’s Powertrain an Engine Control www.freescale.com/powertrain_and_engine_control Freescale’s Automotive Applications www.freescale.com/automotive KIT33810EKEVME Evaluation Board User’s Guide, Rev. 3.0 Freescale Semiconductor...
-
Page 14: Revision History
Revision History Revision History REVISION DATE DESCRIPTION OF CHANGES • Initial Release 1/2010 • Added References Section, BOM and Revision History Section. 5/2010 KIT33810EKEVME Evaluation Board User’s Guide, Rev. 3.0 Freescale Semiconductor... - Page 15 Freescale Semiconductor product could create a situation where personal injury or death may occur. Should Buyer...
