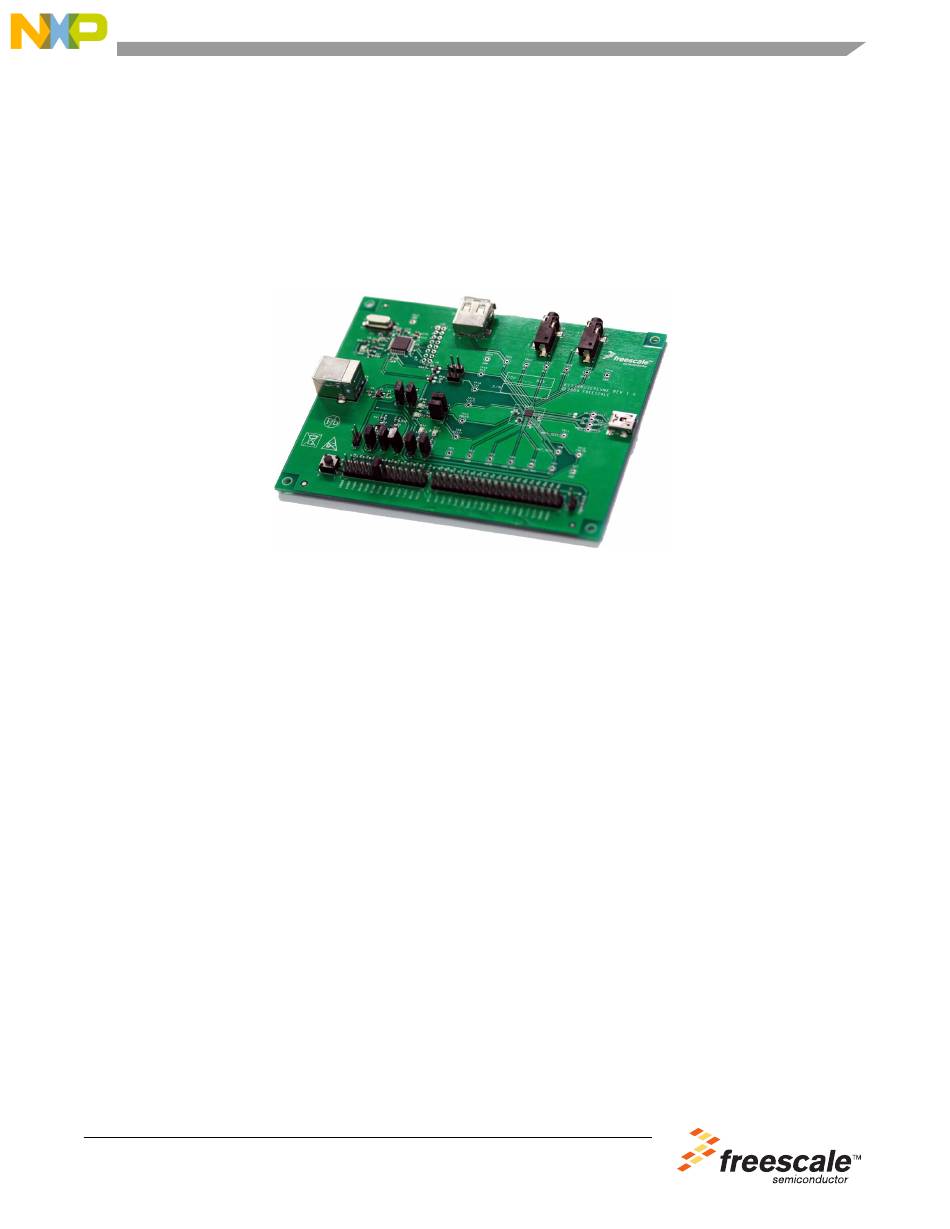

This KIT34825EPEVME evaluation kit is for demonstrating the capability and features of the 34825 and is aimed to make it easy for users to evaluate the performance of the 34825. The KIT34825EPEVME evaluation kit contains an 34825 evaluation board, a graphic user interface (GUI) software for personal computers (PC), and connection cables.
Page 5
Can be directly jump connected to a real cell phone PCB for evaluation • 5 inch x 4 inch board size Required Equipment Minimum required equipment: • USB-enabled computer with Windows 2000 or later operating system • A standard USB A-to-B cable KIT34825EPEVME Evaluation Board, Rev. 2.0 Freescale Semiconductor...
There are another two LEDs on the Evaluation Board DS3 and DS4. They are reserved for Freescale internal use only. Please keep the jumpers J10 and J11 open all the time. KIT34825EPEVME Evaluation Board, Rev. 2.0 Freescale Semiconductor...
Page 7
Hardware Description Figure 4. The 34825 Schematic of the KIT34825EPEVME Evaluation Board KIT34825EPEVME Evaluation Board, Rev. 2.0 Freescale Semiconductor...
Page 8
6. The MCU in the schematic is powered by the USB bus voltage. A standard type-B connector is given to connect the evaluation board to the PC. The USB bus voltage is the supply of the VDD_5V discussed earlier. KIT34825EPEVME Evaluation Board, Rev. 2.0 Freescale Semiconductor...
Page 10
Top Side of the Bottom Side of the Remote Control Remote Control Board Board The Assignment Mini-USB of the 5 Buttons Connector Figure 7. The Audio Accessory with Remote Control Buttons KIT34825EPEVME Evaluation Board, Rev. 2.0 Freescale Semiconductor...
Page 11
DTSHW-67N DTSHW-67N DTSHW-67N DTSHW-67N DTSHW-67N DTSHW-67N DTSHW-67N 3.5mm STEREO JACK 3.5mm STEREO JACK 3.5mm STEREO JACK 3.5mm STEREO JACK USB_5_MINI_AB_SKT USB_5_MINI_AB_SKT Figure 8. The Schematic for the Audio Accessory with Remote Control Buttons KIT34825EPEVME Evaluation Board, Rev. 2.0 Freescale Semiconductor...
The OS will install the internal driver to make it ready for users to use the evaluation kit. The message is shown in Figure Figure 9. Windows Finds the New Hardware Figure 10. Windows Recognizes the Evaluation Board as an HID Device Figure 11. The Interface Board is Ready to Use KIT34825EPEVME Evaluation Board, Rev. 2.0 Freescale Semiconductor...
Page 13
The users need only to copy the four mentioned “.wma” files and the 34825Demo.exe file into the same folder, as shown in Figure 13. Doubling clicking the 34825Demo.exe will start the GUI software. KIT34825EPEVME Evaluation Board, Rev. 2.0 Freescale Semiconductor...
Page 14
Please Check and Connect the Evaluation Board!” Whenever the evaluation board is connected while the GUI software is running, the PC software will recognize the evaluation board automatically and display the first message. KIT34825EPEVME Evaluation Board, Rev. 2.0 Freescale Semiconductor...
Page 15
The functions for them, when clicked, are as following: Read All Registers: to read all internal registers and display the result in the register map. Reset by VDDIO: to reset the 34825 by disabling the VDDIO supply to the 34825. KIT34825EPEVME Evaluation Board, Rev. 2.0 Freescale Semiconductor...
Page 16
Figure 15, will pop up the system menu that contains the “about...” selection. Clicking the “about...” selection results in a dialog window showing the version information of the software. KIT34825EPEVME Evaluation Board, Rev. 2.0 Freescale Semiconductor...
Page 17
Software Description Figure 15. The About... Menu Selection KIT34825EPEVME Evaluation Board, Rev. 2.0 Freescale Semiconductor...
GUI software via the USB-to-I2C interface. Any interrupt signal from the 34825 can be intercepted by the MCU and forwarded to the GUI software via the USB bus. Figure 16. The Setup for the KIT34825EPEVME Kit 6.1.2...
Page 19
LED indications for ISET and OUT signals J6, J7, J8 Shorted I2C and Interrupt signals J10, J11 Open Reserved for Freescale internal use only J12, J13 Shorted To provide VDD and VDDIO supplies to 34825 KIT34825EPEVME Evaluation Board, Rev. 2.0 Freescale Semiconductor...
Page 20
Once J9 is shorted, the 5V supply is jumped to the VBUS pin of the mini-USB connector. The 34825 will see an accessory with D+ and D- shorted and a 5V on the VBUS pin, and hence recognizes it as a dedicated charger. KIT34825EPEVME Evaluation Board, Rev. 2.0 Freescale Semiconductor...
Page 21
Clicking the record button again will stop recording and immediately start playing back recorded voice, while the stereo music continues to play independently. The user can also use the J1 to simulate all 13 keys, as described in section 4.2. KIT34825EPEVME Evaluation Board, Rev. 2.0 Freescale Semiconductor...
KIT34825EPEVME Board Layout KIT34825EPEVME Board Layout Overview Figure 18. The Overview of the KIT34825EPEVME Evaluation Board. Top Side Silkscreen Layer Figure 19. The Top Side Silk Screen Layer of the KIT34825EPEVME Evaluation Board. KIT34825EPEVME Evaluation Board, Rev. 2.0 Freescale Semiconductor...
Page 23
KIT34825EPEVME Board Layout Top Side Layer Figure 20. Top Side Layer of the KIT34825EPEVME Evaluation Board. Bottom Side Layer Figure 21. The Bottom Side Layer of the KIT34825EPEVME Evaluation Board. KIT34825EPEVME Evaluation Board, Rev. 2.0 Freescale Semiconductor...
Following are URLs where you can obtain information on other Freescale products and application solutions: Description Data Sheet www.freescale.com/files/analog/doc/data_sheet/MC34825.pdf Freescale’s Web Site www.freescale.com Freescale’s Analog Web Site www.freescale.com/analog Freescale’s Power Management Web Site www.freescale.com/powermanagement Freescale’s Automotive Applications Web Site www.freescale.com/automotive KIT34825EPEVME Evaluation Board, Rev. 2.0 Freescale Semiconductor...
