Summary of Contents for MUSIC HALL mmf-2.2
- Page 1 INSTRUCTION MANUAL music hall http://www.musichallaudio.com august 2007...
-
Page 2: Congratulations On Your Purchase
If the turntable is exposed to moisture, immediately disconnect the power cord from the wall. Take the deck to an authorized music hall service center for inspection. Do not touch the turntable, power cord, or plug with wet hands. - Page 3 11. Damage Requiring Service Stop using the turntable immediately and have it inspected by an authorized music hall service center whenever: 1. The power supply cord or plug has been damaged. 2. Liquid has been spilled onto the motor or into the bearing well.
- Page 5 18. 1 x arm lock 19. 1 x belt changing tool packaged in parts bag 20. 1 x on/off switch 21. 1 x head shell fitted with music hall Tracker cartridge 22. 1 x motor 23. 4 x feet Parts bag includes:...
-
Page 6: Getting Started

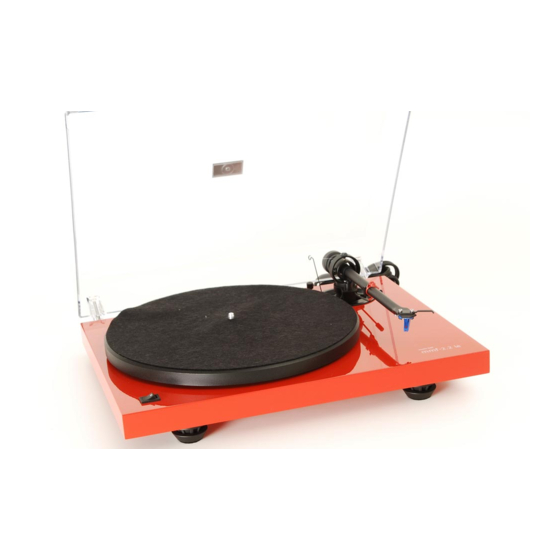

GETTING STARTED Thank you for purchasing the music hall mmf-2.2 turntable. It is a 2-speed belt- driven, audiophile turntable that comes complete with a music hall Tracker cartridge mounted in a high-quality tonearm. The alloy platter runs on a precision, stainless steel and bronze bearing assembly to provide fluid and quiet operation. - Page 7 Place it in a safe place for future use. 9. You will now set the cartridge tracking force. The mmf-2.2 comes complete with a factory installed music hall Tracker cartridge. We recommend a tracking force of 1.75g.
- Page 8 to the platter at zero, return to the previous steps and make the necessary adjustments. Return the tonearm to the tonearm rest. IMPORTANT Do not touch the tracking force scale again. Turn the counterweight counterclockwise with your right hand. You will notice that the tracking force scale will also turn. Turn it through numbers 5, 10, 15 to the position centered between 17 and 18 on the scale).
- Page 9 NOTE If you are substituting another cartridge for the Music Hall 'Tracker', you may need to make the following further adjustments to the tonearm (9) and cartridge: If you are a novice, music hall recommends getting professional help. All cartridges with half inch mounting holes can be fitted. Leaving the stylus...
-
Page 10: Mains Connection
Turn the motor ‘ON’ (20) and check that the platter (5) spins. AUDIO CONNECTION The Music Hall Tracker is a moving- magnet cartridge. Connect the audio cable (14) to the MM (Moving Magnet) phono input on your receiver or pre-amplifier. OPERATION Place a record on the platter and push the mains switch (20) to the 'ON' position. -
Page 11: Maintenance
MAINTENANCE The mmf-2.2 is designed for a long operational life. To preserve the appearance of your deck and maintain its performance, you should note the following points when cleaning (Make sure the stylus guard is in place before you begin): PLINTH - The plinth is constructed from medium density fiberboard, therefore it should not be subjected to extremes of temperature or direct sunlight. -
Page 12: Cartridge Specifications
Load Resistance: 47,000 Ohm Load Capacitance: 150 – 400pF Internal Inductance: 560 mH Internal Resistance: 700 Ohm Cartridge Weight: 4.2g Fixing Center: 0.5” (12.7mm) Playing Weight 1.5 – 2.0g (1.75g nom.) Music Hall reserves the right to make technical modifications. -
Page 13: Troubleshooting
SERVICE Should you encounter a problem that you cannot solve, please contact your dealer. If the problem cannot be resolved by the dealer please contact music hall for further advice. Never return a record player without authorization and without making sure that is it safely disassembled and correctly packaged in the original packaging. - Page 14 Fit the stylus guard on the cartridge, insert the red motor-transport screws (1), and lock the tonearm (18). Package the turntable carefully in its original box using thick, 1¼ inch Bubble Wrap.
-
Page 15: Claims Under Warranty
WARRANTY This entitles you to have the music hall mmf-2.2 repaired free of charge, at our discretion, for one year after the date of purchase, at any authorized music hall service center, provided the unit was purchased from an authorized dealer. Your original sales receipt is proof of purchase date.
