music hall
stealth

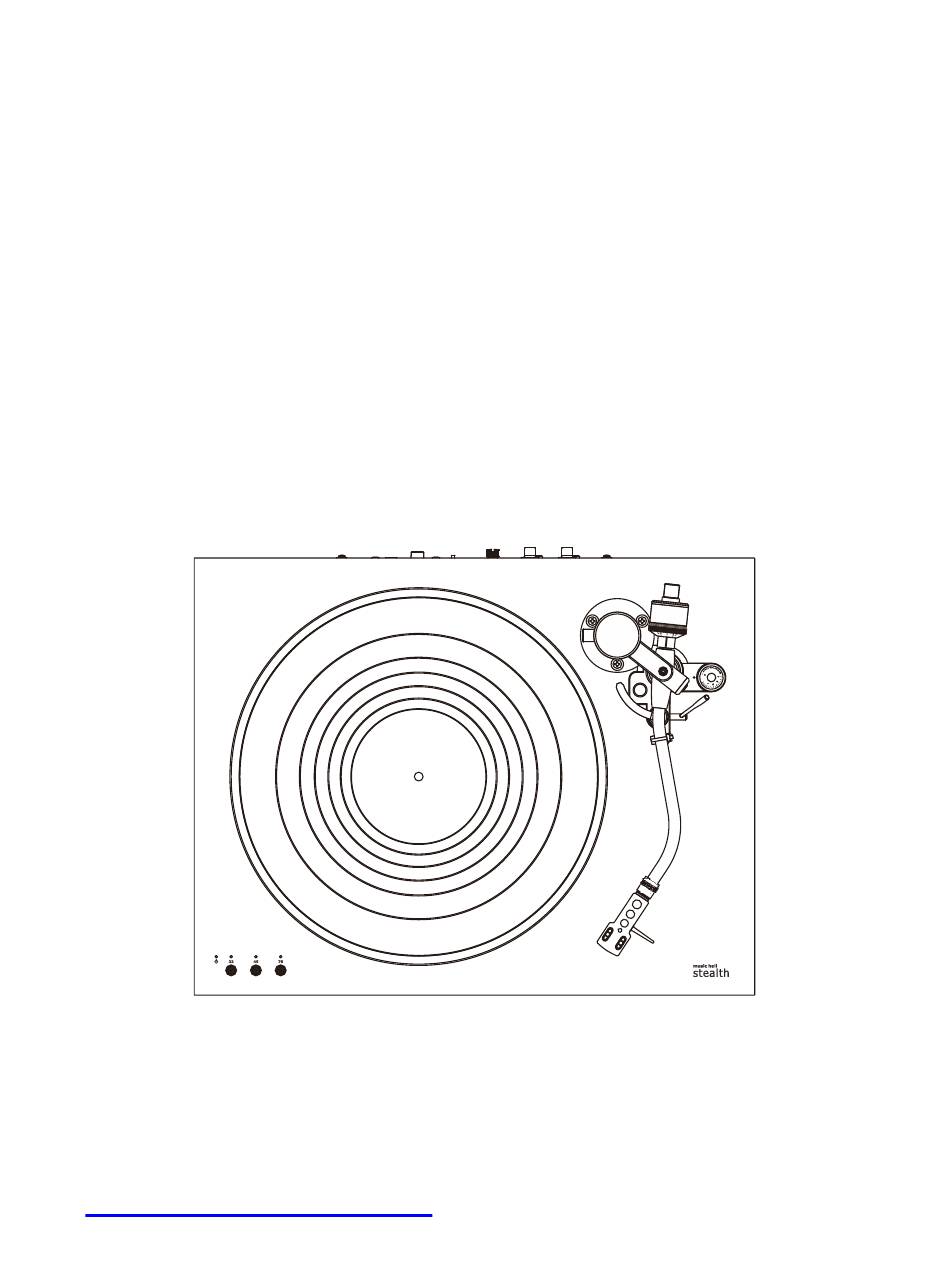

INSTRUCTION MANUAL
music hall
http://www.musichallaudio.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the stealth and is the answer not in the manual?

Questions and answers

Related Manuals for MUSIC HALL stealth

Summary of Contents for MUSIC HALL stealth

  • Page 1 INSTRUCTION MANUAL music hall http://www.musichallaudio.com...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions carefully. 2. Keep these instructions for later reference. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use the device near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Always ensure a sufficient ventilation. Install in accordance with the manufacturer’s instructions.

  • Page 3: Setup And Assembly

    FEATURES MOTOR PROTECTION FUNCTION If the rotation of the turntable has not reached constant speed after 30 sec, the motor will stop and the power indicator #4 will flash. If the motor stops and the power indicator flashes, press any speed button to restart. STANDBY This device has an automatic standby mode which is activated after 20 minutes of non-use.
  • Page 4 Install the cartridge to the head shell and tighten it with screws provided with the cartridge. The Stealth turntable comes with an Ortofon 2M Blue cartridge already fitted on the head shell. 5. Insert the head shell firmly into the front end of the tonearm. Turn the lock nut counter- clockwise until tightly attached.

  • Page 5: Part Names And Functions

    PART NAMES and FUNCTIONS 14 15 16 17 19 20 1. Platter 2. Rubber mat 3. Spindle 4. Power Indicator The LED lights blue when switched on by POWER ON/OFF button on the rear panel. 5. Speed buttons Push speed buttons to select the appropriate rotation speed to play vinyl record. Touch one more time to stop playback.
  • Page 6 PART NAMES and FUNCTIONS 11. Anti-skate control dial While the record is playing, a force acts on the stylus tip to pull it inward. This force can be counteracted by setting the same values for anti-skate and the tracking force. 12.

  • Page 7: Playing A Record

    CONNECTION Before connecting the unit, it is advised that you also consult your current equipment instruction manual. IMPORTANT: Be sure to turn off the equipment before you make changes to the different connections. 1. Connect the AC adapter to an AC outlet. 2.

  • Page 8: Specification

    SPECIFICATION 1. GENERAL SECTION Power Supply DC12V，2.0A Standby Power consumption Less than 0.3 W, Auto stop on more than 20 minutes Dimensions 453(W) x 361.67(D) x 146.7(H) mm Weight 11Kg (24lbs.) 2. FEATURES Turntable Type 3-speed full manual, Auto stop Cartridge Type Moving magnetic cartridge Motor...

  • Page 9: Tonearm Section

    Cloth dust cover x 1 Additional counterweight, Sub weight x 1 Transfer plug x4 (UL/PSE x1, VDE x1, UK x1, SAA x1) S u b we ig h t 7. NOTES: Music Hall reserves the right to change, modify or substitute parts.

  • Page 10: Warranty

    WARRANTY This entitles you to have the music hall Stealth repaired free of charge, at our discretion, for one year after the date of purchase, at any authorized Music Hall Service Center, provided the unit was purchased from an authorized dealer. Your original sales receipt is proof of purchase date.
