Raynor Commander II Safety Signal 3240RGD Owner's Manual

For residential use only
Hide thumbs
Table of Contents

Advertisement

Quick Links

GARAGE DOOR OPENER
Model 3240RGD
For Residential Use Only
Owner's Manual
■
Please read this manual and the enclosed safety materials carefully!
■
Fasten the manual near the garage door after installation.
■
The door WILL NOT CLOSE unless the Protector System
aligned.
■
Periodic checks of the opener are required to ensure safe operation.
■
The model number label is located on the front panel of your opener.
TM
Raynor Garage Doors
1101 E. River Road
Dixon, Illinois 61021
www.raynor.com
®
is connected and properly

Advertisement

Table of Contents
loading

Related Manuals for Raynor Commander II Safety Signal 3240RGD

Summary of Contents for Raynor Commander II Safety Signal 3240RGD

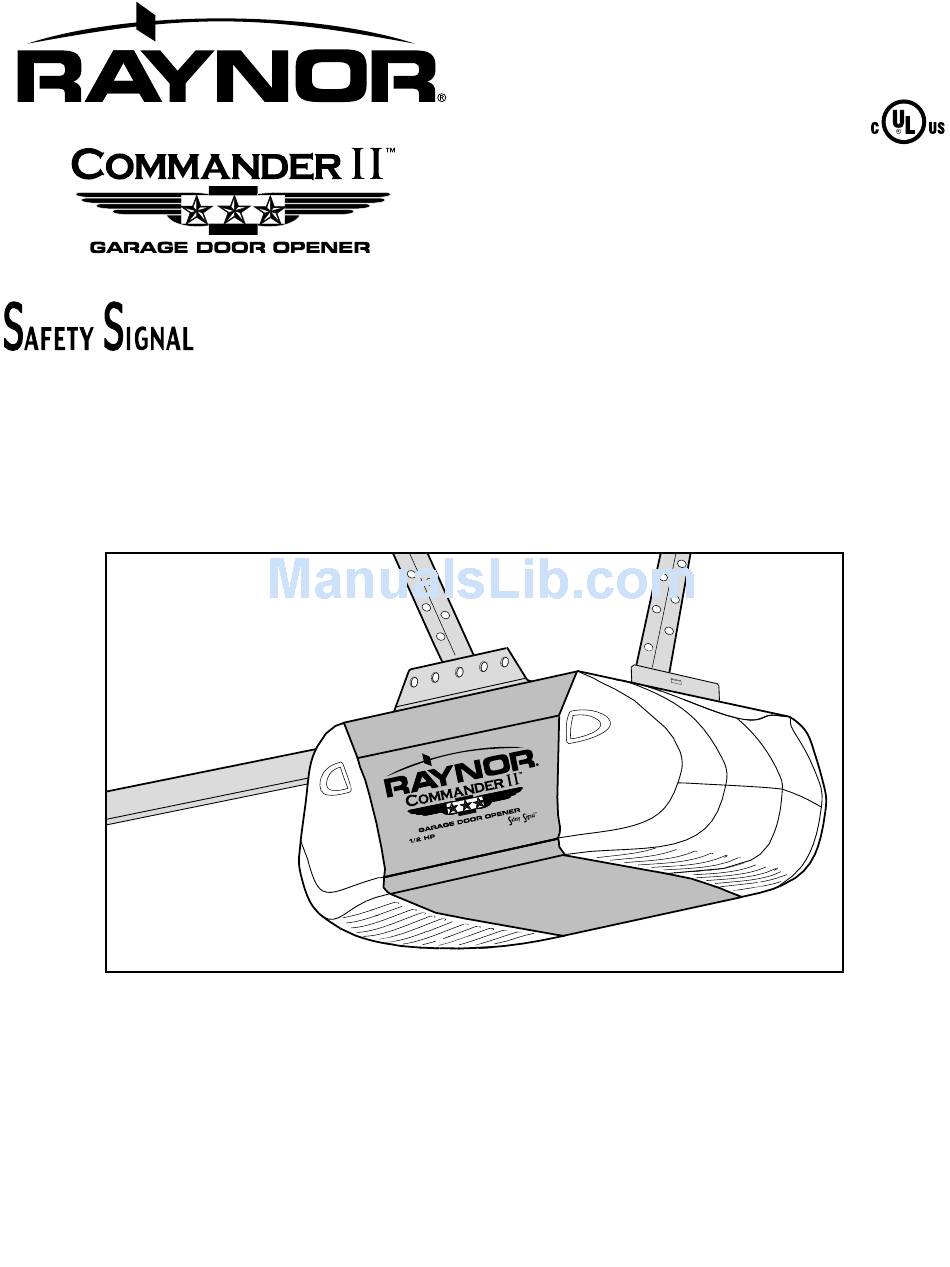

  • Page 1 Raynor Garage Doors 1101 E. River Road Dixon, Illinois 61021 www.raynor.com GARAGE DOOR OPENER Model 3240RGD For Residential Use Only Owner’s Manual ■ Please read this manual and the enclosed safety materials carefully! ■ Fasten the manual near the garage door after installation.

  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION ADJUSTMENT 23-25 Safety symbol and signal word review ........2 Adjust the travel limits .............. 23 Preparing your garage door ............3 Adjust the force ................ 24 Tools needed ................3 Test the safety reversal system..........25 ®...

  • Page 3: Preparing Your Garage Door

    Preparing your garage door Before you begin: To prevent possible SERIOUS INJURY OR DEATH: • Disable locks. • ALWAYS call a trained door systems technician if garage • Remove any ropes connected to garage door. door binds, sticks, or is out of balance. An unbalanced •...

  • Page 4: Planning

    Planning Identify the type and height of your garage door. Survey your garage area to see if any of the conditions below apply to your installation. Additional materials may be required. You may find it helpful to refer back to this page and the accompanying illustrations as you proceed with the installation of your opener.

  • Page 5: Carton Inventory

    Carton Inventory Your garage door opener is packaged in two cartons which If anything is missing, carefully check the packing material. Parts contain the motor unit and all parts illustrated below. Accessories may be stuck in the foam. Hardware for installation is also listed will depend on the model purchased.

  • Page 6: Assembly

    Assembly Step 1 HARDWARE SHOWN ACTUAL SIZE Fasten the Rail to the Motor Unit To avoid installation difficulties, do not run the garage door opener until instructed to do so. Hex Bolt 1/4-20x7/16" To aid in assembly and installation, replace the foam packing around the motor unit.

  • Page 7: Installation

    WARNING INSTALLATION IMPORTANT INSTALLATION INSTRUCTIONS WARNING WARNING To reduce the risk of SEVERE INJURY or DEATH: READ AND FOLLOW ALL INSTALLATION WARNINGS AND NEVER wear watches, rings or loose clothing while INSTRUCTIONS. installing or servicing opener. They could be caught in garage door or opener mechanisms.

  • Page 8: Determine The Header Bracket Location

    Installation Step 1 Unfinished Determine the Header Bracket Location Ceiling OPTIONAL CEILING MOUNT HEADER BRACKET To prevent possible serious injury or death: Header Wall • Header bracket MUST be RIGIDLY fastened to structural Vertical Centerline support on header wall or ceiling, otherwise garage door of Garage Door might not reverse when required.

  • Page 9: Install The Header Bracket

    Installation Step 2 Install the Header Bracket You can attach the header bracket either to the wall above the Wall Mounting Holes garage door, or to the ceiling. Follow the instructions which will work best for your particular requirements. Do not install the CEILING MOUNT ONLY The nail hole is for positioning only.

  • Page 10: Attach The Rail To The Header Bracket

    Installation Step 3 Attach the Rail to the Header Bracket • Position the opener on the garage floor below the header bracket. Use packing material as a protective base. NOTE: If the door spring is in the way you’ll need help. Have someone hold the opener securely on a temporary support to allow the rail to clear the spring.

  • Page 11: Install The Protector System

    Installation Step 4 ® Install The Protector System Be sure power is not connected to the garage door opener The safety reversing sensor must be connected and aligned BEFORE installing the safety reversing sensor. correctly before the garage door opener will move in the down To prevent SERIOUS INJURY OR DEATH from a closing direction.
  • Page 12 Installing the Brackets Be sure power to the opener is disconnected. Install and align Figure 1 Figure 1 DOOR TRACK MOUNT (RIGHT SIDE) the brackets so the sensors will face each other across the garage door, with the beam no higher than 6" (15 cm) above the floor. Door They may be installed in one of three ways, as follows: Track...
  • Page 13 Mounting and Wiring the Safety Reversing Sensors Figure 5 • Slide a 1/4"-20x1/2" carriage bolt head into the slot on each Wing Nut sensor. Use wing nuts to fasten sensors to brackets, with 1/4"-20 lenses pointing toward each other across the door. Be sure the lens is not obstructed by a bracket extension (Figure 5).

  • Page 14: Position The Opener

    Installation Step 5 Position the Opener To prevent damage to garage door, rest garage door opener Follow instructions which apply to your door type as illustrated. rail on 2x4 placed on top section of door. Sectional Door or One-Piece Door with Track A 2x4 laid flat is convenient for setting an ideal door-to-rail distance.

  • Page 15: Hang The Opener

    Installation Step 6 Hang the Opener To avoid possible SERIOUS INJURY from a falling garage door Three representative installations are shown. Yours may be opener, fasten it SECURELY to structural supports of the different. Hanging brackets should be angled garage. Concrete anchors MUST be used if installing ANY (Figure 1) to provide rigid support.

  • Page 16: Install The Door Control

    Installation Step 7 Install the Door Control To prevent possible SERIOUS INJURY or DEATH from Locate door control within sight of the door at a minimum height electrocution: of 5 feet (1.5 m) where small children cannot reach, and away •...

  • Page 17: Install The Lights

    Installation Step 8 Install the Lights To prevent possible OVERHEATING of the endpanel or light • Press the release tabs on both sides of lens. Gently rotate lens socket: back and downward until the lens hinge is in the fully open •...

  • Page 18: Electrical Requirements

    Installation Step 10 Electrical Requirements To prevent possible SERIOUS INJURY OR DEATH from electrocution or fire: To avoid installation difficulties, do not run the opener at this • Be sure power is not connected to the opener, and time. disconnect power to circuit BEFORE removing cover to To reduce the risk of electric shock, your garage door opener has establish permanent wiring connection.

  • Page 19: Fasten The Door Bracket

    Installation Step 12 Fasten the Door Bracket Fiberglass, aluminum or lightweight steel garage doors WILL Follow instructions which apply to your door type as illustrated REQUIRE reinforcement BEFORE installation of door bracket. below or on the following page. Contact your door manufacturer for reinforcement kit. A horizontal reinforcement brace should be long enough to be secured to two or three vertical supports.
  • Page 20 One-Piece Doors Please read and comply with the warnings and reinforcement instructions on the previous page. They apply to one-piece doors also. • Center the door bracket on the top of the door, in line with the header bracket as shown. Mark either the left and right, or the top and bottom holes.
  • Page 21 Installation Step 13 Outer Inner Connect Door Arm to Trolley Trolley Trolley Follow instructions which apply to your door type as illustrated below and on the following page. Sectional Doors Only Ring Clevis Pin • Make sure garage door is fully closed. Pull the emergency Fastener 5/16"x1"...

  • Page 22: Connect The Door Arm To The Trolley

    Figure 4 All One-Piece Doors Assemble the door arm, Figure 4: Door Bracket Ring • Fasten the straight and curved door arm sections together to Fastener Nuts the longest possible length (with a 2 or 3 hole overlap). Lock 5/16"-18 Washers •...

  • Page 23: Adjust The Travel Limits

    Adjustment Step 1 Adjust the UP and DOWN Travel Limits Without a properly installed safety reversal system, persons Limit adjustment settings regulate the points at which the door (particularly small children) could be SERIOUSLY INJURED OR will stop when moving up or down. KILLED by a closing garage door.

  • Page 24: Adjustment

    Adjustment Step 2 Adjust the Force Without a properly installed safety reversal system, persons Force adjustment controls are located on the back panel of the (particularly small children) could be SERIOUSLY INJURED or motor unit. Force adjustment settings regulate the amount of KILLED by a closing garage door.

  • Page 25: Test The Safety Reversal System

    Adjustment Step 3 Test the Safety Reversal System Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or TEST KILLED by a closing garage door. • With the door fully open, place a 1-1/2" (3.8 cm) board (or a •...

  • Page 26: Operation

    WARNING Operation IMPORTANT SAFETY INSTRUCTIONS WARNING WARNING To reduce the risk of SEVERE INJURY or DEATH: READ AND FOLLOW ALL WARNINGS AND NEVER use handle to pull garage door open or closed. If INSTRUCTIONS. rope knot becomes untied, you could fall. ALWAYS keep remote controls out of reach of children.

  • Page 27: Using The Wall-Mounted Door Control

    Using the Wall-Mounted Door Control To Open the Door Manually The Multi-Function Door Control Press the push bar to open or close the door. Push To prevent possible SERIOUS INJURY OR DEATH from a falling Press again to reverse the door during the Button garage door: closing cycle or to stop the door while it’s...

  • Page 28: Care Of Your Garage Door Opener

    Care of Your Opener The Remote Control Battery Limit and force adjustments: Weather conditions may cause some FORCE CONTROLS To prevent possible SERIOUS INJURY OR DEATH: minor changes in door operation • NEVER allow small children near batteries. requiring some re-adjustments, particularly during the first year of •...

  • Page 29: Having A Problem

    Having a Problem? My door will not close and the light bulbs blink on my motor unit: The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the down direction. Diagnostics • Verify the safety sensors are properly installed, aligned and Located On free of any obstructions.

  • Page 30: Diagnostic Chart

    Diagnostics Located On Installed Motor Unit Safety Reversing Sensor LED or Diagnostic “Learn” Button Your garage door opener is programmed with self-diagnostic capabilities. The “Learn” button/diagnostic LED will flash a number of times then pause signifying it has found a potential issue. Consult Safety Reversing Sensor Diagnostic Chart below.

  • Page 31: Programming

    Programming NOTICE: If this garage door opener is operated with a non-rolling code transmitter, the technical measure in the AFETY IGNAL receiver of the garage door opener, which provides security against code-theft devices, will be circumvented. The owner of the copyright in the garage door opener does not authorize the purchaser or supplier of the non-rolling code transmitter to circumvent that technical measure.

  • Page 32: To Add, Reprogram Or Change A Keyless Entry Pin

    To Add, Reprogram or Change a Keyless Entry PIN NOTE: Your new Keyless Entry must be programmed to operate your garage door opener. Using the “Learn” Button Using the Multi-Function Door Control NOTE: This method requires two people if the Keyless Entry is Press and release the “learn”...

  • Page 33: Repair Parts

    Repair Parts Rail Assembly Parts PART DESCRIPTION 41A6353 Hardware bag (includes sprocket coupling) 81C275 Rack 41A6262 Complete trolley assembly 3077SD Screw Drive one-piece rail 7' (2.1 m) 3088SD Screw Drive One-piece 8' (2.4 m) 41A4836 Drive sprocket kit 25C20 Sprocket coupling Installation Parts 41A6312 Rail End Bracket...

  • Page 34: Motor Unit Assembly Parts

    Motor Unit Assembly Parts PART PART DESCRIPTION DESCRIPTION 31C568 Drive shaft cover 41A4837-1 Worm gear and retainer 41B4245 Line cord 41A6635 Low voltage wire harness 30B620 Capacitor – 1/2 HP 41A6634 High voltage wire harness 41A3150 Terminal block w/screws 41AS050R2 Receiver logic board 41D4671 Limit switch assembly...

  • Page 35: Accessories

    Accessories 1702LM Outside Quick Release: 371RGD 1-Button Remote Control: AFETY IGNAL Required for a garage with NO access door. Includes visor clip. Enables homeowner to open garage door manually from outside by disengaging trolley. 59LM Outside Keylock: 373RGD 3-Button Remote AFETY IGNAL Control:...

  • Page 36: Repair Parts And Service

    LIFETIME MOTOR WARRANTY Raynor (“Seller”) warrants to the first retail purchaser of this product, for the residence in which this product is originally installed, that it is free from defect in materials and/or workmanship for a period of one year from the date of purchase and that the motor is free from defect in materials and/or workmanship for a lifetime from the date of purchase.
