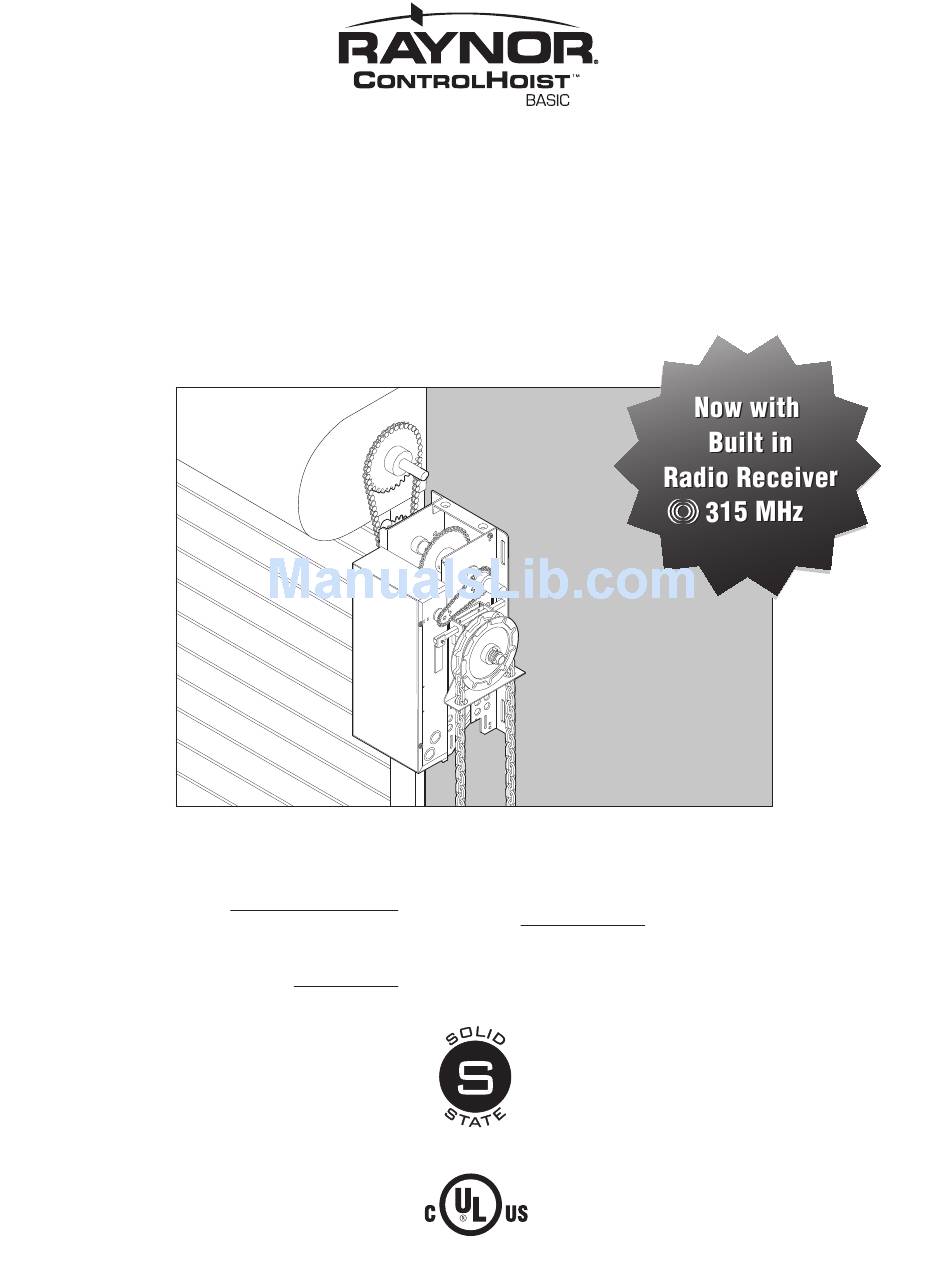

MEDIUM DUTY DOOR OPERATOR
MODELS MJ5011UCHB, MH5011URCHB, & MH5011ULCHB
INSTALLATION MANUAL
2 YEAR WARRANTY
Serial #
(located on electrical box cover)
Installation Date
Your model may look different than the model illustrated in this manual.
NOT FOR RESIDENTIAL USE
INTENDED FOR PROFESSIONAL
INSTALLATION ONLY.
Visit www.Raynor.com to locate a
professional installing dealer in your area.
OPERATOR RATING: 12 cycles per hour,
50 cycles per day; maximum.

Advertisement

Table of Contents

Troubleshooting

loading
Need help?

Need help?

Do you have a question about the MJ5011UCHB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Raynor MJ5011UCHB

Summary of Contents for Raynor MJ5011UCHB

  • Page 1 MEDIUM DUTY DOOR OPERATOR MODELS MJ5011UCHB, MH5011URCHB, & MH5011ULCHB INSTALLATION MANUAL Your model may look different than the model illustrated in this manual. 2 YEAR WARRANTY INTENDED FOR PROFESSIONAL INSTALLATION ONLY. Serial # Visit www.Raynor.com to locate a (located on electrical box cover) professional installing dealer in your area.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INFORMATION APPLICATION OPERATOR SPECIFICATIONS Weights and Dimensions ......5 Motor ........6 Mechanical .

  • Page 3: Safety Information

    SAFETY INFORMATION CAUTION WARNING Mechanical When you see this Signal Word on the following pages, it will alert you to the possibility of damage to your door and/or the door WARNING operator if you do not comply with the cautionary statements that accompany it.

  • Page 4: Application

    APPLICATION This operator includes a number of features that will provide years of reliable and safe operation. FEATURES: • Supports both monitored and non-monitored entrapment protection devices: Entrapment protection devices detect obstructions in the door's path and automatically reverse a closing door.

  • Page 5: Operator Specifications

    OPERATOR SPECIFICATIONS WEIGHTS AND DIMENSIONS MODELS MH AND MJ Hanging Weight: 60-70 LBS. (27.22-31.75 kg) 12.69" 6.13" (32.23 cm) (15.57 cm) 6.34" 6.34" MOUNTING DIMENSIONS 3.25" (16.1 cm) (16.1 cm) (8.26 cm) A - Wall Mounting B - Bracket Mounting (rolling door) 3.1"...

  • Page 6: Motor

    OPERATOR SPECIFICATIONS MOTOR ELECTRICAL TYPE: ........Limited duty OPERATOR VOLTAGE: .

  • Page 7: Preparation

    PREPARATION PREPARING YOUR DOOR The manufacturer recommends 3 feet (91.4 cm) of clearance in front of operator for serviceability. Before you begin: • Disable locks. • Remove any ropes connected to door. • Before the operator is installed, be sure the door has been properly aligned and is working smoothly. Although each installation will vary due to particular building characteristics, refer to the following general procedures to install the operator.

  • Page 8: Typical Installation

    TYPICAL INSTALLATION NOTE: The illustrations may not depict your installation. DETERMINE MOUNTING LOCATION FOR OPERATOR The operator may be mounted on the wall, shelf or bracket (not provided, see accessories or door manufacturer). The optimum distance between the door shaft and operator drive shaft is 12-15 inches. SHELF OR BRACKET MOUNTING WALL MOUNT Door Shaft...
  • Page 9 TYPICAL INSTALLATION INSTALL THE OPERATOR Wrap drive chain around operator sprocket. Wrap drive chain around door sprocket. Door Sprocket Drive Chain Electrical Box Door Sprocket Operator Drive Sprocket Drive Chain Master Link Position the operator until chain is taut (not tight). If chain is too tight, it may Door Sprocket cause damage to operator.

  • Page 10: Install Emergency Disconnect System

    TYPICAL INSTALLATION INSTALL EMERGENCY DISCONNECT SYSTEM MODEL MJ MODEL MH Secure chain retaining bracket to wall 4 feet above the floor. Secure keyhole bracket to wall 4 feet above the floor. Wrap hand chain around hand chain wheel and through chain guide.

  • Page 11: Power And Ground Wiring Connections

    TYPICAL INSTALLATION POWER AND GROUND WIRING CONNECTIONS WARNING To reduce the risk of SEVERE INJURY or DEATH: • ANY maintenance to the operator or in the area near the • ALL electrical connections MUST be made by a qualifi ed operator MUST NOT be performed until disconnecting the individual.

  • Page 12: Install 3-Button Control Station

    TYPICAL INSTALLATION POWER AND GROUND WIRING CONNECTIONS Attach power and ground wires to terminals. Power Control Line Power 115 Vac Single Phase INSTALL 3-BUTTON CONTROL STATION WARNING To prevent possible SERIOUS INJURY or DEATH from electrocution: • Install the entrapment warning placard on wall next to the •...

  • Page 13: Setup Radio Antenna

    TYPICAL INSTALLATION INSTALL 3-BUTTON CONTROL STATION Fasten the entrapment warning placard next to the control Connect wires to the control station and replace the control station. station cover. Power ^^^^ AUX ANT AUX ANT AUX ANT LEARN STOP CLOSE OPEN Entrapment LMEP1 LMEP2 COM INTRLK STOP...
  • Page 14 TYPICAL INSTALLATION SETUP RADIO ANTENNA OPTION B Locate the wire antenna on the outside of the electrical box. Attach the antenna to the electrical box using the wire tie Cut wire ties and discard standoff. holes. Bend antenna across the front of the electrical box, ensuring that the antenna is 4 inches away from the front of the electrical box.

  • Page 15: Adjustment

    ADJUSTMENT ADJUST THE LIMITS WARNING To avoid SERIOUS personal INJURY or DEATH from • Disconnect electric power BEFORE performing ANY electrocution: adjustments or maintenance. Depress retaining plate. Adjust CLOSE limit. Adjust OPEN limit. Retaining Plate OPEN Limit Nut Increase OPEN Limit Switch Door Travel CLOSE Limit Nut Decrease Door...

  • Page 16: Entrapment Protection

    ENTRAPMENT PROTECTION LIFTMASTER MONITORED ENTRAPMENT WARNING PROTECTION (LMEP) To prevent possible SERIOUS INJURY or DEATH from a closing IMPORTANT INFORMATION ABOUT THE LIFTMASTER door: MONITORED ENTRAPMENT PROTECTION DEVICES • Be sure power is not connected to the door operator BEFORE A LiftMaster Monitored Entrapment Protection (LMEP) device is installing the photoelectric sensor.

  • Page 17: Install The Photoelectric Sensors (Provided)

    ENTRAPMENT PROTECTION INSTALL THE PHOTOELECTRIC SENSORS (PROVIDED) The following instructions show recommended assembly of the bracket(s) and “C” wrap based on the wall installation of the photoelectric sensors on each side of the door or on the door tracks themselves. There are also alternate mounting methods which may fi t your installation requirements better.

  • Page 18: Mount The Photoelectric Sensors

    ENTRAPMENT PROTECTION MOUNT THE PHOTOELECTRIC SENSORS (PROVIDED) Center each sensor in the bracket with the lenses pointing toward each other across the door. Wing Nut “C” Wrap Wire Attach the sensors to the brackets with the provided hardware. Finger tighten the receiving sensor wing nut. Indicator Light Securely tighten the sending sensor wing nut.

  • Page 19: Logic Board Layout

    ENTRAPMENT PROTECTION ENTRAPMENT PROTECTION WIRING OPTIONS ALTERNATE INSTALLATIONS: CPS-U PHOTOELECTRIC SENSOR WITH 2-WIRE SENSING EDGE 2-wire electric or pneumatic sensing edge (White) (White/Black) CPS-U PHOTOELECTRIC SENSOR WITH 4-WIRE SENSING EDGE 4-wire electric sensing edge (White/Black) (White) 2-WIRE ELECTRIC OR PNEUMATIC SENSING EDGE (B2 NOT AVAILABLE) 2-wire electric or pneumatic sensing edge (White/Black) (White)

  • Page 20: Basic Programming

    BASIC PROGRAMMING DETERMINE THE WIRING TYPE The functionality of this operator is based on the wiring type. The operator is shipped from the factory in standard C2 wiring type (factory default). LIFTMASTER MONITORED ENTRAPMENT PROTECTION (LMEP) DEVICE IS REQUIRED. A LiftMaster Entrapment Protection (LMEP) device is required for the following wiring types. NOTES: •...

  • Page 21: Remote Controls

    BASIC PROGRAMMING DETERMINE THE WIRING TYPE ALTERNATE INSTALLATION: C2 WIRING TYPE WITH ALTERNATE INSTALLATION: C2 WIRING TYPE WITHOUT MONITORED ENTRAPMENT PROTECTION DEVICE MONITORED ENTRAPMENT PROTECTION DEVICE (FACTORY DEFAULT) • Momentary contact to open and stop with constant pressure to • Momentary contact to open and stop with constant pressure to close.

  • Page 22: Timer-To-Close (Ttc)

    BASIC PROGRAMMING REMOTE CONTROLS WARNING To prevent possible SEVERE INJURY or DEATH: • Activate door ONLY when it can be seen clearly, is properly • Install a LiftMaster Monitored Entrapment Protection (LMEP) adjusted and there are no obstructions to door travel. device.

  • Page 23: Testing

    BASIC PROGRAMMING TIMER-TO-CLOSE (TTC) CLEAR THE TIMER-TO-CLOSE (TTC) TIMER DEFEAT The TTC can be temporarily Release the Press and hold disabled by pressing a STOP button. TTC button the TTC button (LED will go for 6 seconds. TTC will become enabled after the Press and out).

  • Page 24: Emergency Disconnect

    EMERGENCY DISCONNECT WARNING To prevent possible SERIOUS INJURY from a moving chain: • DISCONNECT electric power to the operator BEFORE manually • NEVER use emergency disconnect unless doorway is clear of operating your door. persons and obstructions. • If possible, use emergency disconnect ONLY when door is CLOSED.

  • Page 25: Troubleshooting

    TROUBLESHOOTING Technical Support 1-888-4-RAYNOR (1-888-472-9667) CONDITION POSSIBLE CAUSE OPERATOR WILL NOT ➤ Verify primary line voltage (120 Vac, 60 Hz) is present at terminals L1 & L2. RESPOND TO ANY A) No power The LED will fl ash when power is present.

  • Page 26: Diagram

    TROUBLESHOOTING The status of the operator can be determined by counting the number of flashes of the LED on the logic board. DIAGNOSTIC LED TABLE # OF LED FLASHES STATUS System OK. Operating in C2 mode None System OK. Operating in B2 mode None Stuck CLOSE button Check for stuck close button or shorted close wire...

  • Page 27: Accessories

    ACCESSORIES ENTRAPMENT PROTECTION DEVICES REMOTE CONTROLS 315 MHZ CPS-UN4 ® LiftMaster offers a variety of SECURITY✚ Remote Controls for your application needs. Single to 4-Button, Commercial Protector System: visor or key chain. Contact your authorized dealer. LiftMaster Monitored Entrapment Protection (LMEP) 371LM provides protection on doors up to 45' wide.

  • Page 28: Control Connection Diagram

    CONTROL CONNECTION DIAGRAM IMPORTANT NOTES: 1. The 3-Button Control Station provided must be connected for operation. 2. If a STOP button is not used, a jumper must be placed between terminals 3 and 5. 3. If INTERLOCK is not used a jumper must be placed between terminals 3 and 4. 4.
