GARAGE DOOR OPENER

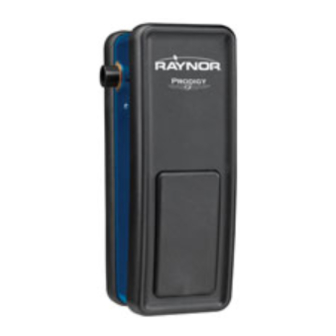

Model 3800RGD
For Residential and Light Duty Commercial Use
Install On Sectional Doors With
Torsion Assemblies Only
Owner's Manual
■
Please read this manual and the enclosed safety materials carefully!
■
Fasten the manual near the garage door after installation.
The door WILL NOT CLOSE unless The Protector System
■
connected and properly aligned.
■
Periodic checks of the opener are required to ensure safe operation.
■
The model number label is located behind the hinged door of your opener.
■
Do NOT exceed 10 complete cycles of door operation per hour.
TM
Raynor Garage Doors
1101 E. River Rd.
Dixon, Illinois 61021
www.raynor.com
and cable tension monitor are
®
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Raynor Safety Signal 3800RGD
Summary of Contents for Raynor Safety Signal 3800RGD

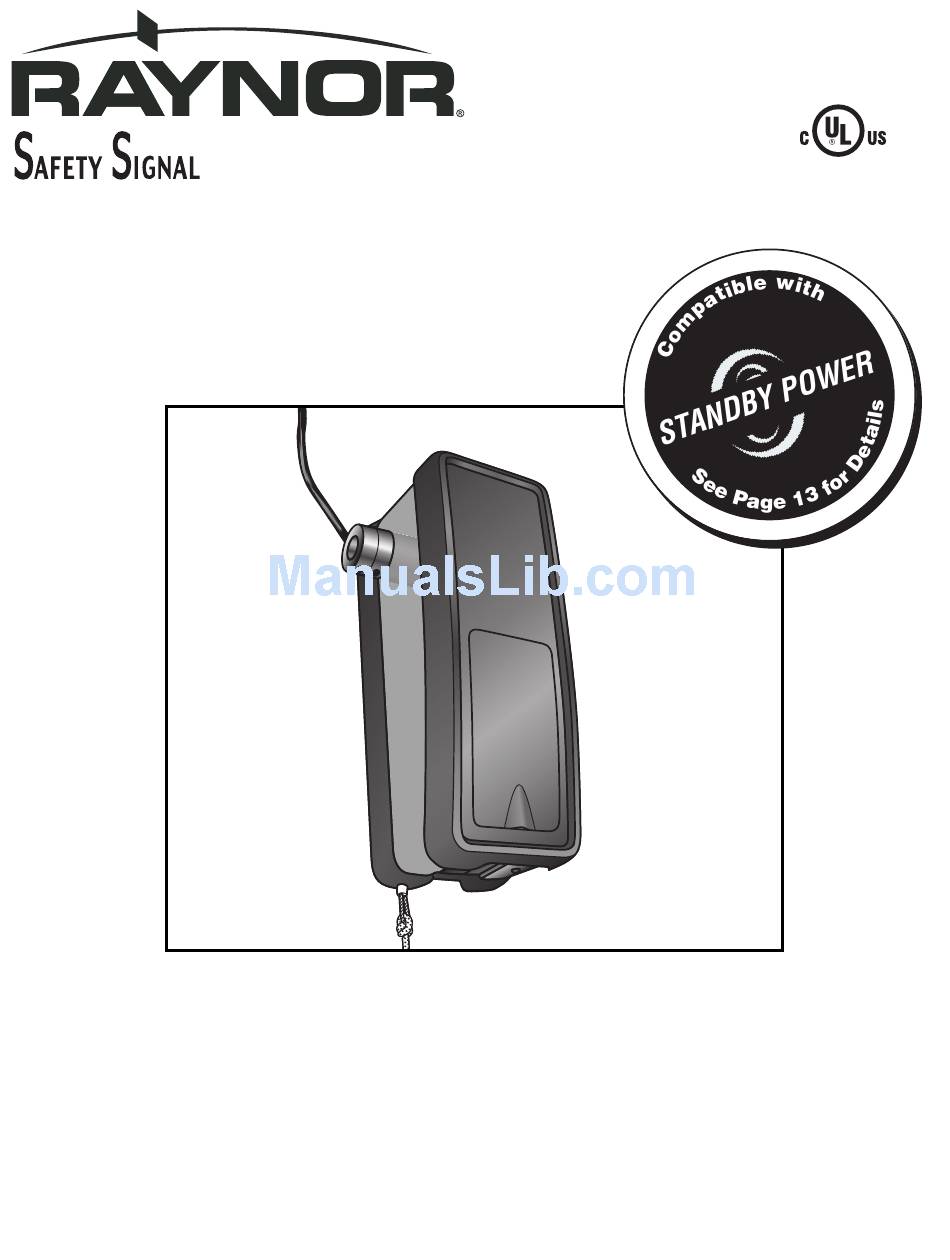

- Page 1 Raynor Garage Doors 1101 E. River Rd. Dixon, Illinois 61021 www.raynor.com GARAGE DOOR OPENER Model 3800RGD For Residential and Light Duty Commercial Use Install On Sectional Doors With Torsion Assemblies Only Owner’s Manual ■ Please read this manual and the enclosed safety materials carefully! ■...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Operation 21-27 Safety symbol review and signal word review ..2 Operation safety instructions .....21 Planning . -
Page 3: Planning
Planning Survey your garage area to see if any of the conditions • The torsion bar must extend at least 1" to 5" below apply to your installation. Additional materials may (2.5 cm to 12 cm) past the bearing plate. be required. -
Page 4: Preparing Your Garage Door
Preparing your Garage Door Before you begin: To prevent possible SERIOUS INJURY or DEATH: • Disable locks. • ALWAYS call a trained door systems technician if garage • Remove any ropes connected to garage door. door binds, sticks or is out of balance. An unbalanced garage •... -
Page 5: Carton Inventory
Carton Inventory purchased. If anything is missing, carefully check the Your garage door opener is packaged in one carton which packing material. contains the motor unit and the parts illustrated below. Note that accessories will depend on the model Remote Control Visor Clip ®... -
Page 6: Assembly
ASSEMBLY STEP 1 Attach the Collar to the Motor Unit To prevent possible SERIOUS INJURY or DEATH, the collar To avoid installation difficulties, do not run the garage MUST be properly tightened. The door may not reverse correctly or limits may be lost due to collar slip. door opener until instructed to do so. -
Page 7: Installation
WARNING INSTALLATION IMPORTANT INSTALLATION INSTRUCTIONS WARNING WARNING To reduce the risk of SEVERE INJURY or DEATH: 1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND 7. NEVER wear watches, rings or loose clothing while installing INSTRUCTIONS. or servicing opener. They could be caught in garage door or opener mechanisms. -
Page 8: Attach The Emergency Release Rope And Handle
INSTALLATION STEP 2 Attach the Emergency Release Rope To prevent possible SERIOUS INJURY or DEATH from a falling and Handle garage door: • Thread one end of the rope through the hole in the top • If possible, use emergency release handle to disengage door of the red handle so “NOTICE”... -
Page 9: Attach The Cable Tension Monitor (Required)
Figure 1 INSTALLATION STEP 4 Attach the Cable Tension Monitor (Required) Opener Torsion Bar This opener comes standard with the cable tension monitor. It is supplied as a device to monitor the Drum cables for ANY slack that may occur and will reverse the door when excessive slack is detected, eliminating Cable service calls. -
Page 10: Install The Door Control
INSTALLATION STEP 5 Install the Door Control To prevent possible SERIOUS INJURY or DEATH from electrocution: Locate door control within sight of door, at a minimum • Be sure power is not connected BEFORE installing door control. height of 5' (1.5 m) where small children cannot reach, •... -
Page 11: Install Remote Light
IMPORTANT SAFETY INSTRUCTIONS WARNING WARNING To reduce the risk of SEVERE INJURY or DEATH: 1. This portable luminaire has a polarized plug (one blade is 5. NEVER use with an extension cord unless plug can be fully wider than the other) as a feature to reduce the risk of inserted. -
Page 12: Electrical Requirements
INSTALLATION STEP 7 Electrical Requirements To prevent possible SERIOUS INJURY or DEATH from electrocution or fire: To avoid installation difficulties, do not run the opener at this time. • Be sure power is not connected to the opener, and disconnect power to circuit BEFORE removing cover to To reduce the risk of electric shock, your garage door establish permanent wiring connection. -
Page 13: Mount The Standby Power Unit (Spu) (Not Provided)
INSTALLATION STEP 8 Mount the Standby Power Unit (SPU) (not provided) 475LM Standby 475RGD Standby Power System Power System If the optional 475RGD Standby Power Unit is part of this installation it should be installed at this time. • The SPU can be mounted to either the ceiling or a wall within 3' (.9 m) of the motor unit. -
Page 14: Install The Protector System
INSTALLATION STEP 9 Install The Protector System ® Be sure power is not connected to the garage door opener BEFORE installing the safety reversing sensor. The safety reversing sensor must be connected and To prevent SERIOUS INJURY or DEATH from a closing garage aligned correctly before the garage door opener will door: move in the down direction. - Page 15 INSTALLING THE BRACKETS Figure 1 DOOR TRACK MOUNT (RIGHT SIDE) Be sure power to the opener is disconnected. Install and align the brackets so the safety reversing sensors will Door face each other across the garage door, with the beam no Track higher than 6"...
- Page 16 MOUNTING AND WIRING THE SAFETY REVERSING Figure 5 Wing Nut SENSORS 1/4"-20 • Slide a 1/4"-20x1/2" carriage bolt head into the slot on each sensor. Use wing nuts to fasten safety reversing sensors to brackets, with lenses pointing toward each other across the door.
-
Page 17: Adjustment
ADJUSTMENT STEP 1 Program the Travel Limits Without a properly installed safety reversal system, persons Travel limits regulate the points at which the door will (particularly small children) could be SERIOUSLY INJURED or stop when moving up or down. Follow the steps below KILLED by a closing garage door. -
Page 18: Setting The Force
ADJUSTMENT STEP 2 Setting the Force Without a properly installed safety reversal system, persons The force setting button is located on the front panel. (particularly small children) could be SERIOUSLY INJURED or The force setting measures the amount of force KILLED by a closing garage door. -
Page 19: Test The Safety Reversal System
ADJUSTMENT STEP 3 Test the Safety Reversal System Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or TEST KILLED by a closing garage door. • With the door fully open, place a 1-1/2" (3.8 cm) board •... -
Page 20: Test Cable Tension Monitor
ADJUSTMENT STEP 5 Test Cable Tension Monitor To prevent possible SERIOUS INJURY or DEATH from a falling garage door: If your cable tension monitor has been activated the • If possible, use emergency release handle to disengage door Indicator Light will blink 9 times. See page 18. ONLY when garage door is CLOSED. -
Page 21: Operation
WARNING OPERATION IMPORTANT SAFETY INSTRUCTIONS WARNING WARNING To reduce the risk of SEVERE INJURY or DEATH: 1. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS. 8. After ANY adjustments are made, the safety reversal system MUST be tested. 2. ALWAYS keep remote controls out of reach of children. NEVER permit children to operate or play with garage door 9. -
Page 22: Using The Wall-Mounted Door Control
Using the Wall-Mounted Door Control THE SMART CONTROL PANEL™ (PROG) Learn Feature Press the push bar to Automatic Light Push Bar open or close the door. The door control is equipped with a Prog <LEARN> button On/Off Press again to reverse to assist in learning remote controls to the unit. -
Page 23: Using The Remote Control
Using the Remote Control The Remote Control Battery NOTE: To activate the remote control functions, pull out the plastic pull tab protruding from the remote control To prevent possible SERIOUS INJURY or DEATH: housing. • NEVER allow small children near batteries. This remote control is equipped with a proximity lighting •... -
Page 24: Care Of Your Opener
CARE OF YOUR OPENER MAINTENANCE SCHEDULE Once a Month • Manually operate door. If it is unbalanced or binding, call a trained door systems technician. • Check to be sure door opens & closes fully. Adjust limits and/or force if necessary (see Adjustment Steps 1 and 2). - Page 25 Having a Problem? (Continued) 9. The door reverses for no apparent reason and 13. Door loses limits. opener lights blink for 5 seconds after reversing: • Collar not tightened securely. Tighten collar • Check the safety reversing sensor. Remove any (see Assembly Steps 1 and 2) and reprogram limits obstruction or align the receiving eye.
-
Page 26: Smart Control Panel™ Messages
Smart Control Panel™ Messages The following messages are contained within the Smart Control Panel™ and may appear during the operations of the unit: Message Meaning: This message will appear if the Safety Reversing Sensors are out of alignment, if they are blocked or if the wiring is disconnected. To clear message SAFETY SENSORS from Smart Control Panel™... -
Page 27: Diagnostic Chart
Motor Unit Installed Safety Reversing Sensor “Learn” Button LED or Diagnostic Your garage door opener is programmed with self-diagnostic capabilities. The “Learn” button/diagnostic LED will flash a “Learn” Button number of times then pause signifying it has found a potential issue. Consult Diagnostic Chart below. Diagnostic Chart 1 FLASH Symptom: One or both of the Indicator lights on the safety reversing sensors... -
Page 28: Programming
PROGRAMMING NOTICE: If this garage door opener is operated with a non-rolling code transmitter, the technical measure in AFETY IGNAL the receiver of the garage door opener, which provides security against code-theft devices, will be circumvented. The owner of the copyright in the garage door opener does not authorize the purchaser or supplier of the non-rolling code transmitter to circumvent that technical measure. -
Page 29: To Add, Reprogram Or Change A Keyless Entry Pin
To Add, Reprogram or Change a Keyless Entry PIN NOTE: Your new Keyless Entry must be programmed to operate your garage door opener. USING THE “LEARN” BUTTON USING THE SMART CONTROL PANEL™ LO C LI G NOTE: This method requires two people if the Keyless 1. -
Page 30: Programming Work Light Or Additional Work Light
Reprogramming Light or Additional Light Your garage door opener remote light has already been programmed at the factory to operate with your opener. Any additional or replacement remote lights will need to be programmed. 1. Press the “learn button” on light until LED comes ON. -
Page 31: Repair Parts
REPAIR PARTS Installation Parts L O C L I G PART PART DESCRIPTION DESCRIPTION 41A6319-2 Smart Control Panel™ 41A6388 Collar with set screws (2) 373PG 3-Button remote control 41A6102 Power door lock 10A19 3V2016 lithium battery: led and opener 41A5266-1 Safety sensor brackets (2) 10A33 3V2450 lithium battery: proximity switch... -
Page 32: Motor Unit Assembly Parts
Motor Unit Assembly Parts PART PART DESCRIPTION DESCRIPTION 41DJ001 Logic board complete with plate 41A6095 Motor with bracket 41A6408 Absolute Encoder System 41B122 Power cord 41C168 Transformer 41A6348-5 Cover... -
Page 33: Accessories
975LM Laser Park Assist: 480LM Alternate Mounting Kit: Laser enables homeowners to This kit allows model 3800RGD to be precisely park vehicles in the mounted below the torsion bar in the garage. case where the torsion bar is not round or the normal mounting area... -
Page 34: Operator Notes
OPERATOR NOTES... -
Page 35: Operator Notes
OPERATOR NOTES... -
Page 36: Repair Parts And Service
RAYNOR ® GARAGE DOORS TOLL FREE NUMBER: distributor. Look for him in the Yellow Pages, or visit our Dealer Locator on our Website www.Raynor.com. 1-800-528-9131 RAYNOR GARAGE DOOR OPENER FIVE-YEAR LIMITED WARRANTY ® LIFETIME MOTOR LIMITED WARRANTY RAYNOR ®...
