GARAGE DOOR OPENER
Model 3280RGDM 1/2 HP
For Residential Use Only
Owner's Manual
■ Please read this manual and the enclosed safety materials carefully!
■ Fasten the manual near the garage door after installation.
■ The door WILL NOT CLOSE unless the Protector System
■ Periodic checks of the opener are required to ensure safe operation.
■ The model number label is located under the light lens on the front panel of your opener.
™
®
is connected and properly aligned.
Raynor Garage Doors
1101 E. River Road
Dixon, Illinois 61021
www.raynor.com
Advertisement
Table of Contents
Related Manuals for Raynor 3280RGDM
Summary of Contents for Raynor 3280RGDM

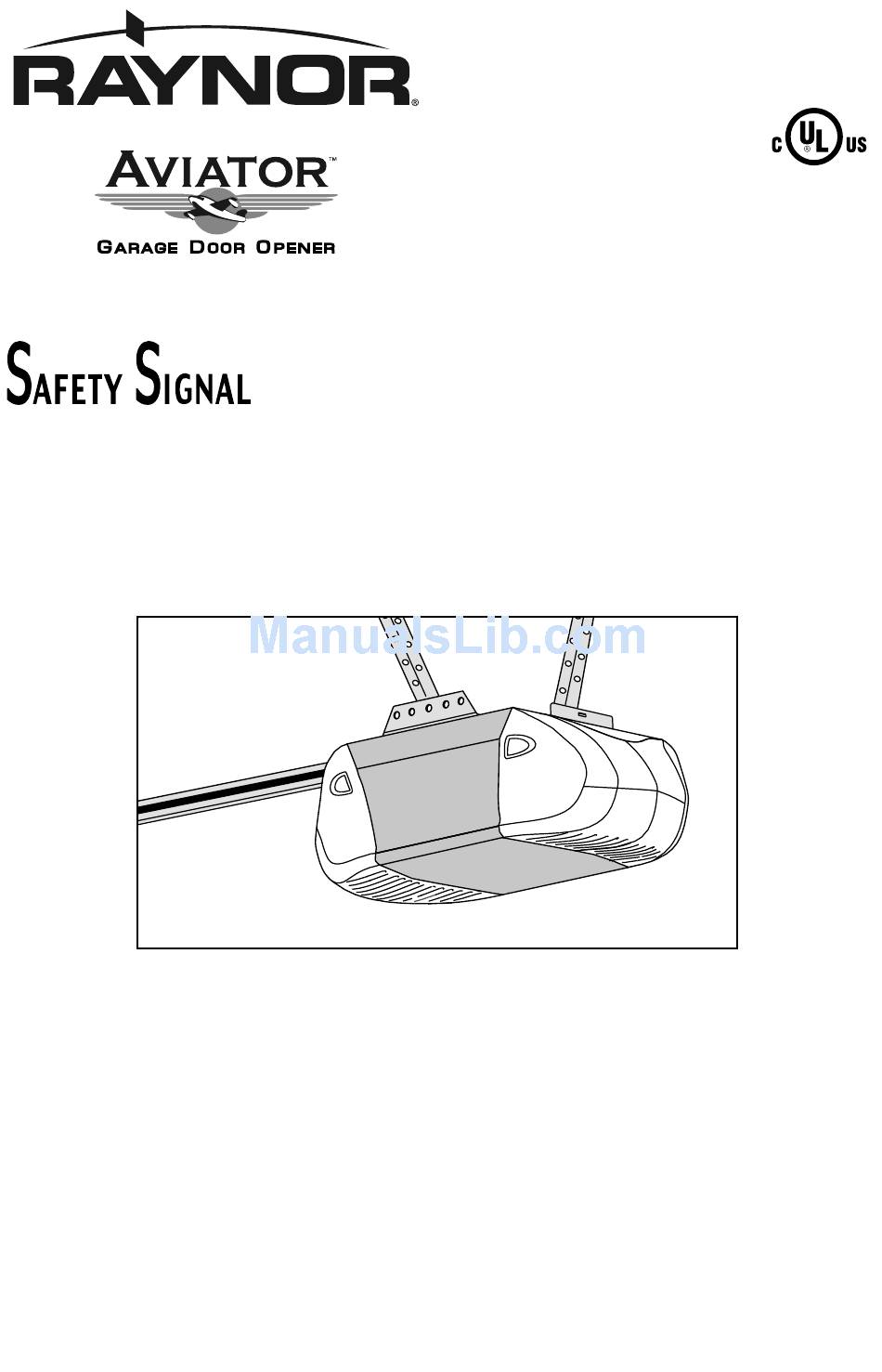

- Page 1 1101 E. River Road Dixon, Illinois 61021 www.raynor.com ™ GARAGE DOOR OPENER Model 3280RGDM 1/2 HP For Residential Use Only Owner’s Manual ■ Please read this manual and the enclosed safety materials carefully! ■ Fasten the manual near the garage door after installation.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Adjustment 23-25 Safety symbol and signal word review ....2 Adjust the UP and DOWN travel limits ....23 Preparing your garage door . -
Page 3: Preparing Your Garage Door
Preparing your garage door Before you begin: • Disable locks. To prevent possible SERIOUS INJURY OR DEATH: • ALWAYS call a trained door systems technician if • Remove any ropes connected to garage door. garage door binds, sticks, or is out of balance. An •... -
Page 4: Planning
Planning Identify the type and height of your garage door. Survey your garage area to see if any of the conditions below apply to your installation. Additional materials may be required. You may fi nd it helpful to refer back to this page and the accompanying illustrations as you proceed with the installation of your opener. -
Page 5: Carton Inventory
Carton Inventory Your garage door opener is packaged in two cartons If anything is missing, carefully check the packing which contain the motor unit and all parts illustrated material. Parts may be stuck in the foam. Hardware for below. Accessories will depend on the model purchased. installation is also listed below. -
Page 6: Assembly
ASSEMBLY STEP 1 Attach the Rail to the Motor Unit To avoid SERIOUS damage to opener, ONLY use To avoid installation diffi culties, do not run the garage bolts/fasteners mounted in top of motor unit. door opener until instructed to do so. Washered Bolt •... -
Page 7: Attach The Belt Cap Retainer
ASSEMBLY STEP 3 Attach the Belt Cap Retainer To avoid possible SERIOUS INJURY to fi ngers from moving garage door opener: • Position the belt cap retainer over the motor unit sprocket so the two holes in cap align with the two •... -
Page 8: Determine The Header Bracket Location
INSTALLATION STEP 1 OPTIONAL Unfi nished CEILING Ceiling Determine the Header Bracket Location MOUNT HEADER BRACKET Header Wall Vertical Centerline To prevent possible SERIOUS INJURY or DEATH: of Garage Door Structural • Header bracket MUST be RIGIDLY fastened to Supports structural support on header wall or ceiling, otherwise garage door might NOT reverse when required. -
Page 9: Install The Header Bracket
INSTALLATION STEP 2 Install the Header Bracket You can attach the header bracket either to the wall above Wall Mounting Holes the garage door, or to the ceiling. Follow the instructions which will work best for your particular requirements. Do not install the header bracket over drywall. If installing into masonry, use concrete anchors (not provided). -
Page 10: Attach The Rail To The Header Bracket
Header Wall INSTALLATION STEP 3 Ring Header Bracket Header Fastener Belt Pulley Attach the Rail to the Header Bracket Bracket Bracket • Position the opener on the garage fl oor below the header bracket. Use packing material as a protective base. -
Page 11: Hang The Opener
INSTALLATION STEP 5 Hang the Opener To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to structural Three representative installations are shown. Yours may supports of the garage. Concrete anchors MUST be be different. Hanging brackets should be angled (Figure 1) used if installing ANY brackets into masonry. -
Page 12: Install The Door Control
INSTALLATION STEP 6 Install the Door Control To prevent possible SERIOUS INJURY or DEATH from electrocution: Locate door control within sight of door at a minimum height of 5 feet (1.5 m) where small children cannot • Be sure power is NOT connected BEFORE installing door control. -
Page 13: Install The Light
INSTALLATION STEP 7 Install the Light To prevent possible OVERHEATING of the endpanel or lightsocket: • Press the release tabs on both sides of lens. Gently rotate lens back and downward until the lens hinge is in • DO NOT use short neck or specialty light bulbs. the fully open position. -
Page 14: Electrical Requirements
INSTALLATION STEP 9 Electrical Requirements To prevent possible SERIOUS INJURY or DEATH from To avoid installation diffi culties, do not run the opener electrocution or fi re: at this time. • Be sure power is NOT connected to the opener, and disconnect power to circuit BEFORE removing To reduce the risk of electric shock, your garage door cover to establish permanent wiring connection. -
Page 15: Install The Protector System
INSTALLATION STEP 10 ® Install The Protector System Be sure power is NOT connected to the garage door opener BEFORE installing the safety reversing sensor. The safety reversing sensor must be connected and aligned correctly before the garage door opener will To prevent SERIOUS INJURY or DEATH from a move in the down direction. - Page 16 INSTALLING THE BRACKETS Figure 1 DOOR TRACK MOUNT (RIGHT SIDE) Be sure power to the opener is disconnected. Install and align the brackets so the sensors will face each other Door Track across the garage door, with the beam no higher than 6" (15 cm) above the fl...
- Page 17 MOUNTING AND WIRING THE SAFETY Figure 5 REVERSING SENSORS Wing Nut Mounting: 1/4"-20 • Slide a 1/4"-20x1/2" carriage bolt head into the slot on each sensor. Use wing nuts to fasten sensors to brackets, with lenses pointing toward each other across the door.
- Page 18 Connect to garage door opener: • Strip 7/16" (11 mm) of insulation from each set of wires. Separate white and white/black wires suffi ciently to connect to the opener quick-connect terminals. Twist like colored wires together. Insert wires into quick-connect holes: white to white and white/black to grey (Figure 10).
-
Page 19: Fasten The Door Bracket
INSTALLATION STEP 11 Fasten the Door Bracket Fiberglass, aluminum or lightweight steel garage Follow instructions which apply to your door type as doors WILL REQUIRE reinforcement BEFORE installation of door bracket. Contact your door illustrated below or on the following page. manufacturer for reinforcement kit. - Page 20 ONE-PIECE DOORS Please read and comply with the warnings and reinforcement instructions on the previous page. They HARDWARE SHOWN apply to one-piece doors also. ACTUAL SIZE • Center the door bracket on the top of the door, in line with the header bracket as shown. Mark either the left and right, or the top and bottom holes.
- Page 21 Inner Trolley INSTALLATION STEP 12 Connect Door Arm to Trolley Outer Trolley Follow instructions which apply to your door type as illustrated below and on the following page. Clevis Pin 5/16"x1" SECTIONAL DOORS ONLY Ring Fastener • Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer trolley from the inner trolley.
-
Page 22: Connect The Door Arm To The Trolley
ALL ONE-PIECE DOORS Figure 5 CORRECT INCORRECT 1. Assemble the door arm, Figure 5: IMPORTANT: The groove on the straight door arm MUST Straight Straight face away from the curved door arm. Door Door • Fasten the straight and curved door arm sections Curved Curved (Groove... -
Page 23: Adjustment
ADJUSTMENT STEP 1 Adjust the UP and DOWN Travel Limits Without a properly installed safety reversal system, persons (particularly small children) could be Limit adjustment settings regulate the points at which the SERIOUSLY INJURED or KILLED by a closing garage door will stop when moving up or down. -
Page 24: Adjust The Force
ADJUSTMENT STEP 2 Adjust the Force Without a properly installed safety reversal system, Force adjustment controls are located on the back panel persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage of the motor unit. Force adjustment settings regulate the door. -
Page 25: Test The Safety Reversal System
ADJUSTMENT STEP 3 Test the Safety Reversal System Without a properly installed safety reversal system, persons (particularly small children) could be TEST SERIOUSLY INJURED or KILLED by a closing garage • With the door fully open, place a 1-1/2" (3.8 cm) board door. -
Page 26: Operation
OPERATION IMPORTANT SAFETY INSTRUCTIONS WARNING WARNING To reduce the risk of SEVERE INJURY or DEATH: 1. READ AND FOLLOW ALL WARNINGS AND 9. If one control (force or travel limits) is adjusted, the INSTRUCTIONS. other control may also need adjustment. 2. -
Page 27: Using The Wall-Mounted Door Control
B) To operate one door using all three buttons on the Using Your Garage Door Opener (Continued) hand-held remote: ™ light feature: Lights will also turn on AFETY IGNAL You may program the remote to when someone walks through the open garage door. open the door with the large button, With a Multi-Function Door Control, this feature may be Open... -
Page 28: Care Of Your Garage Door Opener
Care of Your Opener THE REMOTE CONTROL BATTERY LIMIT AND FORCE ADJUSTMENTS: Weather conditions may cause some FORCE CONTROLS minor changes in door operation To prevent possible SERIOUS INJURY or DEATH: requiring some re-adjustments, • NEVER allow small children near batteries. particularly during the fi... -
Page 29: Having A Problem
Having a Problem? 1. My door will not close and the light bulbs blink on Bell Wire my motor unit: The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the down direction. •... -
Page 30: Diagnostic Chart
Diagnostics Located On Motor Unit Bell Wire Installed Safety Reversing Sensor LED or Diagnostic Your garage door opener is programmed with self-diagnostic capabilities. The “Learn” button/diagnostic “Learn” Safety Reversing Sensor LED will fl ash a number of times then pause signifying Button it has found a potential issue. -
Page 31: Programming
PROGRAMMING NOTICE: If this S ™ garage door opener is operated with a non-rolling code transmitter, the technical measure AFETY IGNAL in the receiver of the garage door opener, which provides security against code-theft devices, will be circumvented. The owner of the copyright in the garage door opener does not authorize the purchaser or supplier of the non-rolling code transmitter to circumvent that technical measure. -
Page 32: To Add, Reprogram Or Change A Keyless Entry Pin
To Add, Reprogram or Change a Keyless Entry PIN NOTE: Your new Keyless Entry must be programmed to operate your garage door opener. USING THE “LEARN” BUTTON USING THE MULTI-FUNCTION DOOR CONTROL 1. Press and release the “learn” button NOTE: This method requires two people if the Keyless on motor unit. -
Page 33: Repair Parts
REPAIR PARTS Rail Assembly Parts PART DESCRIPTION 4A1008 Master link kit 41B5424 Belt pulley bracket 41B3869-3A Complete trolley assembly 2777BD One-piece rail 7' (2.1 m) 2778BD One-piece rail 8' (2.4 m) 2770BD One-piece rail 10' (3 m) 41A5434-11 Full belt assembly 41B4103 Tensioner assembly 83A11-2... -
Page 34: Motor Unit Assembly Parts
Motor Unit Assembly Parts (Down) LIMIT SWITCH ASSY. Contact Brown Wire Grey Drive Wire Gear (Up) Center Limit Yellow Contact Contact Wire PART DESCRIPTION PART NO. DESCRIPTION 41A4371 Belt cap retainer 41D3058 Universal replacement motor, Complete with: Motor, worm, 41A4885-5 Gear and sprocket assy, bracket, bearing assembly, Complete with: Spring washer;... -
Page 35: Accessories
ACCESSORIES 1702LM Outside Quick Release: 372RGD ™ 2-Button Remote AFETY IGNAL Control: Required for a garage with NO access door. Enables homeowner to open Includes visor clip. garage door manually from outside by disengaging trolley. 59LM Outside Keylock: 373RGD ™ 3-Button AFETY IGNAL Opens the garage door automatically... -
Page 36: Repair Parts And Service
RAYNOR GARAGE DOORS Technical Support Group For professional installation, parts and service, 6050 S. Country Club Road ® contact your local RAYNOR GARAGE DOORS Tucson, Arizona 85706 distributor. Look for him in the Yellow Pages, SERVICE INFORMATION TOLL FREE NUMBER: or visit our Dealer Locator on our Website www.Raynor.com.
