Harman Oakwood Installation & Operating Manual

Cast iron wood stove
Hide thumbs Also See for Oakwood:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Installation & Operating Manual

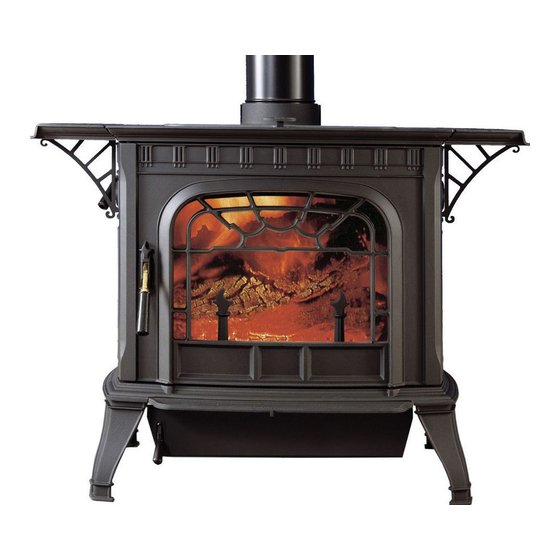

Harman Oakwood Cast Iron Wood Stove
"Ce manuel est disponible en Français sur demande"
EPA Certified by
r16
OMNI-Test Laboratories

SaFetY nOtICe

PleaSe read tHIS entIre Manual beFOre YOu InStall and uSe YOur neW rOOM Heater. FaIlure
tO FOllOW InStruCtIOnS MaY reSult In PrOPertY daMage, bOdIlY InjurY, Or even deatH.
FOr uSe In tHe u.S. and Canada. tHe OakWOOd IS nOt aPPrOved FOr MObIle HOMe InStallatIOn.
IF tHIS HarMan StOve IS nOt PrOPerlY InStalled, a HOuSe FIre MaY reSult. FOr YOur SaFetY,
FOllOW InStallatIOn dIreCtIOnS.
COntaCt lOCal buIldIng Or FIre OFFICIalS abOut reStrICtIOnS and InStallatIOn InSPeCtIOn
reQuIreMentS In YOur area.
COntaCt YOur lOCal autHOrItY (SuCH aS MunICIPal buIldIng dePartMent, FIre dePartMent,
FIre PreventIOn bureau, etC.) tO deterMIne tHe need FOr a PerMIt.
Cette guIde d'utIlISatIOn eSt dISPOnIble en FranCaIS. CHez vOtre COnCeSSIOnnaIre de HarMan
HOMe HeatIng.
Save tHeSe InStruCtIOnS.
#3-90-08327

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oakwood and is the answer not in the manual?

Questions and answers

Related Manuals for Harman Oakwood

Summary of Contents for Harman Oakwood

  • Page 1: Safety Notice

    FOllOW InStruCtIOnS MaY reSult In PrOPertY daMage, bOdIlY InjurY, Or even deatH. FOr uSe In tHe u.S. and Canada. tHe OakWOOd IS nOt aPPrOved FOr MObIle HOMe InStallatIOn. IF tHIS HarMan StOve IS nOt PrOPerlY InStalled, a HOuSe FIre MaY reSult. FOr YOur SaFetY, FOllOW InStallatIOn dIreCtIOnS.

  • Page 3: Table Of Contents

    FOr MObIle HOMe InStallatIOnS Please read this entire manual before you install and use your new heating appliance. Failure to follow instructions may result in property damage, bodily injury, or even death. 352 Mountain House Road Halifax, PA 17032 U.S.A. Harman Oakwood...

  • Page 4: Introduction

    Harman Air Wash System. The Harman Oakwood has an ash pan with its own ash door that is used to remove ashes while the stove is in operation. This means you can keep one fire all winter if you desire.

  • Page 5: Specifications

    SPeCIFICatIOnS 24.915" 26.235" 18.037" 21" 7.5" 30.234" 21" The Harman Oakwood meets the U.S. Environmental Protection Agency’s emission limits for wood heaters sold after July 1, 1990. Weight 440 lbs Flue Size 6 inch Log Length Recommended 21" Max Heating Capacity 2,000 sq.
  • Page 6 SPeCIFICatIOnS Top Load Door Optional Cooking Grill Top Load Opening Bypass Damper Control Handle Front Load Door Grate Andirons Front Load Door Latch Air Control Ash Door Ash Door Latch Harman Oakwood...
  • Page 7 Ash Door Your Oakwood burns wood very efficiently. Here are To open the ash door, lift up the handle and pull out. some guidelines that will help you achieve the best Close the door by pushing in and pushing the handle performance.
  • Page 8 Combustion Process Combustion in the Harman Oakwood is precisely Two important controls - the damper bypass handle controlled and is best explained in two parts. and the air control lever regulate the operation and During a wood fire, combustion air enters at the output of the stove.
  • Page 9 Always remember to open the bypass damper when you are loading, this allows the exhaust gases to pass directly into the flue outlet and reduces the chance of smoke spillage into the room. Harman Oakwood 9...
  • Page 10 Overfiring The Oakwood was designed to provide access to the is caused by: 1. Too much air flowing through the stove ash pan without the need for opening the main door.

  • Page 11: Installation

    InStallatIOn Floor Protection Requirements Parallel versus Corner Installations The Oakwood must be installed on a non-combustible A parallel installation is one in which the back and floor or a non-combustible floor protector. Floor sides of the stove are parallel to the walls behind and protection, when not using the optional bottom heat to the side of the stove.
  • Page 12 InStallatIOn/ClearanCeS 21" 25" Harman Oakwood See NFPA 211 for more installation clearance reductions when using USM wall protection, etc.
  • Page 13 InStallatIOn/ClearanCeS See NFPA 211 for more installation clearance reductions when using USM wall protection, etc. Harman Oakwood...
  • Page 14 InStallatIOn/ClearanCeS Harman Oakwood See NFPA 211 for more installation clearance reductions when using USM wall protection, etc.
  • Page 15 2.75" (70mm) NOTICE: Not for use in factory built fireplaces with If the fireplace floor can hold the 500 lb. (250 kg) Oakwood, hearth weight limitations. the stove should only be placed into the fireplace opening The Oakwood should not be installed into a factory...

  • Page 16: Venting

    When installed and operated according to this manual, the with local authorities before beginning your installation. Oakwood will produce enough hot gases to keep the chimney The NFPA (National Fire Protection Agency) permits warm so that adequate draft is maintained throughout the four methods for passing through a combustible wall.

  • Page 17: The Chimney

    Heating Appliances, UL 103, or (2) a code-approved masonry chimney for more than one appliance, in Canada certain chimney with a tile flue liner. In Canada, the Oakwood is exceptions may be made. Be sure to contact your building listed for use with prefabricated chimneys tested and listed...
  • Page 18 U.S. or Canadian high-temperature Oakwood. In addition to the requirements found in the standards, UL 103 or ULC-629. previous paragraphs, it is important to be aware that all clearances must be met, including those from the chimney connector to combustibles —...
  • Page 19 Warning: Do not install in sleeping room. to operate the stove. The air control is hot while in operation. The Harman Oakwood was tested with fuel door open and closed. Keep door closed for normal operating conditions. If you operate with doors open, open the by-pass and put a screen over the opening.

  • Page 20: Factory Built Chimney

    Chimney Cap roof Flashing roof radiation roof Factory-built Shield radiation Metal Chimney Shield attic Sealed Storm Collar radiation roof Flashing Shield Cathedral Style Chimney Support Minimum air Space Chimney with Chimney Finishing Support listing Collar Chimney Connector Chimney Connector Harman Oakwood...
  • Page 21 Sheet Metal airtight Screws per joint of insulated Chimney Connector Clean- Mantel and trim Protection damper Closed and Sealed with non- Combustible Floor Protection* Material. Combustible Floor * Floor Protection in accordance with Solid Fuel appliance listing Harman Oakwood...
  • Page 22 Oakwood to Flue Fireplace Conversion (Minimum nFPa 211 liner Connection) Flue liner with required airtight air Space insulated Clean-Out Stainless Steel Chimney Connector Must extend to Flue liner Minimum 8" Masonry thickness in Front of Smoke Chamber use damper adapter...
  • Page 23 Offsets. listed Fireplace trim Protection for reduced Clearance damper Plate removed or Fastened in Open Position use damper adapter or Seal with non- Combustible Material Floor Protection* Combustible Floor *Floor Protection in accordance with Solid Fuel appliance listing Harman Oakwood...
  • Page 24 Clean-out type approved thimbles Mantel & trim Protection damper Closed and Sealed with non-Combustible Material. Floor Protection* Combustible Floor * Floor Protection in accordance with Solid Fuel appliance listing ** Check with your local building codes for clearance. Harman Oakwood...

  • Page 25: Maintenance

    Oakwood. Carefully remove damaged glass, gasket material, and hold down clips (set aside). Referring to the diagram, note how the various components of the door system fit together.
  • Page 26 Also clean any other The FireDome on the Oakwood cuts creosote to almost surfaces that come into contact with the gasket. Place a small nothing when properly burned with dry seasoned wood.

  • Page 27: Options

    The rear heat shield will allow you to install your Modern homes with tight windows and doors, vapor Oakwood closer to the wall. Please note there are two barriers, and particularly with exhaust systems are the different shields based on whther the unit is rear or top most likely to require outside air.

  • Page 28: Service Parts

    Oakwood Service Parts beginning Manufacturing date: n/a Cast Iron Stove ending Manufacturing date: active 1-90-02490-1 (black) retired units 1-90-02490-2 (Charcoal) (ending Manufacturing date: june 2011) 1-90-02490-5 (Honey glo) (ending Manufacturing date: june 2009) 1-90-02490-3 (goldenfi re) (ending Manufacturing date: june 2011)
  • Page 29 Oakwood Service Parts beginning Manufacturing date: n/a ending Manufacturing date: active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
  • Page 30 Oakwood Service Parts beginning Manufacturing date: n/a ending Manufacturing date: active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
  • Page 31 Oakwood Service Parts beginning Manufacturing date: n/a ending Manufacturing date: active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.

  • Page 32: Warranty

    HHT chimney and termination 1 year Burners, logs and refractory years Limited 3 years Firebox and heat exchanger Lifetime All replacement parts 90 Days beyond warranty period See conditions, exclusions, and limitations on next page. 4021-645C 12-29-10 Page 1 of 2 Harman Oakwood...
  • Page 33 THE EXTENT PROVIDED BY LAW, HHT MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY SPECIFIED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE EXPRESSED WARRANTY SPECIFIED ABOVE. 4021-645C 12-29-10 Page 2 of 2 Harman Oakwood...
  • Page 34 ServICe MaIntenanCe lOg Date Of Service Performed By Description Of Service Harman Oakwood...
  • Page 35 Harman Oakwood...
  • Page 36 At Harman, we build each product to a standard, not a price. This powerful heating appliance boasts uncompromising attention to detail and helps preserve our planet by using environmentally responsible fuels. (Signature of Boxer) Your premium quality hearth product designed and assembled by the experienced and skilled members at Harman in Halifax, PA, USA.
