Harman TL 2.6 Owner's Manual Installation And Operation

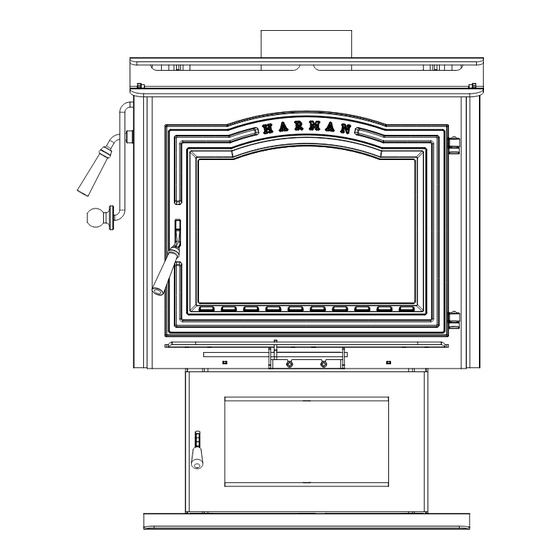

Non-catalytic, top load, wood burning room heater
Hide thumbs Also See for TL 2.6:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Owner's Manual

Installation and Operation

Model:
TL2.6
Non-Catalytic, Top Load,
Wood Burning Room Heater
Item #1-90-857000- Pedestal
# 1-90-858000 - Leg
Contact your local dealer with questions on installation, operation or service.
• Important operating and
maintenance instructions
included.
!
PLEasE REad THIs ENTIRE MaNuaL
BEfORE INsTaLLaTION aNd usE Of
THIs WOOd-BuRNINg ROOM HEaTER.
faILuRE TO fOLLOW THEsE
INsTRuCTIONs COuLd REsuLT IN
PROPERTy daMagE, BOdILy INjuRy
OR EvEN dEaTH.
•
dO NOT sTORE OR usE gasOLINE OR OTHER
fLaMMaBLE vaPORs aNd LIquIds IN THE
vICINITy Of THIs OR aNy OTHER aPPLIaNCE.
• Do not overfire - if any external part
sTaRTs TO gLOW, yOu aRE OvERfIRINg.
CLOsE aIR CONTROLs. OvERfIRINg WILL vOId
yOuR WaRRaNTy.
• Comply with all minimum ClearanCes to
COMBusTIBLEs as sPECIfIEd. faILuRE TO
COMPLy May CausE a HOusE fIRE.
!
TEsTEd aNd aPPROvEd fOR usE WITH dRy,
sEasONEd CORdWOOd ONLy. dO NOT BuRN WET
OR gREEN WOOd. BuRNINg aNy OTHER TyPE Of
fuEL WILL vOId yOuR WaRRaNTy.
www.harmanstoves.com
dO NOT dIsCaRd THIs MaNuaL
• Read, understand and
follow these instructions
for safe installation and
operation.
WARNING
CAUTION
NOTICE
• Leave this manual with
party responsible for use
and operation.
HOT, WILL CausE BuRNs.
• Do not touCh glass until it is CooleD
• never allow ChilDren to touCh glass
• Keep ChilDren away
• Carefully supervise ChilDren in same room
as fIREPLaCE.
• alert ChilDren anD aDults to hazarDs of high
TEMPERaTuREs.
HIgH TEMPERaTuREs May IgNITE CLOTHINg OR
OTHER fLaMMaBLE MaTERIaLs.
• Keep Clothing, furniture, Draperies anD other
fLaMMaBLE MaTERIaLs aWay.
CHECk BuILdINg COdEs PRIOR TO INsTaLLaTION.
•
INsTaLLaTION MusT COMPLy WITH LOCaL, REgIONaL, sTaTE
aNd NaTIONaL COdEs aNd REguLaTIONs.
• Consult loCal builDing, fire offiCials or authorities
HavINg juRIsdICTION aBOuT REsTRICTIONs, INsTaLLaTION
INsPECTION, aNd PERMITs.
3-90-08570
Wood Stove
Use & Care Video
!
WARNING
HOT suRfaCEs!
gLass aNd OTHER suRfaCEs aRE HOT
duRINg OPERaTION aNd COOL dOWN.
!
CAUTION
Rev: 12
November, 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TL 2.6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harman TL 2.6

Summary of Contents for Harman TL 2.6

  • Page 1: Installation And Operation

    Owner's Manual Wood Stove Installation and Operation Use & Care Video Model: TL2.6 Non-Catalytic, Top Load, Wood Burning Room Heater Item #1-90-857000- Pedestal # 1-90-858000 - Leg Contact your local dealer with questions on installation, operation or service. NOTICE dO NOT dIsCaRd THIs MaNuaL •...

  • Page 2: Save These Instructions

    REFER TO PRODUCT MANUAL FOR CLEARANCES WITH ADDITIONAL VENT CONFIGURATIONS. Cet appareil est aussi approuvé pour utiliser la grille de cuisson Harman # 1-00-08121 - L'AMORTISSEUR DE DÉVIATION DOIT ÊTRE OUVERT DO NOT OVERFIRE - IF HEATER OR CHIMNEY CONNECTOR GLOWS, YOU ARE OVERFIRING.

  • Page 3: Table Of Contents

    TL2.6 Woodburning Stove TaBLE Of CONTENTs section 1: Listing and Code approvals section 8: Operating Instructions A. Appliance Certifications A. Fuel Specifications B. Mobile Home Approval B. General Operating Information C. Glass Specifications C. Burning as a Fireplace D. Electrical Rating D.

  • Page 4: Section 1: Listing And Code Approvals

    TL2.6 Woodburning Stove section 1 - Listing and Code approvals a. appliance Certification e. btu & efficiency specifications Model: TL2.6 Woodburning Stove Particulate Emissions Laboratory: OMNI-Test Laboratories, Inc. 3.7g/hr Avg Report No. 135-S-30b-6.2 Rating: Type: Solid Fuel Room Heater / Wood *BTU Input: 11,300 - 32,700 / hr Burning Type.

  • Page 5: Section 2: Special Warnings And Notes

    TL2.6 Woodburning Stove section 2 - special Warnings and Notes Carbon monoxide, referred to as CO, is a colorless, CO detectors are very sensitive and may sound an alarm odorless gas that is produced during combustion of wood for fumes other than CO or CO from sources other than and other fuels.

  • Page 6: Section 3: Getting Started

    TL2.6 Woodburning Stove section 3 - getting started a. design, Installation & Location Considerations B. fire safety 1. appliance Location Maintain the designated clearances to combustibles. In- sulation must not touch the chimney. You must maintain Consideration must be given to safety, convenience, traffic the designated air space around the chimney.

  • Page 7: Component Locator

    TL2.6 Woodburning Stove C. Component Locations Top Load Door Top Load Opening Bypass Damper Control Handle Front Load Door Front Load Door Latch Air Control Ash Door Ash Door Latch d. flue direction Conversion The TL2.6 features a convertible flue collar for rear or top vent. Follow these instructions for changing the direction. First, remove both side shields by removing 2 tek screws each, and loosen 1/4-20 bolts with a 3/8"...

  • Page 8: Pre-Use Checklist

    TL2.6 Woodburning Stove E. Pre- use Check List Place the appliance in a location near the WaRNINg final installation and follow the procedures below: INsPECT aPPLIaNCE aNd COMPONENTs Open the appliance and remove all articles fOR daMagE. daMagEd PaRTs May packed inside.

  • Page 9: Section 4: Dimensions & Clearances

    Weight ........525 lbs The Harman TL2.6 meets the U.S. Environmental Protection Agency’s emission limits for wood heaters sold after July 1,...

  • Page 10: Clearances To Combustibles

    TL2.6 Woodburning Stove b. Clearances to Combustibles vertical venting Configuration Location single-wall Pipe Double-wall pipe unit to side Wall 17" / 432 mm 15" / 381 mm unit to Back Wall 17" / 432 mm 15" / 381 mm vent Pipe to side Wall 27" / 686 mm 25"...
  • Page 11 TL2.6 Woodburning Stove ClearanCe to Combustibles: horizontal venting Configuration Location single-wall Pipe unit to side Wall 15" / 381 mm unit to Back Wall 15" / 381 mm vent Pipe to side Wall 25" / 635 mm Corner Installation Corner to adjacent Wall 14.5" / 368 mm Connector to Wall 23"...

  • Page 12: Floor Protection

    TL2.6 Woodburning Stove C. floor Protection Requirements daNgER: The appliance pedestal or legs may not be removed for installation. Minimum Size floor protection (USA) is 50.6" Deep By 32.5" Wide. floor Protection Inches Millimeters Requirements Sides- USA /CANADA * Front- USA /CANADA * Rear- USA Rear- CANADA Wall...

  • Page 13: Section 5: Chimneys And Venting

    (but not beyond the inner surface of the liner). It must This Harman stove may be installed with a minimum (.6 mm) be cemented in place with refractory cement. This method 24 gauge blue or black steel, chimney connector pipe.

  • Page 14: The Chimney

    TL2.6 Woodburning Stove Non-combustible cover, one side only. If two covers are Closest Combustible Material Hole with minimum used, each must be mounted clearance of 18” on non-combustible spacers Minimum 2” (50mm) (450mm) Between at least 7/8” (21mm) away Clearance to Brick connector and wall.
  • Page 15 TL2.6 Woodburning Stove 1. Existing Masonry Chimneys If you plan on using a pre-existing masonry chimney, have Chimney liner it thoroughly inspected and cleaned. Any faults which make inner edges the chimney unsafe and unusable must be repaired prior to use.

  • Page 16: Factory Built Chimney

    TL2.6 Woodburning Stove standard Ceiling Installation with Cathedral Ceiling Installation with factory Built Chimney factory Built Chimney Chimney cap Chimney sections Storm collar Chimney cap Roof flashing Factory-Built metal Sealed storm chimney collar Roof flashing Roof radiation shield Roof radiation Attic radiation shield shield S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S...
  • Page 17 TL2.6 Woodburning Stove Chimney breach fireplace Conversion with non-Combustible wall Minimum clearance to unprotected ceiling 15” Chimney connector sealed at thimble Flue liner with required air space Airtight insulated Minimum of three sheet clean-out metal screws per joint of chimney connector Mantel and trim protection Floor Protection* Damper closed and sealed with non-combustible...
  • Page 18 TL2.6 Woodburning Stove tl2.6 to flue fireplace Conversion (minimum nfpa 211 liner Connection) Flue liner with required air space Stainlesssteel chimney connector must extend to flue liner Minimum 8” masonry thickness in front of smoke chamber Airtight insulated clean-out Use damper adapter or seal with non-combustible material Damper plate is removed or fastened in open position Floor Protection* Combustible Floor...
  • Page 19 TL2.6 Woodburning Stove full Relining fireplace Conversion: freestanding appliance UL1777 Stainless steel liner system or other approved lining system Follow liner manufacture’s instructions on insulation and support UL1777 insulated stainless steel flex liner or other approved lining system in offsets Damper plate is removed or fastened in open position.
  • Page 20 TL2.6 Woodburning Stove Chimney breach fireplace Conversion with Combustible wall 1” Clearance for exterior chimney or 2” clearance for interior chimney and 2” clearance for NFPA 211 - type approved thimbles Flue liner with required Minimum clearance from chimney air space connector to uprotected ceiling 15” Listed or approved thimble assembly Combustible Wall...

  • Page 21: Mobile Home Installation

    TL2.6 Woodburning Stove section 6 - mobile homes a. mobile home installation NOTE: The top sections of the chimney must be removable to allow a maximum clearance of 13.5 feet (411cm) from mobile home approval - u.s. only. ground level for transportation purposes. dO NOT INsTaLL IN a MOBILE HOME IN CaNada. 1.

  • Page 22: Section 7: Appliance Set-Up

    TL2.6 Woodburning Stove section 7 - appliance set-up a. Outside air attachment B. Leveling the appliance Parts and Supplies Needed: Kit #1-10-856082, 1 piece of Use metal shims for leveling with the pedestal base. When metal flexible pipe, 4" X needed length. 1 Rodent Screen, the leg option is chosen, each leg has a leveling adjuster.

  • Page 23: Optional Blower Kit

    TL2.6 Woodburning Stove d. Optional Blower Installation E. Brushed stainless Trim kit Option use ONLy Blower Part #1-00-856002 With This appliance. The optional blower kit installs easily to the rear of the TL2.6. First, remove the air jacket shield from the rear of the stove. Use the same four bolts to attach the blower as shown.

  • Page 24: Section 8: Operating Instructions

    TL2.6 Woodburning Stove section 8 - Operating Instructions B. general Operating Information CauTION: approved for use with wood fuel only. The use of any other fuel will void the product 1. draft Before you install and/or operate your wood stove, please warranty and may cause damage to the appliance read the entire contents of this manual.

  • Page 25: Burning As A Fireplace

    This appliance has been tested and approved for burning as Some of this air enters through holes in the rear bricks where an open fireplace. To do so, a spark screen (Harman part# it is used to revitalize the fire at the rear of the firebox. The 3-40-06960;...

  • Page 26: User Controls

    TL2.6 Woodburning Stove E. user Controls For low burn, slide the air control to the left. For medium Two important controls - the damper bypass handle and the burns, use notches 1 to 2. Maximum heat is attained with air control lever regulate the operation and output of the stove. the air control all the way to the right.
  • Page 27 TL2.6 Woodburning Stove Providing you have the charcoal bed described, close the dIsPOsaL Of asHEs; bypass damper by pulling the handle toward the front of the ashes should be placed in a steel container with a tight fitting lid. the closed container of ashes should stove.

  • Page 28: Section 9: Service & Maintenance

    TL2.6 Woodburning Stove solid fuel burning space heaters must be cleaned section 9 - service and Maintenance regularly, as soot, ash and creosote may accumulate. Creosote- formation and Need for Removal; When properly maintained, your stove will give you many years of trouble-free service.

  • Page 29: General Maintenance Procedures

    Replacement glass, which is ceramic glass, should be DO NOT leave the appliance unattended with the ash door obtained only through your Harman dealer. open. To replace a broken glass; first be sure to carefully remove the broken glass and any remaining shards or pieces.
  • Page 30 TL2.6 Woodburning Stove 3. firebox 5. Chimney Connector • frequency: As necessary / Yearly • frequency: As necessary / Yearly • By: User • By: Qualified Service Technician / User Cleaning the firebox and internal heat exchange surfaces is At the end of the burn season, brush and clean all sections recommended to maintain thermal efficiency.

  • Page 31: Section 10: Reference Materials

    TL2.6 Woodburning Stove section 10 - Reference Materials Save These Instructions 3-90-08570 Dry Seasoned Wood Only!

  • Page 32: Service Parts Listing(Pedestal)

    TL2.6 W/Pedestal service Parts Beginning Manufacturing date: sept 2011 Wood stove Ending Manufacturing date: active 1-90-857000-1 part number list on following page. 11/13...
  • Page 33 TL2.6 W/Pedestal service Parts Beginning Manufacturing date: sept 2011 Ending Manufacturing date: active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or stocked Hearth and Home Technologies does not sell directly to consumers distributor. . Provide model number and serial number when requesting service parts from your dealer or distributor.
  • Page 34 TL2.6 W/Pedestal service Parts Beginning Manufacturing date: sept 2011 Ending Manufacturing date: active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or stocked Hearth and Home Technologies does not sell directly to consumers distributor. . Provide model number and serial number when requesting service parts from your dealer or distributor.

  • Page 35: Service Parts Listing (Legs)

    TL2.6 W/Pedestal service Parts Beginning Manufacturing date: sept 2011 Ending Manufacturing date: active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or stocked Hearth and Home Technologies does not sell directly to consumers distributor. . Provide model number and serial number when requesting service parts from your dealer or distributor.
  • Page 36 TL2.6 w/Legs service Parts Beginning Manufacturing date: sept 2011 Wood stove Ending Manufacturing date: active 1-90-858000-1 part number list on following page. 11/13...
  • Page 37 TL2.6 w/Legs service Parts Beginning Manufacturing date: sept 2011 Ending Manufacturing date: active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or stocked Hearth and Home Technologies does not sell directly to consumers distributor. . Provide model number and serial number when requesting service parts from your dealer or distributor.

  • Page 38: Epa Hang Tag

    TL2.6 w/Legs service Parts Beginning Manufacturing date: sept 2011 Ending Manufacturing date: active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or stocked Hearth and Home Technologies does not sell directly to consumers distributor. . Provide model number and serial number when requesting service parts from your dealer or distributor.

  • Page 39: Warranty Policy

    TL2.6 w/Legs service Parts Beginning Manufacturing date: sept 2011 Ending Manufacturing date: active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or stocked Hearth and Home Technologies does not sell directly to consumers distributor. . Provide model number and serial number when requesting service parts from your dealer or distributor.

  • Page 40: Heat Output

    Manufactured by: HeartH & HoMe tecHnologies, inc. Model: tl2.6 u.s. enviroMental Protection agency Meets EPA particulate matter (smoke) control requirements for noncatalytic wood heaters built on or after July 1, 1990. sMoKe grams Per Hour efficiency 100% Wood heaters with higher efficiencies cost less to operate. Heat outPut 11,300 to 32,700 btu use this to choose the right size appliance for your needs.

  • Page 41: Limited Lifetime Warranty

    Hearth & Home Technologies LIMITEd LIfETIME WaRRaNTy Hearth & Home Technologies, on behalf of its hearth brands (”HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. WaRRaNTy COvERagE: HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance...
  • Page 42 WaRRaNTy CONdITIONs: • This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. A list of HHT authorized dealers is available on the HHT branded websites. • This warranty is only valid while the HHT appliance remains at the site of original installation. •...
  • Page 43 TL2.6 Woodburning Stove service & Maintenance Log Date Of Service Performed By Description Of Service Dry Seasoned Wood Only! 3-90-08570 Save These Instructions...
  • Page 44 At Harman, we build each product to a standard, not a price. This powerful heating appliance boasts uncompromising attention to detail and helps preserve our planet by using environmentally responsible fuels. (Signature of Boxer) Your premium quality hearth product designed and assembled by the experienced and skilled members at Harman in Halifax, PA, USA.
