Harman Oakleaf Replacement Instructions

Oakleaf Combustion Package Replacement Instructions
Part # 1-00-797022
Contents of Kit;
(1) 3-40-797022 - Combustion Package with Gasket
(1) 2-00-797504 - Combustion Package Cap
(2) 3-30-1252005014 - 1/4-20 x 1/2" HCS
(2) 3-30-1311820013 - 5/16-18 x 2" HCS
(2) 3-30-3025202509 - 1/4-20 x 2-1/2" SS SHCS
(2) 3-30-80311813 - 5/16-18 FHN
(2') 3-44-10050 - 1-1/2" x 3/8" Bulb Gasket w/PSA
(10') 3-44-1312 - 1/4" Round Gasket w/PSA
The following are instruction on how to properly replace
the Oakleaf combustion package. Note: The combustion
package must be removed from the front of the unit.

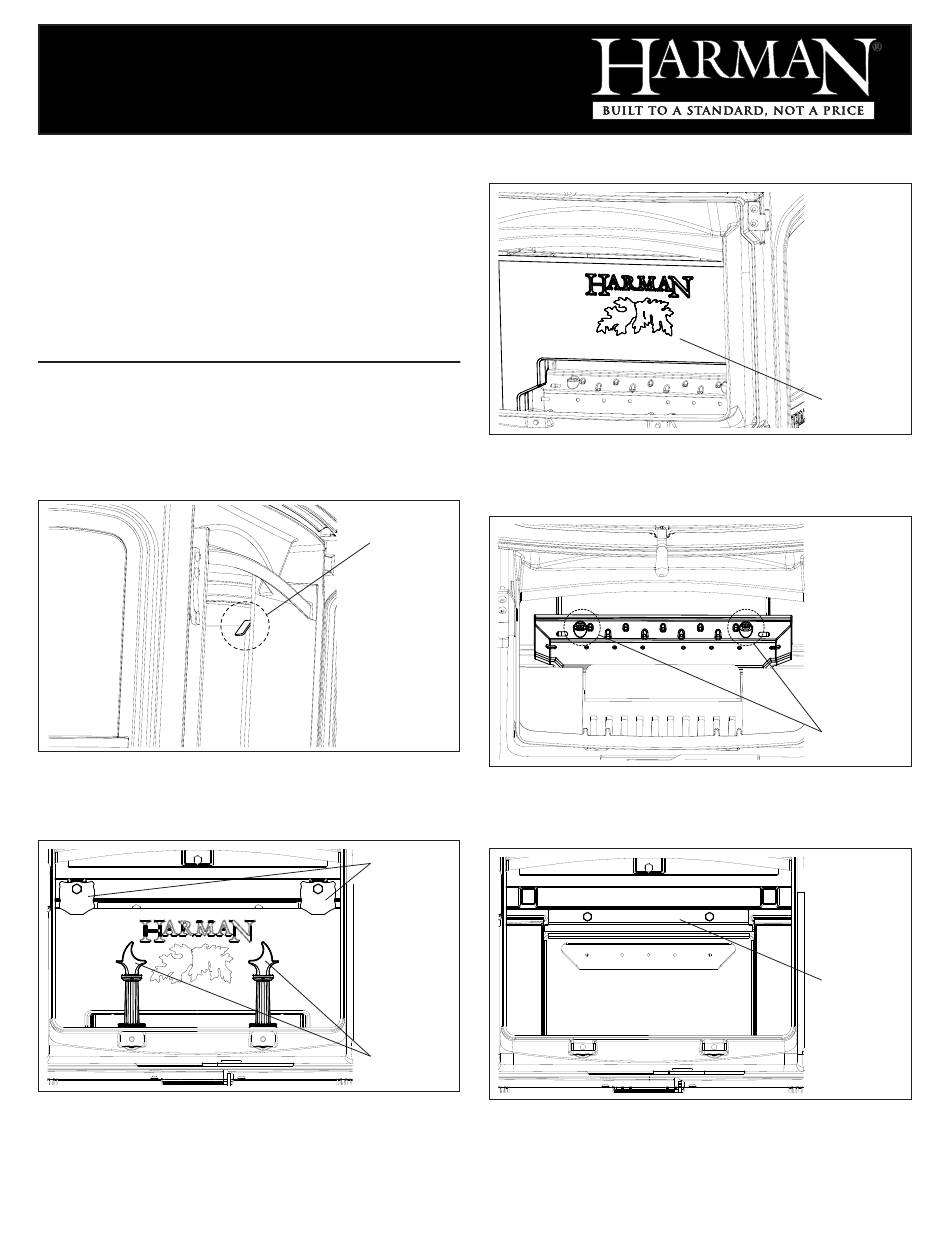

1. Remove (2) front upper brick clips located at each front
corner of the firebox and remove side bricks. Figure 1.
Figure 1
2. Remove the (2) andirons along with (2) rear brick clips
located at the top corners of the center brick. Figure 2.
Figure 2
1
3. Remove the decorative center brick. Figure 3.
Figure 3
4. Remove (2) 1/4"-20 x 3" cap screws and remove the
shoe brick. Figure 4.
Upper Brick
Clip
Figure 4
5. Remove (2) 1/4"-20 x 1/2" bolts and remove the center
seal plate. Figure 5.
Rear Brick
Clip
Andirons
Figure 5
Center
Brick
1/4"-20 x 3"
Cap Screws
Center
Seal Plate
3-89-797022_R2 • 10/17
