installation & operating Manual

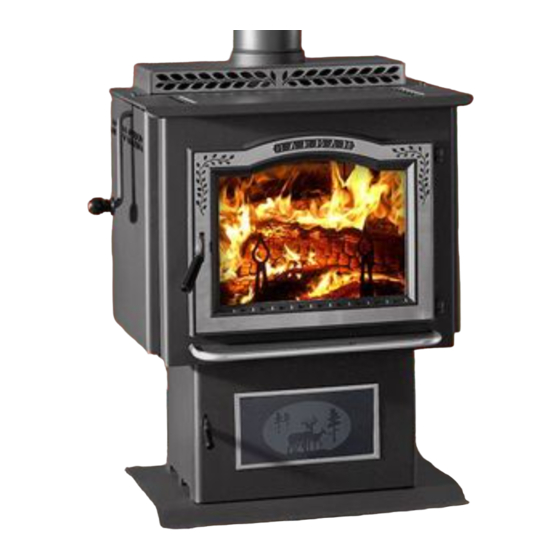

The TL300 Top Loading Wood Stove
EPA Certified by
r7
OMNI-Test Laboratories
SaFeTY noTice
PLeaSe read ThiS enTire ManuaL beFore You inSTaLL and uSe Your neW rooM heaTer. FaiLure
To FoLLoW inSTrucTionS MaY reSuLT in ProPerTY daMage, bodiLY injurY, or even deaTh.
For uSe in The u.S. and canada. SuiTabLe For inSTaLLaTion in a MobiLe hoMe(uS onLY).
iF ThiS Wood-burning STove iS noT ProPerLY inSTaLLed, a houSe Fire MaY reSuLT. For Your SaFeTY,
FoLLoW inSTaLLaTion direcTionS.
conTacT LocaL buiLding or Fire oFFiciaLS abouT reSTricTionS and inSTaLLaTion inSPecTion
reQuireMenTS in Your area.
conTacT Your LocaL auThoriTY (Such aS MuniciPaL buiLding deParTMenT, Fire deParTMenT, Fire
PrevenTion bureau, eTc.) To deTerMine The need For a PerMiT.
ceTTe guide d'uTiLiSaTion eST diSPonibLe en FrancaiS. chez voTre conceSSionnaire de harMan
hoMe heaTing.
Save TheSe inSTrucTionS.
# 3-90-06901
Advertisement
Table of Contents
Related Manuals for Harman TL300
Summary of Contents for Harman TL300
-
Page 1: Safety Notice
To FoLLoW inSTrucTionS MaY reSuLT in ProPerTY daMage, bodiLY injurY, or even deaTh. For uSe in The u.S. and canada. SuiTabLe For inSTaLLaTion in a MobiLe hoMe(uS onLY). iF ThiS Wood-burning STove iS noT ProPerLY inSTaLLed, a houSe Fire MaY reSuLT. For Your SaFeTY, FoLLoW inSTaLLaTion direcTionS. - Page 2 Harman TL300...
-
Page 3: Table Of Contents
Please read this entire manual before you install and use your new heating appliance. Failure to follow instructions may result in property Harman TL300 index Introduction Specifications Installation Venting Operation/Building a Fire 16 Maintenance Options Service Parts Warranty damage, bodily injury, or even death. -
Page 4: Introduction
IR coated glass and the exclusive Harman Air Wash System. The Harman TL300 has an ash pan with its own ash door which allows removal of ashes while the stove is in operation. This means you can keep a fire all winter if you desire. -
Page 5: Specifications
MaY reSuLT. For Your SaFeTY, FoLLoW The inSTaLLaTion direcTionS. conTacT LocaL buiLding or Fire oFFiciaLS abouT reSTricTionS and inSTaLLaTion inSPecTion reQuireMenTS in Your area. The Harman TL300 meets the U.S. Environmental Protection Agency’s emission limits for wood heaters sold after July 1, 1990. Harman TL300... - Page 6 Specifications Top Load Door Top Load Opening Front Load Door Grate Top Load Door Handle Andirons Air Control Ash Door Front Load Door Latch Ash Door Latch Harman TL300...
-
Page 7: The Stove
(discussed later in this section). The glass used in your TL300 is manufactured to exact standards to withstand the high heat of the fire, but like all glass, it must be treated with common sense and care. -
Page 8: Floor Protection
US only. Mobile Home installation should be done in accordance with the Manufactured Home and Safety Standard (HUD), CFR 3280, part 24. When installing the TL300 in a mobile home, several requirements must be met: 1. The unit must be bolted to the floor. This can be done through the rear of the pedestal with 3"... - Page 9 (425 mm) corner installation with Single and double Wall Pipe 18" 27" (450 mm) (675 mm) (675 mm) (450 mm) Harman TL300 installation/clearances 15"* 375 mm 31" (50 mm) (775 mm) Top Vent to vented out side wall with 90 elbow 23"...
-
Page 10: Chimney Connectors
When installed and operated according to this manual, the TL300 will produce enough hot gases to keep the chimney warm so that adequate draft is maintained throughout the burn cycle. -
Page 11: The Chimney
PASS-THROUGH The chimney The TL300 must be installed into a chimney approved for use with solid-fuel appliances. In the U.S., the TL300 must be connected to (1) a prefabricated chimney complying with the requirements for Type HT chimneys in the Standard for Chimneys, Factory-Built, Residential Type and Building Heating Appliances, UL 103, or (2) a code-approved masonry chimney with a flue liner. - Page 12 In some situations, a code compliant chimney origi- nally used for a masonry fireplace may be used to install your TL300. In addition to the requirements found in the previous paragraphs, it is important to be aware that all clearances must be met, including those from the chimney connector to combustibles.
- Page 13 Standard ceiling installation with cathedral ceiling installation with Factory built chimney Factory built chimney Harman TL300...
- Page 14 Minimum of three Sheet Metal Screws per joint of chimney connector Mantel and Trim Protection Floor Protection* combustible Floor * Floor Protection in accordance with Solid Fuel appliance Listing Harman TL300 venting damper closed and Sealed with non-combus- tible Material. airtight...
- Page 15 2" clearance for nFPa 211- Type approved Thimbles Floor Protection* combustible Floor * Floor Protecion in accordance with Solid Fuel appliance Listing ** check with your local building codes for clearance. Harman TL300 venting 15"** combustible Wall Sheetrock Mantel &...
-
Page 16: The Combustion Process
The combustion Process Combustion in the Harman TL300 is precisely controlled and is divided into two parts. During combustion, primary air enters at the bottom front of the stove and travels up channels at either side of the front door. This pre-heated air... -
Page 17: Air Control
For medium burns, use notches 2 or 3. Maximum heat is attained with the air control all the way to the right. do not burn the stove con- tinuously at the maximum setting. if maximum heat is required day after day, the stove is too small for the area you are trying to heat and damage will occur to the stove. - Page 18 The TL300 was designed to allow access to the ash pan without the need for opening the main door. Before opening the ash door and removing the ash pan, open the bypass damper.
-
Page 19: Maintenance
Like all fine equipment, your TL300 requires some routine maintenance and inspection. Follow the guidelines in this section to assure safe, efficient operation. The Stove Surface The stove’s exterior surface should be dusted periodically with a soft cloth. For more thorough cleaning, wait until the stove is cool before using a damp cloth to clean any blemishes. -
Page 20: The Chimney System
As a result, creosote accumulates on the flue lining. When ignited, this creosote can result in an extremely hot fire. The FireDome on the TL300 cuts creosote to almost nothing when properly burned with dry seasoned wood. The chimney should be inspected at least once every two months during the heating season to see if any creosote build-up has occurred. -
Page 21: Options
Surfaces will be hot enough to cause physical harm. cozy Screen- #3-40-06960 Your Harman TL300 can be burned like a fireplace with the optional Cozy Screen. The Cozy Screen can be used with either the door in place or with the door removed from the stove. -
Page 22: Service Parts
1-90-06900-3 (goldenfi re) (ending Manufacturing date: june 2011) 1-90-06900-4 (Metallic blue) (ending Manufacturing date: jan 2010) Part number list on following page. Service Parts Wood Stove 1-90-06900-1 (black), retired units 1-90-06900-5 (honey glo) (ending Manufacturing date: june 2009) 1-90-06900-10 (Mojave red) (ending Manufacturing date: jan 2010) 1-90-06900-12 (Forest green) (ending Manufacturing date: jan 2010) beginning Manufacturing date: aug. - Page 23 Pkg of 100 Pkg of 100 15 Ft 30 Ft Pkg of 4 Pkg of 25 Pkg of 100 5 Ft Pkg of 3 TL300 beginning Manufacturing date: aug. 2007 ending Manufacturing date: active Stocked at depot ParT nuMber 1-10-06928P 3-30-2001-50 2-00-06922L...
- Page 24 Pkg of 100 Pkg of 100 beginning Manufacturing date: aug. 2007 ending Manufacturing date: active ParT nuMber 1-00-06902 1-00-06903 17.3 2-00-06963B 1-10-06964W 1-10-06950W 18.7 18.8 3-31-500015 3-40-06956 1-10-06937W 2-00-06924-2 2-00-06923L 1-10-06916W 1-10-06918W 1-10-249146 1-10-08127 3-30-8020-100 3-30-3016-100 1-00-06901 TL300 Stocked at depot 02/12...
-
Page 25: Firebox Assembly
Manufacturing date: active 19.13 19.12 19.11 ParT nuMber 1-10-249106 1-00-249142 1-00-250153 1-10-249107 1-00-249145 1-00-00888 1-00-249153 1-10-249117A 3-40-00101 3-40-00103 1-00-06945 4-40-86125 3-40-86125 3-40-06944 2-00-06925B 3-40-00104 1-10-249118A 3-44-06951 3-40-00100 1-00-06900 1-00-08118 3-21-50757 2-00-05218P 3-30-1108-50 3-43-06948-7 3-43-4722386-7 3-43-06931-7 3-43-06729-7 3-31-232547-20 TL300 Stocked at depot 02/12... - Page 26 This page intentionally left blank. Harman TL300...
-
Page 27: Warranty
Hearth & Home Technologies Inc., on behalf of its hearth brands (”HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. WARRANTY COVERAGE: HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance will be free from defects in materials and workmanship at the time of manufacture. - Page 28 WARRANTY CONDITIONS: • This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. A list of HHT authorized dealers is available on the HHT branded websites. • This warranty is only valid while the HHT appliance remains at the site of original installation. •...
- Page 29 Harman TL300...
- Page 30 Harman TL300...
- Page 32 Proudly Printed On 100% Recycled Paper...
