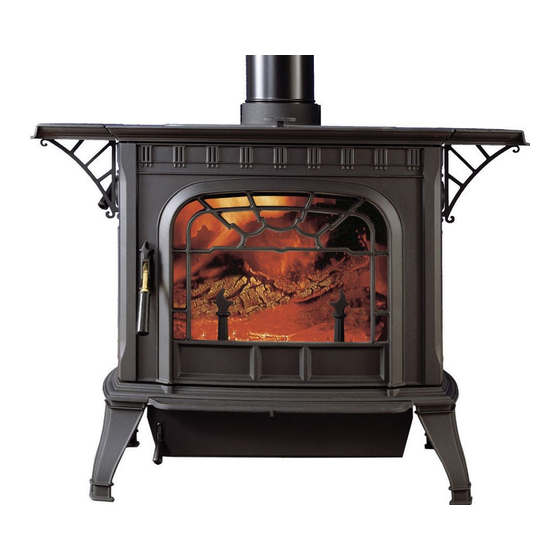

Harman Oakwood Installation & Operating Manual

Cast iron wood stove

Hide thumbs Also See for Oakwood:

Owner's manual (42 pages)

Installation & operating manual (36 pages)

Installation and operating manual (32 pages)

Table Of Contents

Table of Contents

Quick Links

saFetY notice

save these instructions.

hot surFaces!

Glass and other surfaces are hot during

operation and cool down.

hot glass will cause burns.

• Do not touch glass until it is cooled

• NEVER allow children to touch glass

• Keep children away

• CAREFULLY SUPERVISE children in same room as

stove.

• Alert children and adults to hazards of high temperatures.

high temperatures may ignite clothing or other

flammable materials.

• Keep clothing, furniture, draperies and other flammable

materials away.

To obtain a French translation of this manual, please

contact your dealer or visit www.harmanstoves.com

Pour obtenir une traduction française de ce manuel, s'il

vous plaît contacter votre revendeur ou visitez www.

harmanstoves.com

Contact your local dealer with questions on installation,

operation or service.

WARNING

note

3-90-08327R26_03/14

Table of Contents

Need help?

Do you have a question about the Oakwood and is the answer not in the manual?

Questions and answers

Summary of Contents for Harman Oakwood

Page 1: Safety Notice
Follow instructions MaY result in ProPertY daMage, bodilY injurY, or even death. For use in the u.s. and canada. the oakwood is not aPProved For Mobile hoMe installation. iF this harMan® stove is not ProPerlY installed, a house Fire MaY result. For Your saFetY, Follow installation directions.
Page 3: Table Of Contents
For Mobile hoMe installations Please read this entire manual before you install and use your new heating appliance. Failure to follow instructions may result in property damage, bodily injury, or even death. 352 Mountain House Road Halifax, PA 17032 U.S.A. Harman Oakwood 3-90-08327R26_03/14...
Page 4: Introduction
Harman® Air Wash System. The Harman® Oakwood has an ash pan with its own ash door that is used to remove ashes while the stove is in operation. This means you can keep one fire all winter if you desire.
Page 5: Specifications
30 1/4" 24.75” The Harman® Oakwood meets the U.S. Environmental Protection Agency’s emission limits for wood heaters sold after July 1, 1990. Weight ........470 lbs Flue Size .
Page 6 Top Load Door Optional Cooking Grill Top Load Opening Bypass Damper Control Handle Front Load Door Grate Andirons Front Load Door Latch Air Control Ash Door Ash Door Latch Harman Oakwood 3-90-08327R26_03/14...
Page 7: The Stove
Before you install and operate your Oakwood wood stove, please Your stove has a large glass-paneled door for loading and read the entire contents of this manual. Pay particular attention fire viewing, a separate smaller door for removing ashes and to the explanation of draft and its effect on stove performance in a top loading door.
Page 8 Two important controls - the damper bypass handle and the air control lever regulate the operation and output of the stove. Combustion in the Harman® Oakwood is precisely controlled To open the top or front loading door, you must open the and is best explained in two parts.
Page 9: Operations / Building A Fire
always wear gloves when building a Fire do not burn wet wood! operating the stove. Do not use chemicals or fluids to start the fire. Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar liquids to start or “freshen up”...
Page 10 CAUTION the grate to overheat and wear out prematurely. The Oakwood was designed to provide access to the ash pan never leave the stove unattended if either the ash or without the need for opening the main door. Before opening load door is open.
Page 11: Installation
Floor Protection requirements Parallel versus corner installations The Oakwood must be installed on a non-combustible floor A parallel installation is one in which the back and sides of or a non-combustible floor protector. Floor protection, when the stove are parallel to the walls behind and to the side of not using the optional bottom heat shield, must be a minimum the stove.
Page 12 21" 25" See NFPA 211 for more installation clearance reductions when using USM wall protection, etc. Harman Oakwood 3-90-08327R26_03/14...
Page 13 See NFPA 211 for more installation clearance reductions when using USM wall protection, etc. Harman Oakwood 3-90-08327R26_03/14...
Page 14 See NFPA 211 for more installation clearance reductions when using USM wall protection, etc. Harman Oakwood 3-90-08327R26_03/14...
Page 15 2.75" (70mm) NOTICE: Not for use in factory built fireplaces with hearth If the fireplace floor can hold the 500 lb. (250 kg) Oakwood, weight limitations. the stove should only be placed into the fireplace opening to the point that operation of the damper bypass control and The Oakwood should not be installed into a factory built the top load door operation is not compromised or unsafe.
Page 16: Venting
When installed and operated according to this manual, the with local authorities before beginning your installation. Oakwood will produce enough hot gases to keep the chimney warm so that adequate draft is maintained throughout the The NFPA (National Fire Protection Agency) permits four burn cycle.
Page 17: The Chimney
Heating Appliances, UL 103, or (2) a code-approved masonry exceptions may be made. be sure to contact your chimney with a tile flue liner. In Canada, the Oakwood is listed building code inspection official to see if this option for use with prefabricated chimneys tested and listed to the...
Page 18 In some situations, a code compliant chimney originally used must be allowed to enter the chimney. Kaowool, mineral wool for a masonry fireplace may be used to install your Oakwood. or equivalent non-combustible insulation may be installed on In addition to the requirements found in the previous top of the plate to help minimize condensation.
Page 19 WARNING the harman oakwood was tested with fuel door open ® and closed. keep door closed for normal operating conditions. do not install in sleeping room. if you operate with doors open, open the by-pass and put a screen over the opening.
Page 20 Flashing roof radiation roof Factory-built shield radiation Metal chimney shield attic sealed storm collar radiation roof Flashing shield cathedral style chimney support Minimum air space chimney with chimney Finishing support listing collar chimney connector chimney connector Harman Oakwood 3-90-08327R26_03/14...
Page 21 Combustible Floor *Floor protection in accordance with Solid Fuel Appliance Listing the chimney connector shall not Pass through an attic or roof space, closet or similar concealed space, a Floor or ceiling. Harman Oakwood 3-90-08327R26_03/14...
Page 22 Flue Fireplace conversion (Minimum nFPa 211 liner connection) Flue liner with required air space airtight insulated clean-out stainless steel chimney connector Must extend to Flue liner Minimum 8" Masonry thickness in Front of smoke chamber use damper adapter...
Page 23 Fireplace trim Protection for reduced clearance damper Plate removed or Fastened in open Position use damper adapter or seal with non- combustible Material Floor Protection* combustible Floor *Floor Protection in accordance with solid Fuel appliance listing Harman Oakwood 3-90-08327R26_03/14...
Page 24 * Floor Protection in accordance with solid Fuel appliance listing * Floor protection in accordance with Solid Fuel Appliance Listing ** check with your local building codes for clearance. ** Check with your local building codes inspector for clearance. Harman Oakwood 3-90-08327R26_03/14...
Page 25: Maintenance
If falling down onto and around the combustion package. This any bricks have been damaged, replace them with Harman® also protects the top of the combustion package from tool replacement parts.
Page 26 Also clean The FireDome on the Oakwood cuts creosote to almost any other surfaces that come into contact with the gasket. nothing when properly burned with dry seasoned wood.
Page 27: Options
Check with your local building inspector to find out may cause serious harm. requirements determining if outside air is needed when installing the Oakwood in your area. Some signs to watch for warming shelves that indicate a possible need for outside air: poor performance...
Page 28  service Parts beginning Manufacturing date: n/a cast iron stove ending Manufacturing date: active 1-90-02490-1 (black) retired units 1-90-02490-2 (charcoal) (ending Manufacturing date: june 2011) 1-90-02490-12 (Forest green) (ending Manufacturing date: jan 2010) 1-90-02490-3 (goldenfi re) (ending Manufacturing date: june 2011)
Page 29: Service Parts
Parts beginning Manufacturing date: n/a ending Manufacturing date: active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or stocked hearth and home technologies does not sell directly to consumers distributor. . Provide model number and serial number when requesting service parts from your dealer or distributor.
Page 30 Parts beginning Manufacturing date: n/a ending Manufacturing date: active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or stocked hearth and home technologies does not sell directly to consumers distributor. . Provide model number and serial number when requesting service parts from your dealer or distributor.
Page 31 Parts beginning Manufacturing date: n/a ending Manufacturing date: active #32 Firebox assembly 32.4 32.1 32.5 32.3 32.6 32.2 32.7 32.11 32.9 32.10 32.8 32.12 IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or...
Page 32: Warranty
hearth & home technologies liMited liFetiMe warrantY Hearth & Home Technologies, on behalf of its hearth brands (”HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. warrantY coverage: HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance...
Page 33: Warranty Conditions
warrantY conditions: • This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. A list of HHT authorized dealers is available on the HHT branded websites. • This warranty is only valid while the HHT appliance remains at the site of original installation. •...
Page 34 Maintenance log Date Of Service Performed By Description Of Service Harman Oakwood 3-90-08327R26_03/14...
Page 35 Harman Oakwood 3-90-08327R26_03/14...
Page 36 At Harman®, we build each product to a standard, not a price. This powerful heating appliance boasts uncompromising attention to detail and helps preserve our planet by using environmentally responsible fuels. (Signature of Boxer) Your premium quality hearth product designed and assembled by the experienced and skilled members at Harman®...
