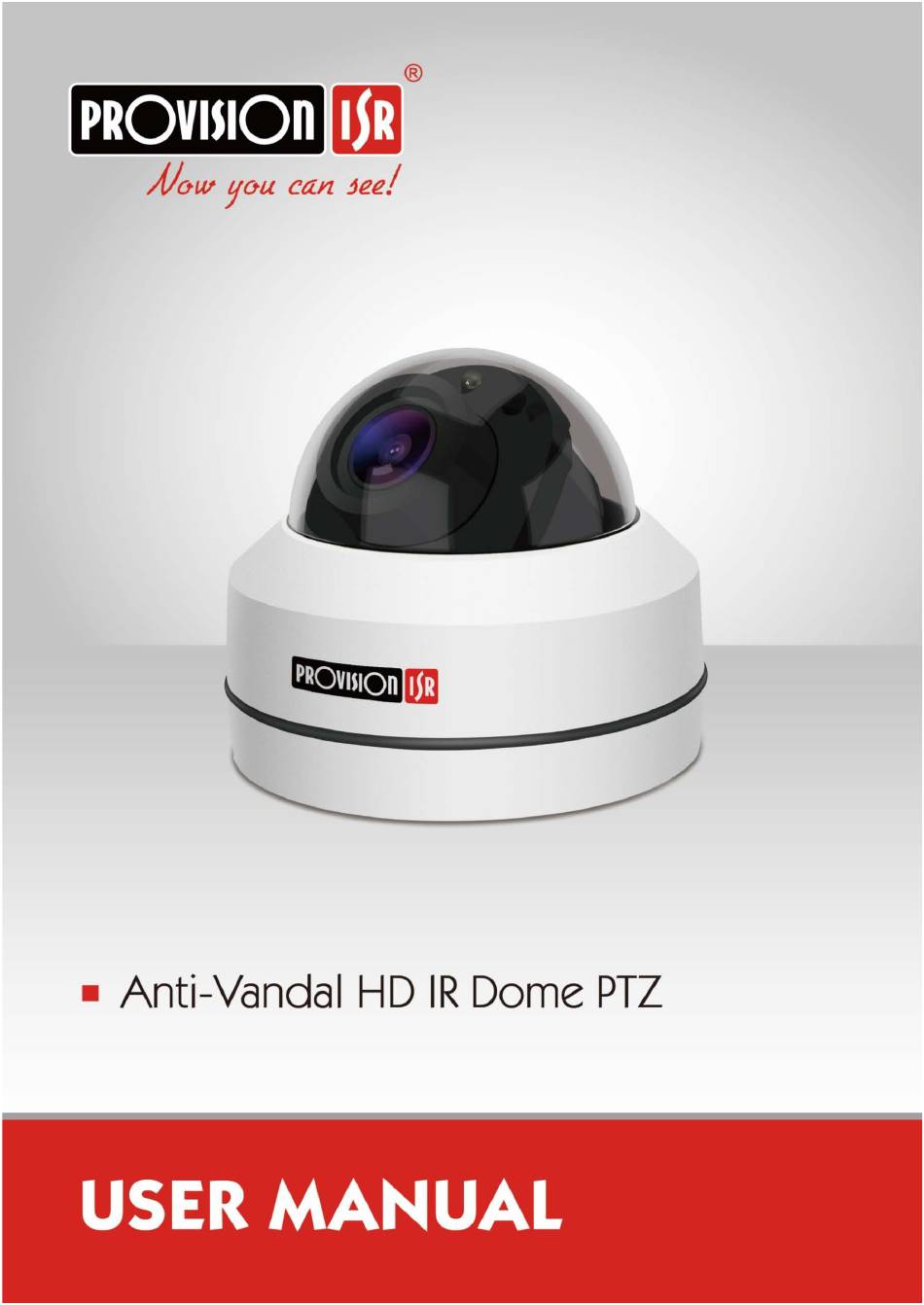

- Page 1 DAIPT-390AX4 USER MANUAL for DAIPT-390AX4...
-
Page 2: Important Safety Notes

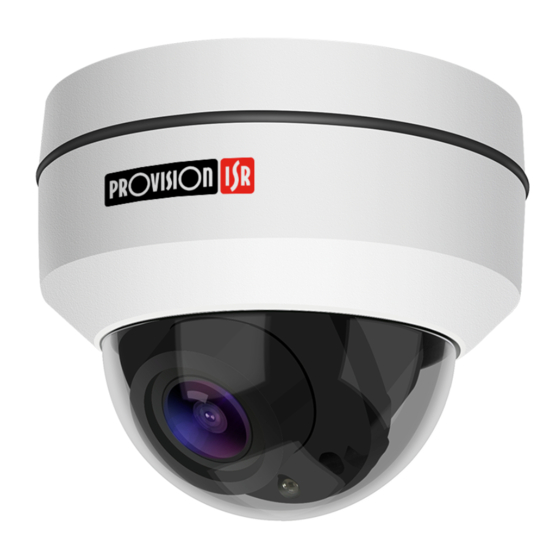

DAIPT-390AX4 USER MANUAL 1080P 4in1 Dome MINI PTZ CAMERA QUICK INSTALLATION GUIDE 1. Important Safety Notes: Please read this manual carefully before installing and operating the camera. Please refer to the technical specs to confirm you are using a suitable power supply. Do ... -
Page 3: Device Installation
DAIPT-390AX4 USER MANUAL Video Connector 4in1 1080P Video Output Power Connector 12V DC Power Input (2A Recommended) Signal output selection DIP switch Picture 2-1: Cable Reference 4. Device Installation: The camera is for a ceiling installation ! (If wall installation is required, please purchase wall bracket) Please refer to the installation instructions below. - Page 4 DAIPT-390AX4 USER MANUAL 1) Do not adjust the camera’s orientation manually. This might damage the device. 2) Pay attention to install the blind area of the camera toward to the corner or not important area. 5. Camera Settings & Preset Commands: In this camera, the CoC commands divides to 2.
- Page 5 DAIPT-390AX4 USER MANUAL 6. Technical Specs: Model DAIPT-390AX4 Image sensor 1/2.9” CMOS HD Analog 2MP(AHD/CVI/TVI-1920*1080) Resolution Analog 700TVL Optical Zoom X4 (2.8mm-12mm) Digital Zoom Horizontal Angle of view 106°~51.8° Sync System Internal Min. Illumination 0.01lux(0lux with IR On) Day & Night...
