2.3
Program Use
How to get started.
1. Connect the Wireless board assembly, with the Performance Analyzer FW programmed, to the PC USB
connector and power on, a COM port should now be available for the kit.
2. Power on any other wireless node assemblies of similar frequency, running the Performance Analyzer FW,
and use it as a reference.

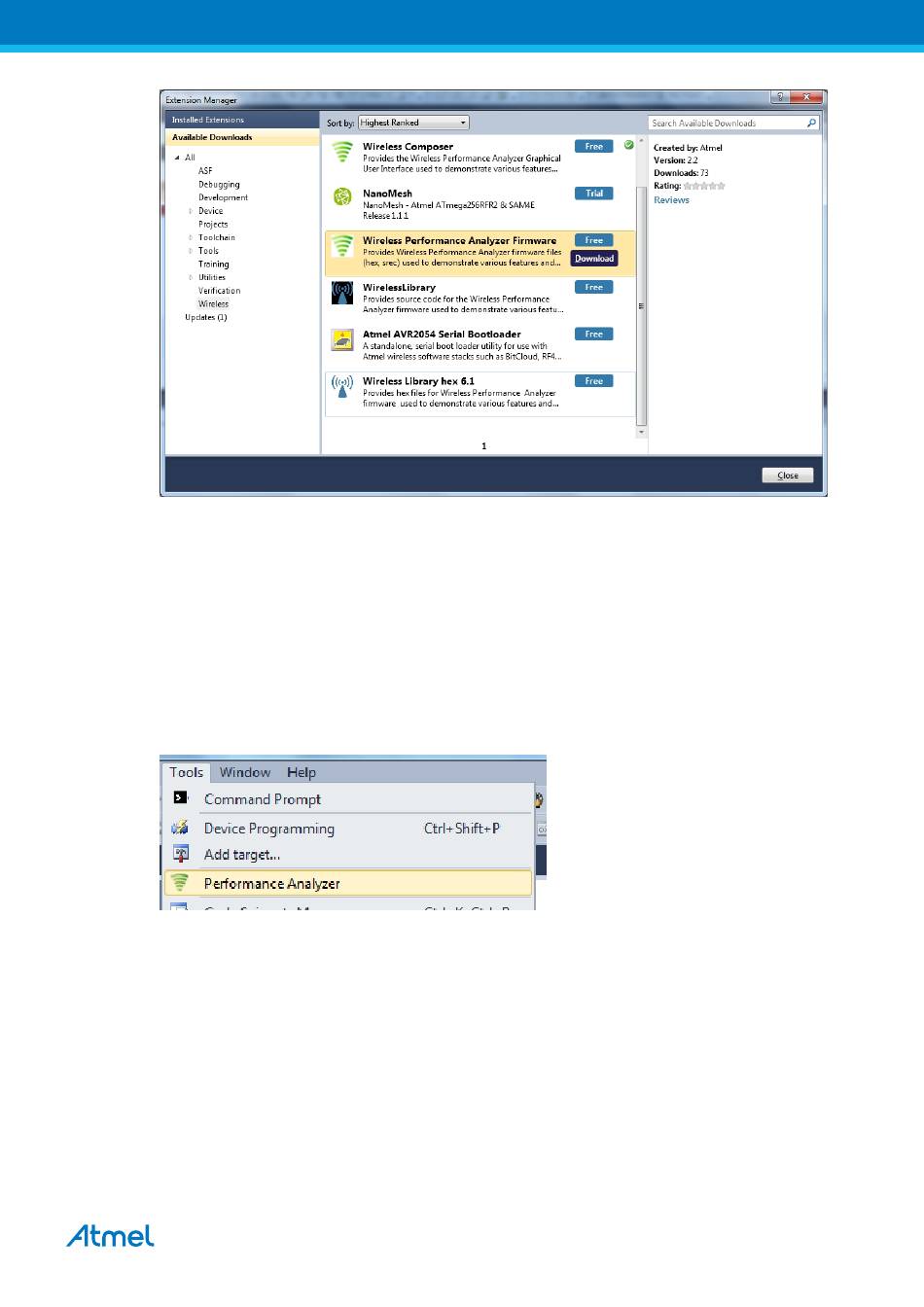

3. Start Performance Analyzer GUI, connect to the kit via the COM port and follow the quick start guide.
2.4
Typical Wireless Nodes
Typical board assembly.
The Atmel SAM4L Xplained Pro Evaluation Kit with Wireless Extension and remote node consisting of a
Wireless extension board and a battery pack.
REB233-XPRO User Guide [USER GUIDE]
7
42188A-MCU-11/2013
